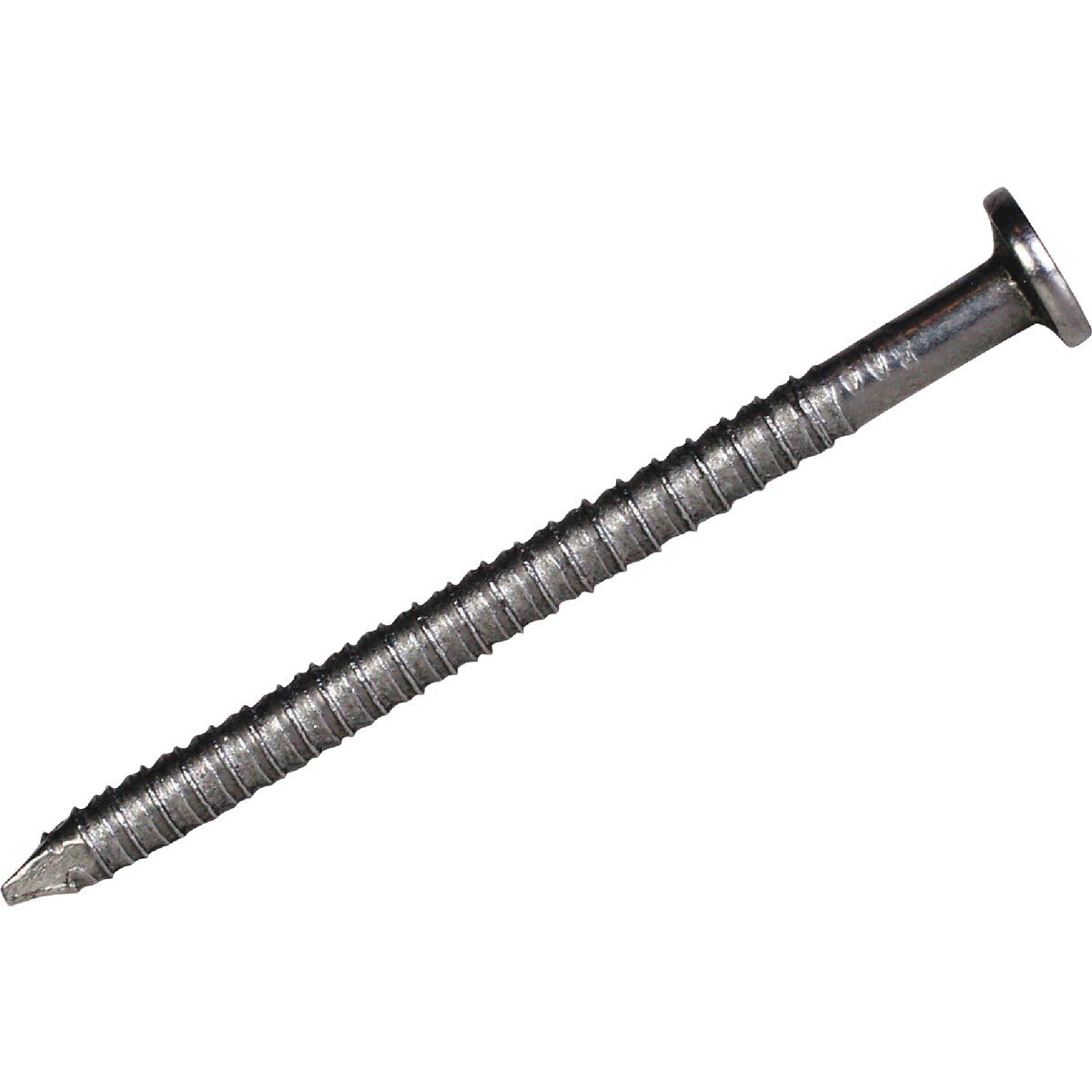

Maze Nails F142112 Ring Shank Underlayment Nails 1-1/4 in 14 Ga 528 Ct

Product Description

The MAZE NAILS F142112 is a 1-1/4 inch, 14-gauge ring shank nail designed for underlayment, sheathing, and sub-floor fastening applications. The ring shank profile increases withdrawal resistance compared to smooth-shank alternatives, making it well suited for high-stress structural connections in wood floor assemblies. Each box contains 528 nails and weighs approximately 1 pound, providing a manageable quantity for residential flooring jobs. The regular steel shank construction delivers consistent performance in standard wood substrates. Flooring contractors and carpenters are the primary installers of this fastener type.

These ring shank nails are recommended by plywood producers for use in underlayment, roof and wall sheathing, and sub-floor panel attachment. They are suited for residential construction and remodel work where panel products require secure, low-creep fastening to wood framing or joists. The 1-1/4 inch length is typical for single-layer underlayment panels over an existing subfloor, and the 14-gauge diameter provides sufficient shear strength for these applications without splitting thinner panel edges.

Key Features

• Ring shank profile increases holding power and withdrawal resistance versus smooth-shank nails
• 1-1/4 inch length suited for single-layer underlayment and sheathing fastening
• 14-gauge regular steel shank for consistent strength in standard wood substrates
• Recommended by plywood producers for underlayment, sheathing, and sub-floor use
• 528-count box packaged at approximately 1 pound for easy jobsite handling

Compatibility

Designed as an OEM-style fastener for use with residential plywood and panel underlayment, sheathing, and sub-floor applications as recommended by plywood panel producers.

Installation Notes

Installation is typically performed by flooring contractors or carpenters using a hand hammer or pneumatic nailer rated for the appropriate nail gauge and length. Follow fastener spacing patterns specified by the panel manufacturer and applicable building codes. Ensure substrate framing members are dry and properly aligned before fastening to prevent panel buckling. Do not overdrive nails, as countersinking beyond the panel face can reduce holding capacity in underlayment assemblies.

Technical Specifications

• Nail Length: 1-1/4 inches
• Gauge: 14
• Shank Type: Ring Shank
• Material: Regular Steel
• Count per Box: 528
• Package Weight: 1.112 pounds
• UPC: 00098342000796

Standard Information

• Brand: MAZE NAILS
• Manufacturer Part Number: F142112
