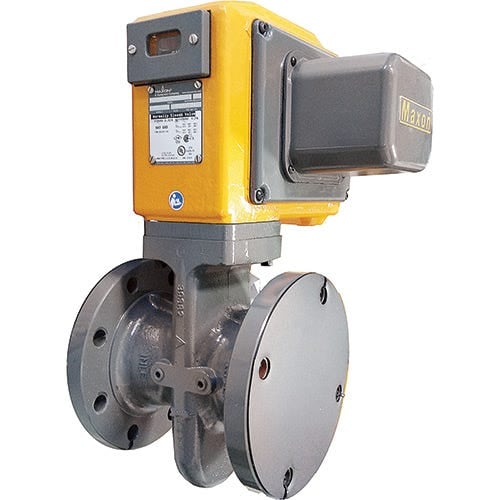

Maxon 400HMA11BA11BB32A0 Safety Shut-Off Valve 4 inches Flanged

Product Description

The Maxon 400HMA11BA11BB32A0 is a normally closed electromechanical safety shut-off valve suitable for natural gas applications. This valve has a size of four inches and a flanged ANSI connection. The design ensures reliable operation with a maximum operating pressure differential of sixty PSIG.

• Normally Closed
• Electromechanical
• Automatic Reset

Product Highlights

This valve is ideal for industrial setups requiring dependable gas shut-off functionalities.

Product Information

Standard Information

• Valve Size: 4 inches (DN100)
• Connection: ANSI Flanged

Technical Specifications

• Valve Cv: 719
• Max Operating Pressure Differential: 60 PSIG
• Body Material: NEMA 4 General Purpose Cast Iron
• Seat Material: 400 Stainless Steel
• Disc Material: Hardened Ductile Iron
• Follower Ring Material: PEEK
• O-Rings and Bumper Material: Buna N
• Actuator Motor: 115 VAC/60 Hz
• Timing: 12 Seconds
• Switches: Two Proof-of-Open Switches, Two Proof-of-Closure Switches
• Assembly Position: Right Top
