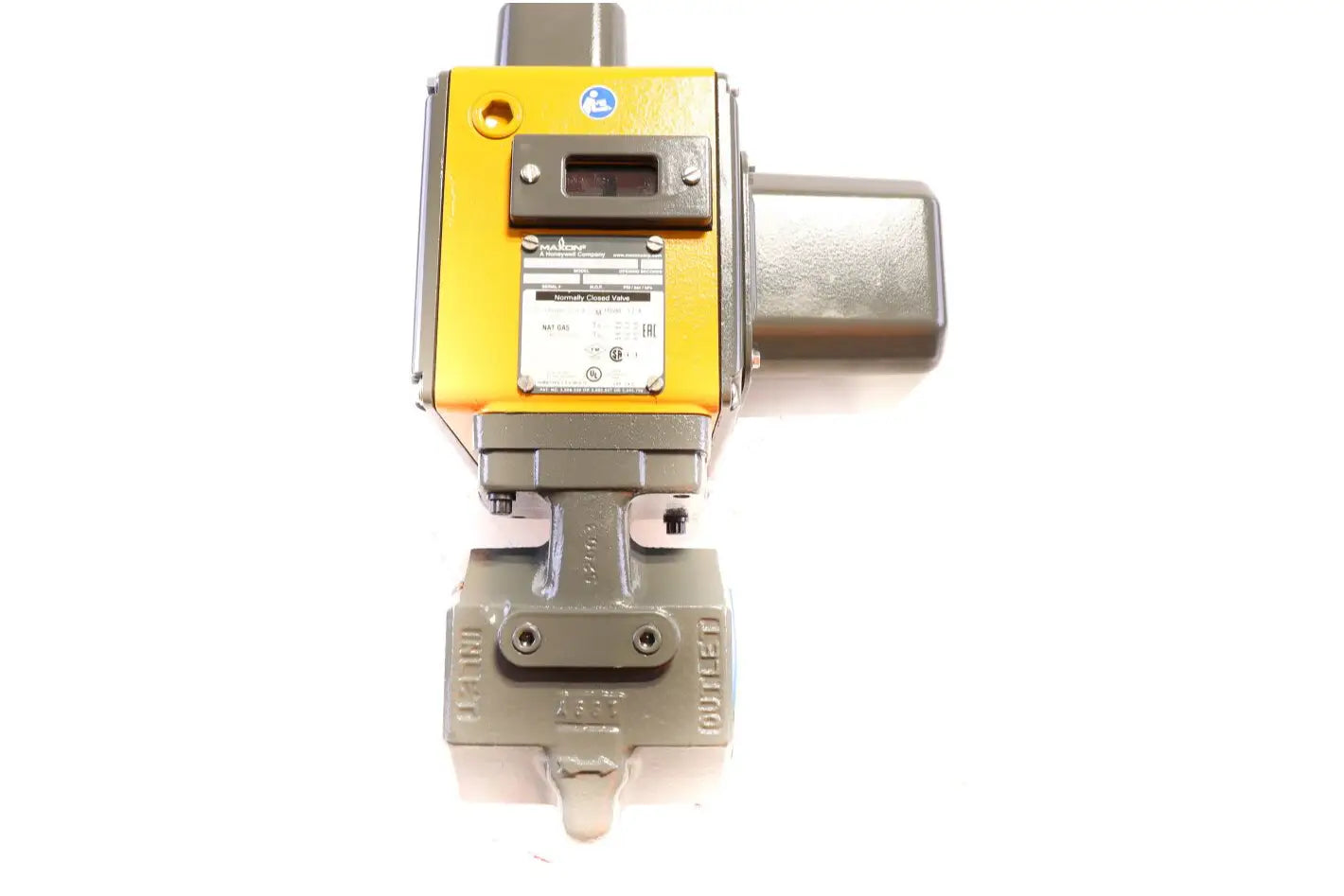

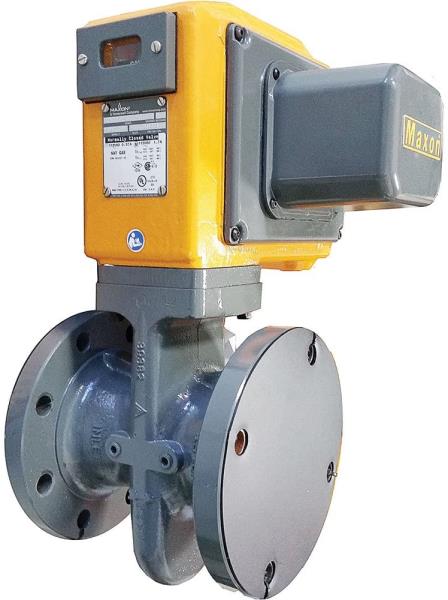

Maxon 300CMA11BA11BB22A0 Gas Valve 3 Inch ANSI Flanged

Product Description

The Maxon 300CMA11BA11BB22A0 gas valve is a 3-inch ANSI flanged valve that operates on a 115-volt power supply. This valve includes specific configurations V0S2 and VCS2. It is designed as a 2-way normally closed valve with CP Port Flow Capacity and features auto-reset functionality.

• 3 Inch ANSI Flanged Connection
• 115Vac 60Hz Solenoid and Motor Voltage
• NEMA 4 Enclosure Rating

Product Highlights

It is suitable for natural gas service, providing a reliable shutoff with automatic reset. The valve operates with a six-second motor timing and features Buna body O-rings and bumper for durability.

Product Information

Standard Information

• Manufacturer: Maxon
• Part Number: 300CMA11BA11BB22A0

Technical Specifications

• Valve Size: 3 inches (DN80)
• Connection: ANSI Flanged
• Valve Cv: 423
• Max Operating Pressure Differential: 40 PSIG
• Body: NEMA 4 General Purpose Cast Iron
• Seat: 400 Stainless Steel
• Disc: Hardened Ductile Iron
• Follower Ring: PEEK
• O-Rings and Bumper: Buna N
• Actuator Motor: 115 VAC/60 Hz
• Timing: 6 Seconds
• Switches: Two Proof-of-Open Switches, Two Proof-of-Closure Switches
• Assembly Position: Right Top
• Solenoid Voltage: 115Vac 60Hz
• Motor Voltage: 115Vac 60Hz
• Enclosure Rating: NEMA 4
