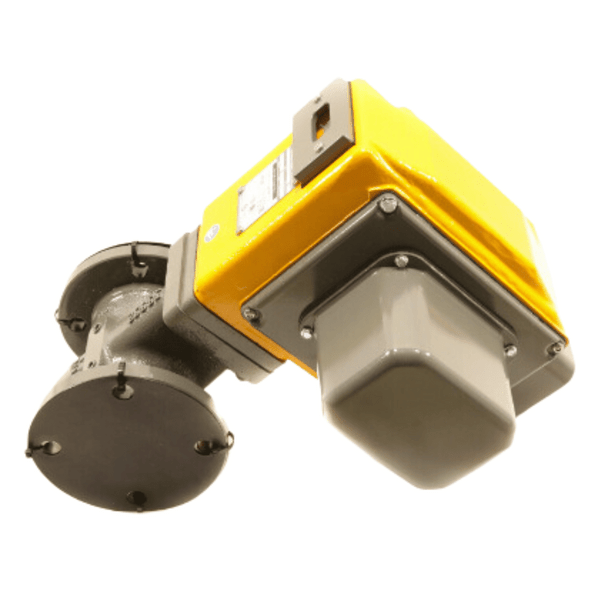

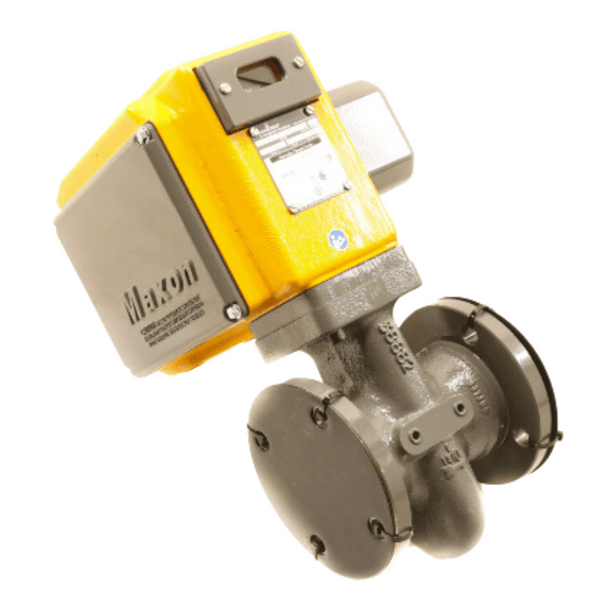

MAXON 250CMA11BA11BB22A0 Gas Valve 2 1/2 inch

Product Description

The MAXON 250CMA11BA11BB22A0 is a gas valve sized at 2 1/2 inches with an ANSI flanged connection. This 2-way normally closed valve is suitable for general purpose applications. It features a robust cast iron body and uses Buna body O-rings and a bumper for added durability. The valve operates with a 115Vac 60Hz solenoid, ensuring efficient motor voltage operation. It provides safety and reliability with its auto-reset functionality and a 6-second motor timing.

• ANSI flanged connection for easy installation
• NEMA 4 enclosure rating for protection
• Auto-reset feature enhances operational safety

Product Highlights

This gas valve is ideal for a variety of applications requiring dependable performance and ease of use.

Product Information

Standard Information

• Valve Size: 2 1/2 inches
• Connection Type: ANSI Flanged

Technical Specifications

• Port Flow Capacity: CP Port Flow Capacity
• Reset Type: Auto-reset
• Valve Type: 2 Way Normally Closed
• Application: General Purpose
• Body Material: Cast Iron Body
• O-rings and Bumper: Buna Body O-rings and Bumper
• Solenoid Voltage: 115Vac 60Hz
• Motor Voltage: 115Vac 60Hz
• Motor Timing: 6 Seconds
• Switch Options: VOS2/VCS2
• Enclosure Rating: NEMA 4
