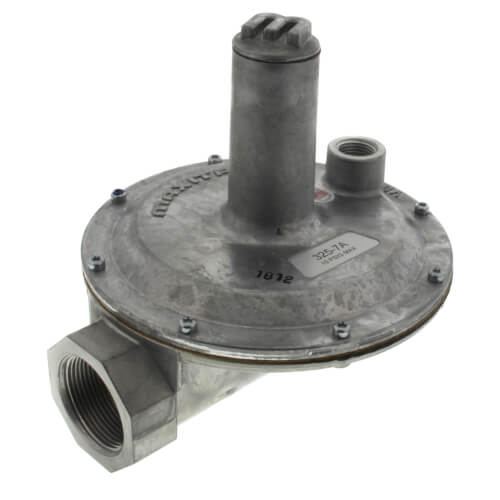

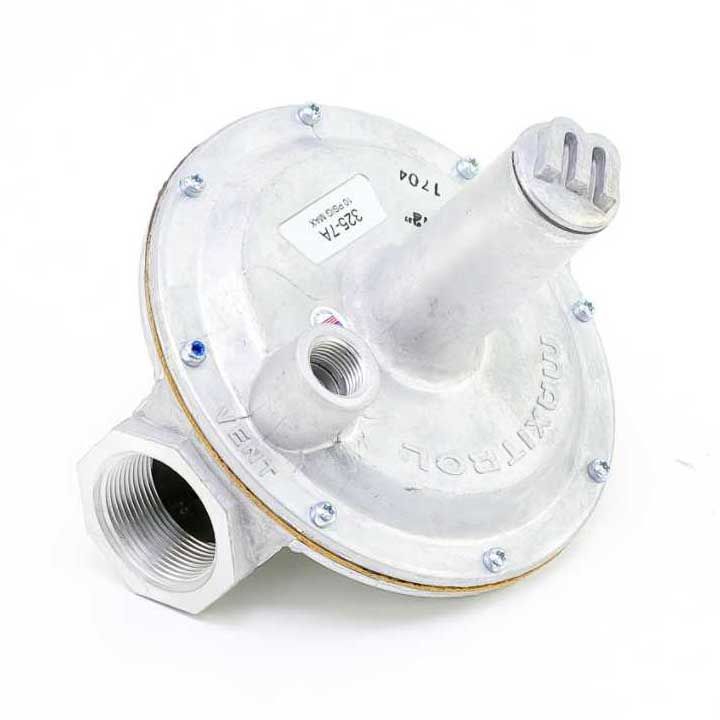

Maxitrol 325-7A-112 Gas Pressure Regulator 1-1/2 in NPT 10 psi Maxitrol Tested

Product Description

The Maxitrol 325-7A-112 is a reliable gas pressure regulator designed for precise pressure regulation in various industrial and commercial applications. It features a 1-1/2 inch NPT connection, with a maximum inlet pressure of 10 psi. This regulator can handle a maximum capacity of 1,250,000 BTU/hr.

• Precise pressure control
• High leverage valve linkage
• Robust and reliable performance

Product Highlights

This Maxitrol regulator is suitable for use with natural gas, liquefied petroleum gases, and LP gas-air mixtures. It provides positive dead-end lockup and is suitable for multi-positional mounting.

Product Information

Standard Information

• Brand: Maxitrol
• Model: 325-7

Technical Specifications

• BTU Rating: 1,250,000 Btu/hr
• Connection Size: 1-1/2 in
• Connection Type: NPT
• Dimension: 8 in W x 7.3 in H
• Material: Aluminum
• Pressure Rating: 10 psi Maxitrol Tested, 2 psi LP, 5 psi Natural
• Temperature Rating: -40 to 205 deg F
• Type: Lever Acting
