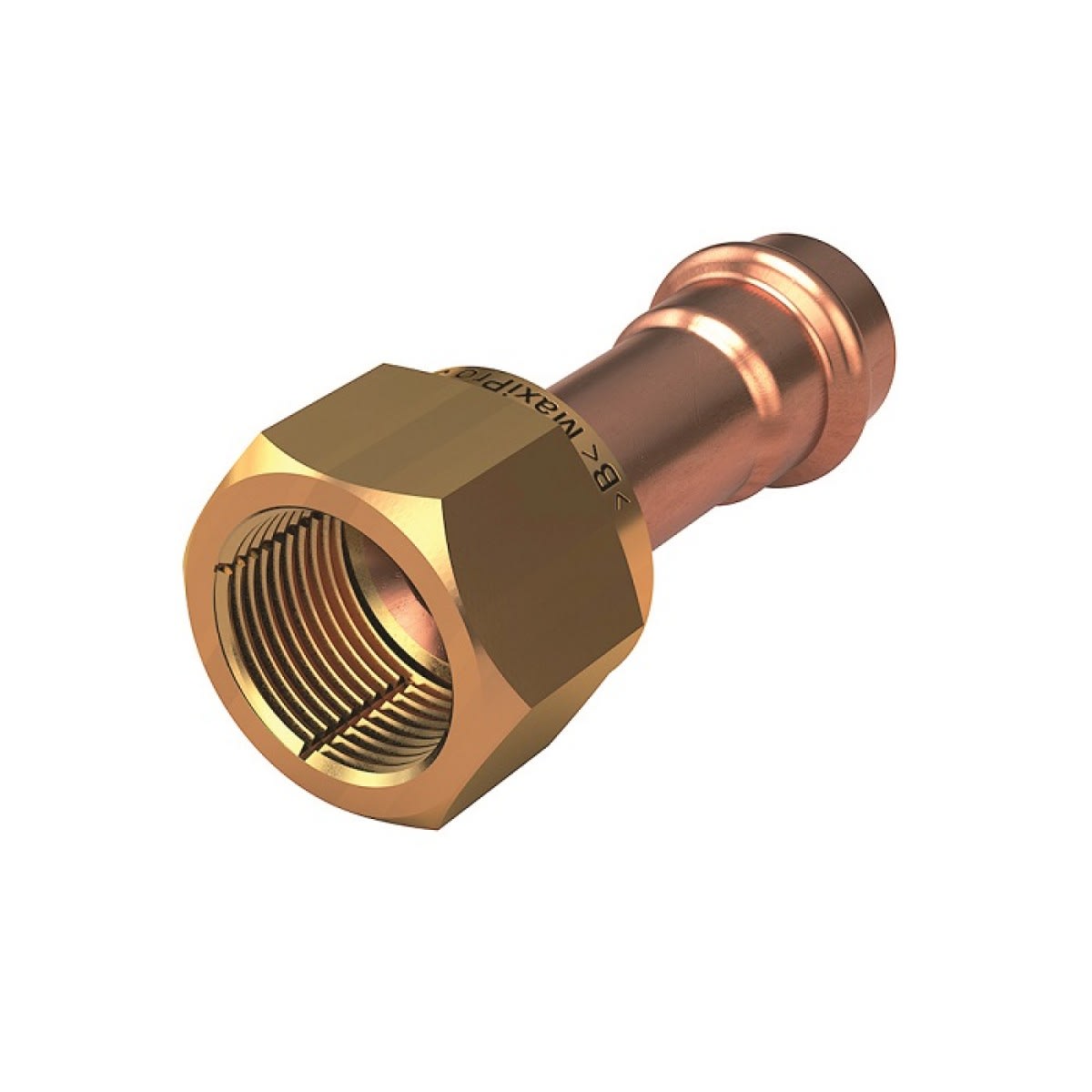

Maxipro MPA5285G0050501 5/8 inches x 5/8 inches ACR Press Fitting - Flare

Product Description

The MaxiPRO MPA5285G0050501 is an innovative press fitting that provides a secure and permanent joint. It improves productivity through reduced installation time and enhanced working flexibility. This 5/8" x 5/8" ACR press fitting is designed for air-conditioning and refrigeration applications up to 48 bar.

• Quick and simple to install, providing a secure and permanent joint.
• Features a 3-point press design for optimal sealing.
• Flame-free installation avoids the need for a fire permit.

Product Highlights

The MaxiPRO fitting is UL certified and eliminates the need for nitrogen purge during installation. It is suitable for air-conditioning and refrigeration applications.

Product Information

Standard Information

• Brand: MaxiPRO
• Manufacturer Part Number: MPA5285G0050501

Technical Specifications

• Type: Flare
• Connection_Size: 5/8" x 5/8"
• Pipe/Fitting/Nipple: Fittings
• Size/Diameter: 5/8 in
• Fitting/Connector Type: Adapter
• Nominal Size: 5/8 in
• Application Type: ACR
• Height: 1.2992
• Material: Copper
• Size: 5/8 in
• Width: 5.51
• Applications: Air conditioning and refrigeration
• Connections: Copper to copper
• Approved tube: Copper tube conforming to EN 12735-1 or ASTM-B280
• Fitting / tube range (inches): 1/4", 3/8", 1/2", 5/8", 3/4", 7/8", 1", 1.1/8", 1.3/8"
• Fitting material: Refrigerant grade copper (C12200 min 99.9% pure)
• O-ring: HNBR
• Approved oils: POE, PAO, PVE, AB and mineral oil
• Maximum operating pressure: 48 bar at 121°C (700 psig at 250°F)
• Temperature range: -40°C to 140°C (-40°F to 284°F)
• Leak tightness: Helium < 7.5 × 10-7 Pa.m3/s at +20°C, 10 bar
• Vacuum: 200 microns
• UL listing continuous operating temperature: 121°C (250°F)
• Compatible refrigerants: R1234YF, R1234ZE, R125, R134A, R290, R32, R404A, R407A, R407C, R407F, R407H, R410A, R417A, R421A, R422B, R422D, R424A, R427A, R434A, R437A, R438A, R444A, R447A, R447B, R448A, R449A, R450A, R452A, R452B, R452C, R453A, R454A, R454B, R454C, R456A, R457A, R459A, R507A, R513A, R513B, R600A, R718, Ethylene Glycol and HYCOOL 20
