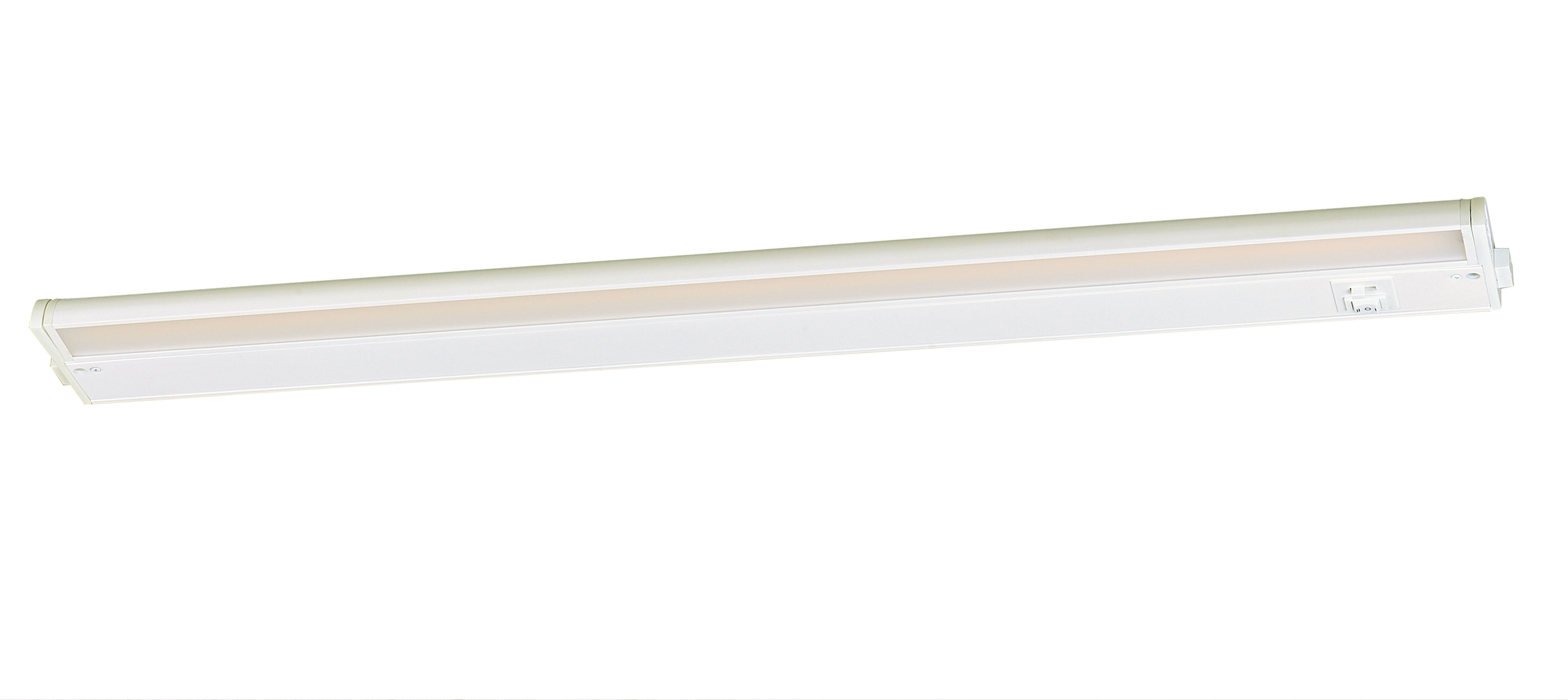

Maxim Lighting 89866WT Led Under Cabinet Light 30in

Product Description

The MAXIM LIGHTING 89866WT is a hardwired LED under cabinet light fixture designed for residential and light commercial kitchen installations. It measures 30 inches long by 3.5 inches wide by 1 inch high and delivers energy-efficient task lighting with a switchable color temperature range spanning 2700K, 3000K, 3500K, 4000K, and 5000K. The fixture operates at 3 watts and is compatible with TRIAC and ELV dimmers, giving installers flexibility to match existing dimming infrastructure. The low-profile housing in a white finish mounts flush beneath upper cabinets to deliver clean, directed illumination over countertop work surfaces.

This fixture is suited for under cabinet task lighting in residential kitchens, bathrooms, and light commercial prep areas. The switchable color temperature feature allows the end user or installer to dial in warm white light for ambiance at 2700K or push to a crisp 5000K daylight output for detail work. At 1 inch in height, the slim profile minimizes visual intrusion when viewed from seated positions. The dimmable design requires a compatible TRIAC or ELV low-voltage dimmer for full range performance.

Key Features

• Switchable color temperature: 2700K, 3000K, 3500K, 4000K, and 5000K selectable
• Low-profile housing at 1 inch high keeps the fixture discreet under cabinetry
• Compatible with TRIAC and ELV dimmers for flexible dimming control
• 3-watt LED source for energy-efficient task illumination
• White finish integrates cleanly with standard cabinet interiors
• Compact footprint: 30 inches long by 3.5 inches wide

Compatibility

Designed as an OEM-style under cabinet LED fixture for residential and light commercial cabinetry installations requiring a 30-inch low-profile linear light with switchable CCT and dimmable output.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC Article 410 for luminaire installations. Disconnect and lock out all power to the circuit before mounting or wiring the fixture. Verify the existing dimmer is rated for TRIAC or ELV operation before connecting; installing with an incompatible dimmer may cause flicker or damage to the LED driver. Secure the housing to the cabinet substrate using the manufacturer-supplied hardware and confirm all wire connections are made with appropriate connectors before restoring power.

Technical Specifications

• Wattage: 3 watts
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K switchable
• Length: 30 inches
• Width: 3.5 inches
• Height: 1 inch
• Finish: White
• Dimming: Dimmable with TRIAC and ELV dimmers
• UPC: 783209259539

Standard Information

• Brand: MAXIM LIGHTING
• Manufacturer Part Number: 89866WT
