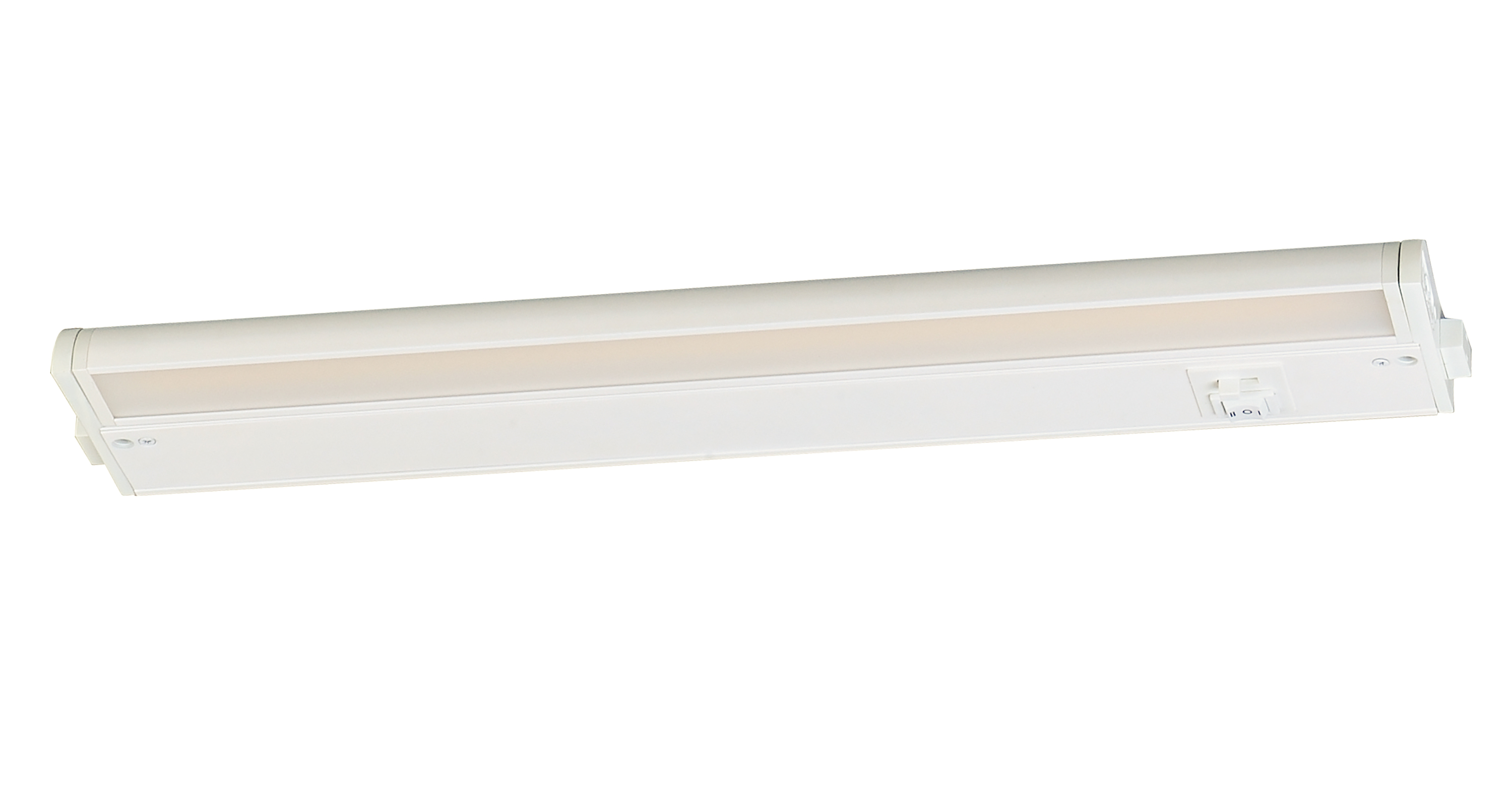

Maxim Lighting 89864WT Led Under Cabinet Light 18in 3W

Product Description

The MAXIM LIGHTING 89864WT is an 18-inch LED under cabinet light designed for residential and light commercial kitchen or workspace installations. It operates at 3 watts and offers switchable color temperature across five settings: 2700K, 3000K, 3500K, 4000K, and 5000K, allowing installers or end users to match the light output to the space. The fixture measures 18 inches long by 3.5 inches wide by 1 inch high and mounts flush beneath upper cabinets to deliver focused task lighting. It is dimmable and compatible with TRIAC and ELV dimmer types. Electricians and general contractors typically handle the wiring and mounting for permanent installations.

This fixture is suited for under cabinet task lighting in residential kitchens, bathrooms, workshops, and similar interior applications. The switchable CCT range from warm 2700K to daylight 5000K makes it adaptable across different cabinetry finishes and lighting design preferences. The white finish blends with standard cabinet interiors. At 3 watts, it draws minimal power while providing consistent, even illumination across the 18-inch span. This model is part of the CounterMax 5K product line.

Key Features

• Switchable color temperature: 2700K, 3000K, 3500K, 4000K, and 5000K selectable
• 3-watt LED draws low power for continuous task lighting use
• Dimmable with TRIAC and ELV dimmers for flexible light level control
• Compact profile at 1 inch high keeps the fixture unobtrusive under cabinets
• White finish for a clean, unobtrusive appearance against standard cabinetry
• 18-inch length provides coverage across standard cabinet widths

Compatibility

Designed as an OEM-style under cabinet LED fixture compatible with TRIAC and ELV dimming systems. Confirm dimmer compatibility before installation, as not all dimmers support low-wattage LED loads.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for low-voltage or line-voltage lighting fixtures. Disconnect power at the breaker before mounting or making any wiring connections. Verify the dimmer being used is rated for LED loads and supports TRIAC or ELV control to avoid flickering or reduced dimming range. Do not exceed the fixture wattage rating when connecting to a dimming circuit with multiple fixtures.

Technical Specifications

• Wattage: 3W
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K (switchable)
• Length: 18 inches
• Width: 3.5 inches
• Height: 1 inch
• Dimming: Dimmable, TRIAC and ELV compatible
• Finish: White
• UPC: 783209259461

Standard Information

• Brand: MAXIM LIGHTING
• Manufacturer Part Number: 89864WT
