Maxim Lighting 86431BK Calibro 14W (7.5 inch/2-Light) 86431BK

Product Description

Maxim Lighting 86431BK Calibro is a 7.5-inch outdoor LED wall sconce with two integrated 7W LED modules (14W total) producing 1,190 lumens at 3000 K. The fixture includes a concealed universal 120-277 V driver, triac dimming and up-and-down light distribution for exterior applications. Constructed of aluminum and glass, it is wet-location rated, ADA compliant, JA8 listed and has an estimated rated life of 25,000 hours, suitable for residential and light commercial use.

• Integrated 2 x 7W LED modules; total 14W, 1,190 lumens, 3000 K, 90 CRI
• Concealed universal 120-277 V driver with triac dimming; output voltage 30�46 V
• Aluminum and glass construction; wet-location rated, ADA compliant, JA8 listed; cETLus certified

Product Highlights

7.5-inch ADA-compliant outdoor cylinder sconce, 14W total, 1,190 lm, 3000K, wet rated

Product Information

Standard Information

• Brand: MAXIM LIGHTING
• Manufacturer Part Number: 86431BK

Technical Specifications

• Brand: Maxim Lighting
• MPN: 86431BK
• Collection: Calibro
• Product Type: Outdoor wall mount
• Light Source: Integrated LED
• Total Wattage: 14 W
• Bulb Wattage (per bulb): 7 W
• Number of LEDs: 2 (integrated)
• Delivered Lumens: 1190 lm
• Color Temperature: 3000 K
• CRI: 90
• Dimmable: Triac dimming (driver compatible with 120-277 V input)
• Input Voltage: 120-277 V
• Output Voltage: 30-46 V
• Rated Life: 25,000 hours
• Material: Aluminum, Glass
• Lighting Direction: Up and Down
• Install Position: Up

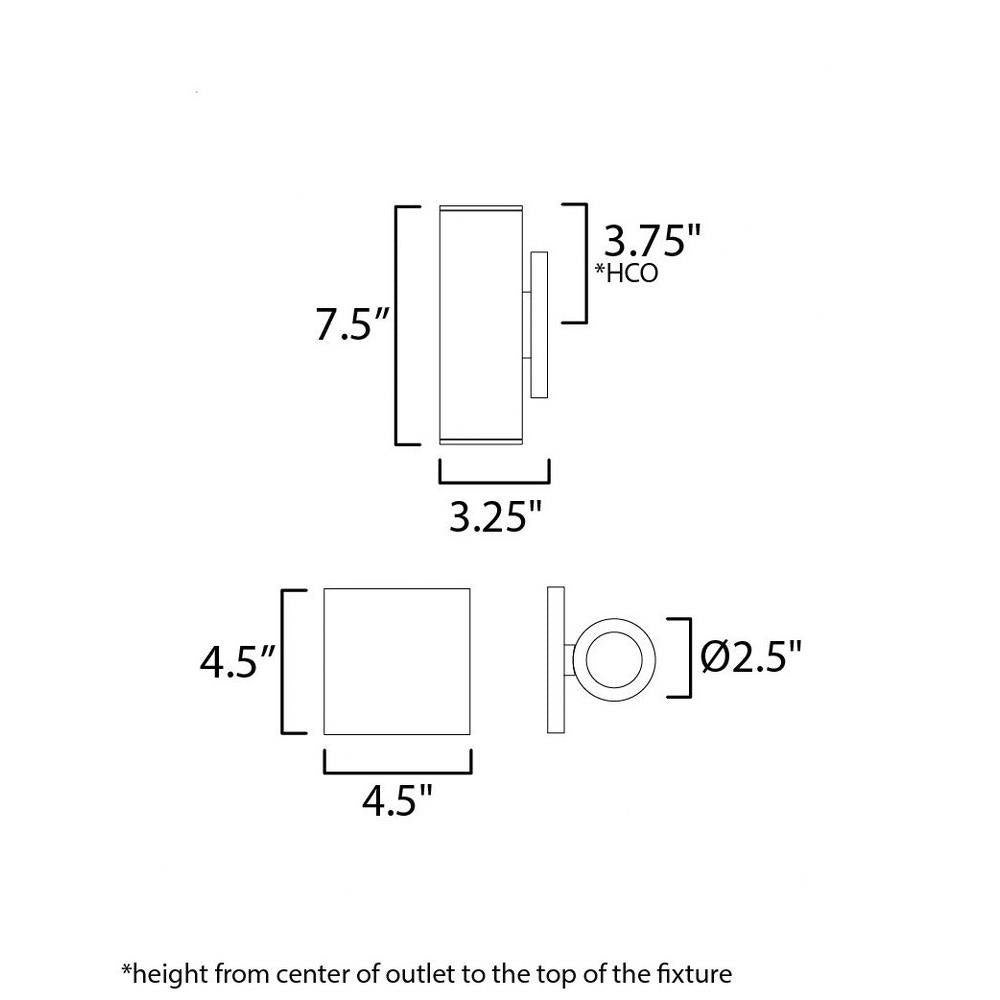

• Dimensions: 2.5 in W x 7.5 in H x 3.25 in D
• Backplate Dimensions: 4.5 in x 4.5 in
• Wire Length: 8 in
• Weight: 2 lb
• Location Rating: Wet location
• ADA Compliant: Yes
• Certifications: JA8 Listed; cETLus
• UPC: 783209308138
