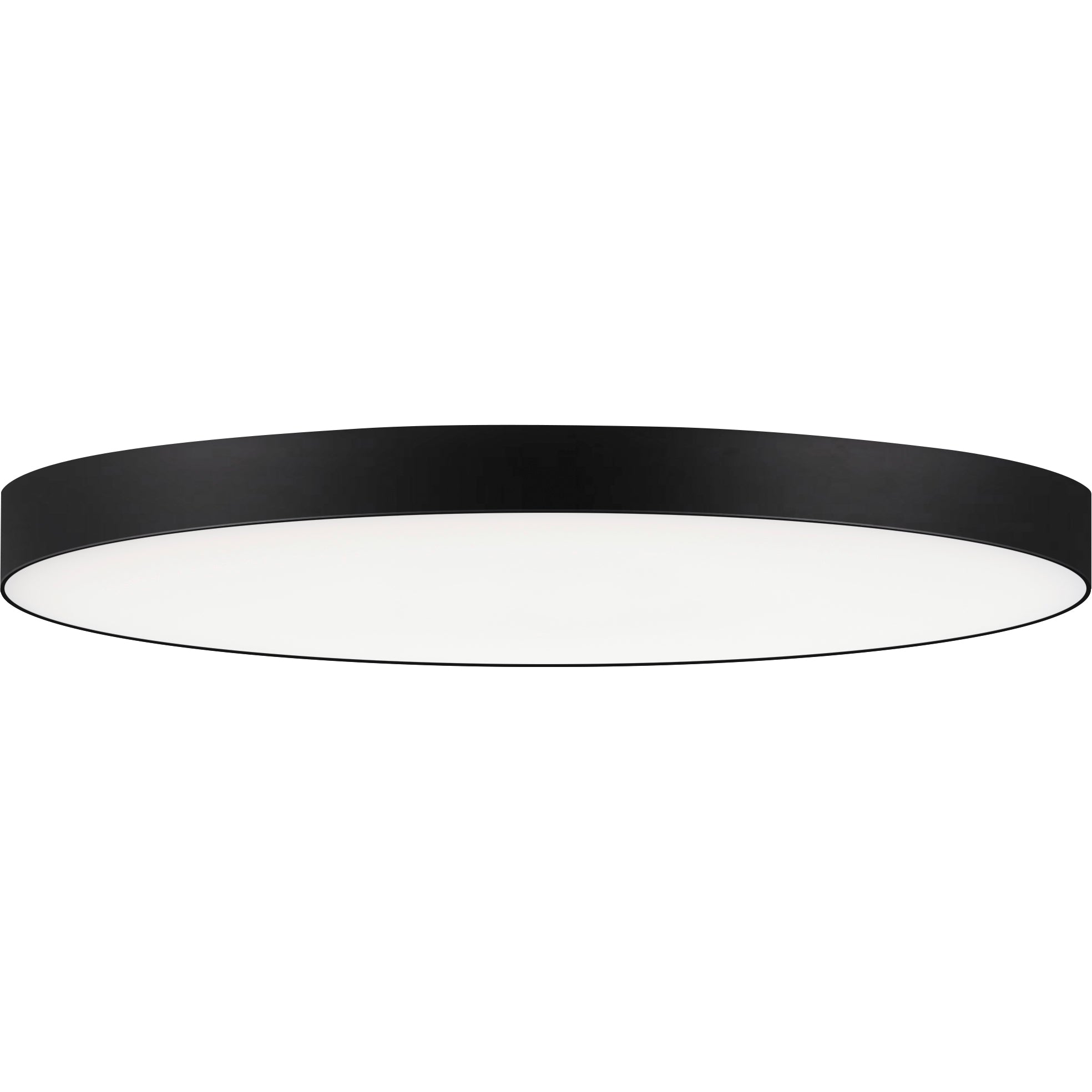

Maxim Lighting 57664WTBK Trim LED Flush Mount 20W (11 inches)

Product Description

The Maxim Lighting 57664WTBK is an 11-inch trim LED flush mount that delivers 20W of integrated LED illumination. It produces 1600 delivered lumens at 3000K with CRI 90 and a rated life of 50,000 hours. The fixture is dimmable via ELV or triac (CL) on 120V hard-wired systems, features a die-cast aluminum housing with a recessed polycarbonate diffuser, a 0.75-inch low profile, and is wet-location rated and ADA/JA8 compliant.

• Integrated 20W PCB LED � 1600 delivered lumens, 3000K color temperature, CRI 90, 50,000 hour rated life
• Dimmable with ELV or triac (CL); input voltage 120 V; hard-wired installation
• 11" round x 0.75" profile; die-cast aluminum housing with recessed polycarbonate diffuser; wet-location rated and ADA/JA8 compliant

Product Highlights

Low-profile 11-inch LED trim flush mount, 20W integrated output (1600 lm), dimmable, wet-location rated and ADA/JA8 listed.

Product Information

Standard Information

• Brand: MAXIM LIGHTING
• Manufacturer Part Number: 57664WTBK
• Country of Origin: China

Technical Specifications

• Brand: Maxim Lighting
• Manufacturer Part Number: 57664WTBK
• Product Name: Trim LED Flush Mount (11-inch round)
• Light Source: Integrated PCB LED
• Wattage: 20 W
• Delivered Lumens: 1600 lm
• Color Temperature: 3000 K
• Color Rendering Index (CRI): 90
• Rated Life: 50,000 Hours
• Input Voltage: 120 V
• Dimmable: Yes
• Dimming Type: ELV or Triac (CL)
• Mounting Type: Flush ceiling mount

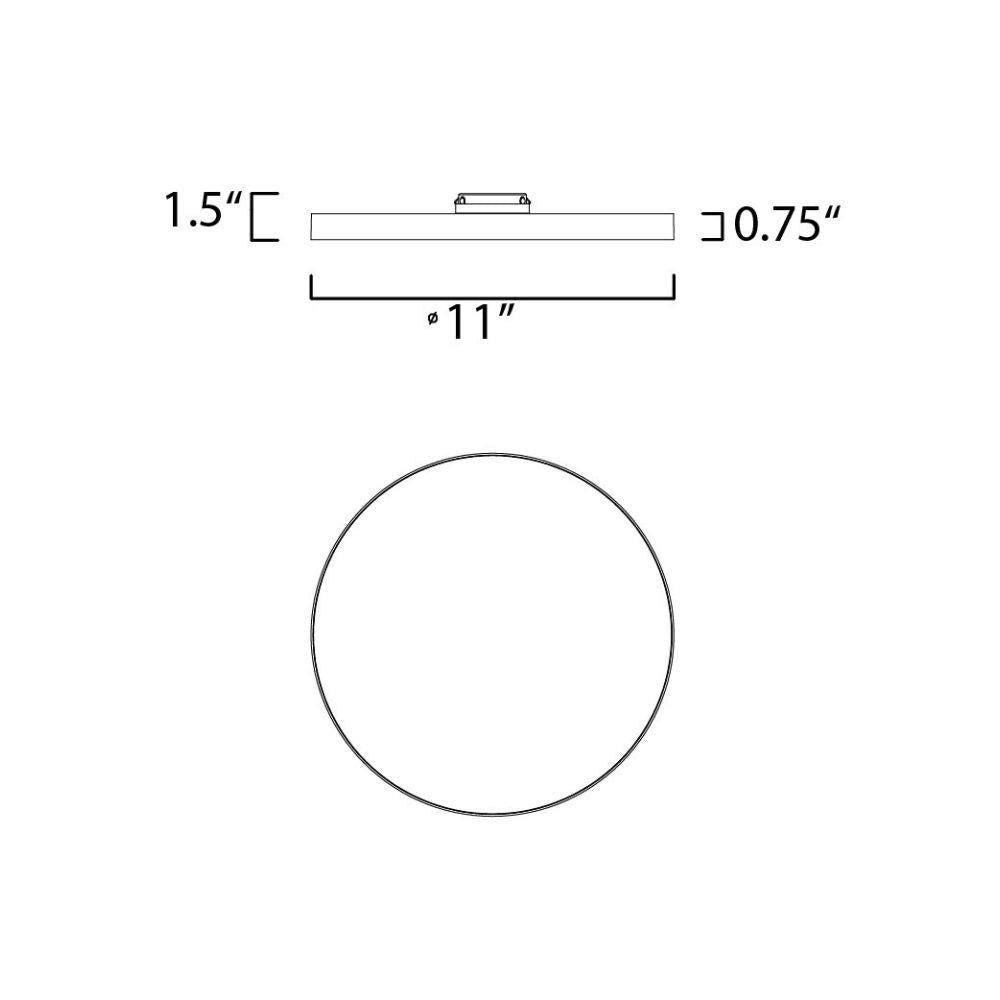

• Dimensions: 11" W x 11" L x 0.75" H
• Width: 11 inches
• Length: 11 inches
• Height: 0.75 inches
• Material: PC, steel, die-cast aluminum
• Diffuser Material: Recessed polycarbonate
• Wire Length: 8 inches
• Weight: 2.35 lb
• Location Rating: Wet (cETLus Wet)
• ADA Compliant: Yes
• Title 24: JA8 Listed
• Certifications: cETLus Wet; JA8 Listed
• Power Source: Hard-wired
• Number of Light Sources: 1 (integrated)
• UPC: 783209233461
• Country of Origin: China
