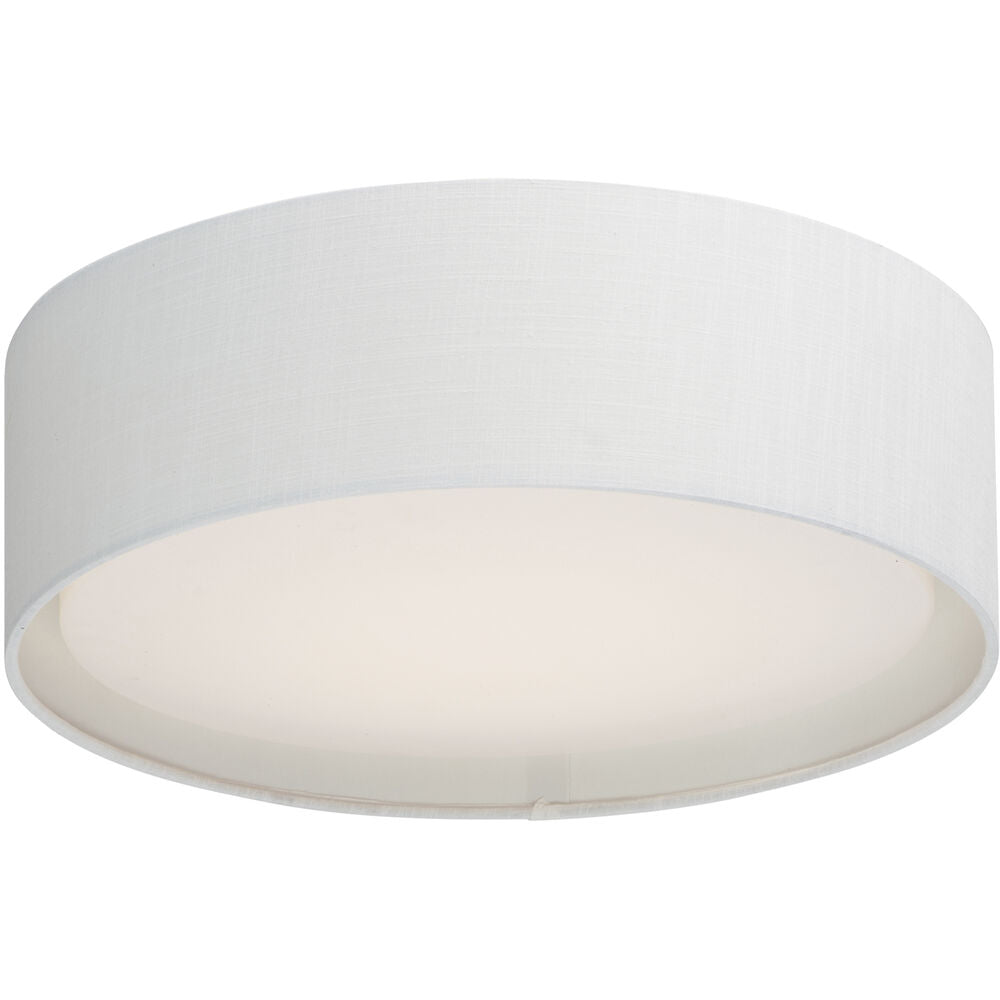

Maxim Lighting 10232BO Prime LED Flushmount 28W 20 inch

Product Description

The MAXIM LIGHTING 10232BO Prime LED Flushmount is a 20-inch wide LED drum fixture designed for residential or commercial ceiling lighting applications. This 28W fixture provides 1960 lumens of illumination with a 90+ CRI and a 3000K color temperature. It operates on an input voltage of 120-277V and is dimmable with an ELV dimmer at 120V. The design incorporates an internal acrylic diffuser that twist-locks into place, ensuring a clean aesthetic without visible hardware.

• Integrated LED light source with a rated life of 40,000 hours.
• Internal acrylic diffuser features a twist-lock mechanism for a clean, hardware-free appearance.
• Dimmable with ELV dimmers at 120V and JA8 Listed for Title 24 compliance.

Product Highlights

Energy-efficient LED illumination with high CRI, featuring a clean design and versatile application.

Product Information

Standard Information

• Brand: MAXIM LIGHTING
• Manufacturer Part Number: 10232BO
• Country of Origin: China

Technical Specifications

• Material: Steel/Acrylic/Fabric
• Light Source: Integrated LED
• Socket Type: PCB Integrated
• Bulbs Included: Integrated
• Number of Bulbs: 1
• Wattage: 28W
• Lumens: 1960
• CRI: 90+
• Color Temperature: 3000K
• Rated Life: 40000 Hours
• Dimmable: ELV dimmer at 120V
• Input Voltage: 120-277V
• Height: 5.5 inch
• Width: 20 inch
• Length: 20 inch
• Adjustable Height: No
• Shade Bottom: 20 inch
• Shade Top: 20 inch
• Shade Height: 5 inch
• Canopy Length: 17.75 inch
• Canopy Height: 0.75 inch
• Canopy Width: 17.75 inch
• Wire Length: 6 inch
• Install Location: Dry
• Title 24 Compliance: JA8 Listed
• Collection: Prime
• Product Type: Flush Mount
• Recommended Location: Foyer, Hallway, Powder Room
• Minimum Operating Temperature: -4 Degrees F
• Design Style: Modern, Traditional, Transitional
• Certifications: cETLus Certified
