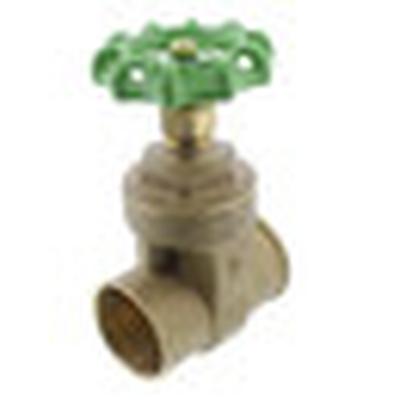

Matco V 514C08LF 514LF Gate Valve 2 In C X C 514C08LF

Product Description

The Matco V 514C08LF gate valve is designed for fluid control applications. It features a two-inch nominal size with a copper-to-copper connection. This gate valve is suitable for water, oil, and gas applications with a maximum pressure rating of two hundred psi WOG. The robust brass body ensures durability and longevity while the hand wheel actuator facilitates easy manual operation.

• Brass body construction
• Hand wheel actuator for manual operation
• Compatible with water, oil, and gas

Product Highlights

This valve is ideal for plumbing systems in residential and commercial buildings. It provides reliable shut-off and is easy to install and maintain.

Product Information

Standard Information

• Brand: Matco V
• Model: 514C08LF

Technical Specifications

• Size: 2 In
• Pressure Rating: 200 psi WOG
• End Style: C X C
• Actuator Type: Hand Wheel
• Body Material: Brass
• Trim Material: Brass
• Gland Packing: Graphite
• Length Inlet to Outlet: 3.98 in
• Top to Inlet Center: 5.99 in
• Hand Wheel Diameter: 3.53 in
