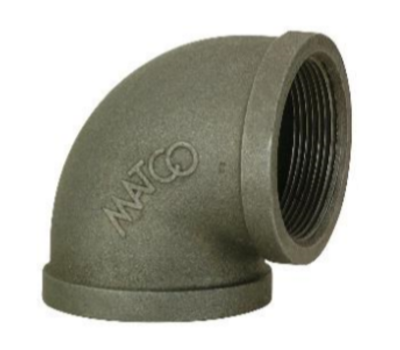

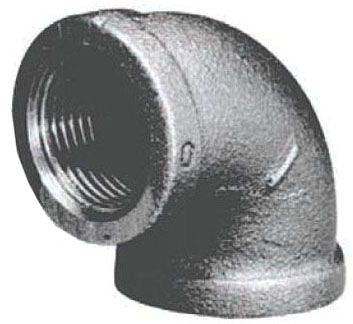

Matco-norca zmbl9005 Black Malleable 90 Elbow 1 in

Product Description

The MATCO-NORCA zmbl9005 is a 1-inch black malleable iron 90-degree elbow used to change pipe direction in threaded piping systems. This fitting redirects flow at a right angle and is well suited for gas distribution, steam, and low-pressure fluid systems where malleable iron construction is required. The black finish indicates an uncoated surface appropriate for gas line and industrial applications. Licensed plumbers and pipefitters install this fitting as part of threaded pipe assemblies in both new construction and retrofit work.

This elbow is sized at 1 inch and is designed for threaded pipe connections in residential and light commercial piping systems. Typical installations include natural gas supply lines, propane systems, and steam heating piping where malleable iron fittings are code-accepted. The 90-degree bend makes it a standard choice when routing pipe around obstructions or turning a line at a structural corner.

Key Features

• 90-degree bend for right-angle pipe direction changes in threaded systems
• Black malleable iron construction suited for gas, steam, and industrial service
• 1-inch threaded end connections for standard pipe assembly
• Black finish appropriate for natural gas and propane piping applications

Compatibility

Designed as an OEM-style replacement or standard-stock fitting for 1-inch threaded malleable iron pipe systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Fuel Gas Code (IFGC) or International Plumbing Code (IPC) where required. Shut off and depressurize the system before disassembling or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to all male threads before assembly. Do not over-tighten, as malleable iron threads can be damaged by excessive force.

Technical Specifications

• Pipe Size: 1 inch
• Fitting Angle: 90 degrees
• Material: Black malleable iron
• Connection Type: Threaded

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: zmbl9005
