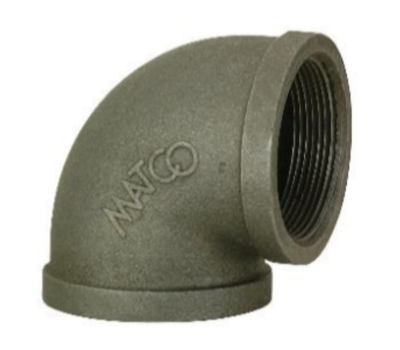

MATCO-NORCA ZMBL9003 1/2 in. Female Class 150 Chinese Black Malleable Iron 90-Degree Elbow

Product Description

The MATCO-NORCA ZMBL9003 is a 1/2 inch female class 150 Chinese black malleable iron 90-degree elbow. This fitting is designed for use in plumbing systems and conforms to all relevant ASTM and ANSI standards.

• Meets ANSI/ASME B16.3 standards.
• Made from durable malleable iron.
• UL and FM approved for safety and reliability.

Product Highlights

This elbow fitting is ideal for connecting pipes at a right angle in various plumbing applications. It has a pressure rating of 150 PSI and a temperature rating of 350 degrees Fahrenheit.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Model Number: ZMBL9003

Technical Specifications

• Connection Type: FPT x FPT
• Material: Malleable Iron
• Bend Angle: 90 degrees
• Application: Plumbing System
• Specifications Met: ANSI/ASME B16.3, ISO 9001:2000, FM Approved, UL Listed
• UPC: 082647062542
• Weight: 0.224 lb
• Catalog Number: ZMBL9003
• Pressure Rating: 150 PSI
• Temperature Rating: 350 degrees F
