Matco-norca zmbl4502 Black Malleable Iron 45 Deg Elbow 3/8

Product Description

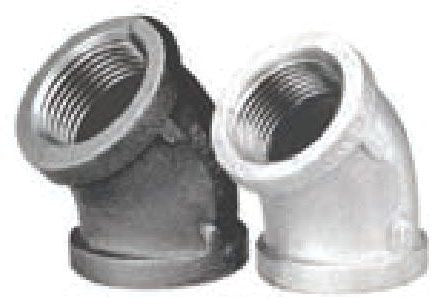

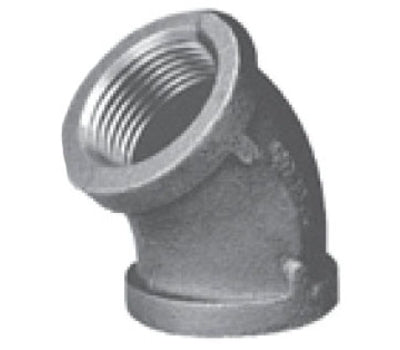

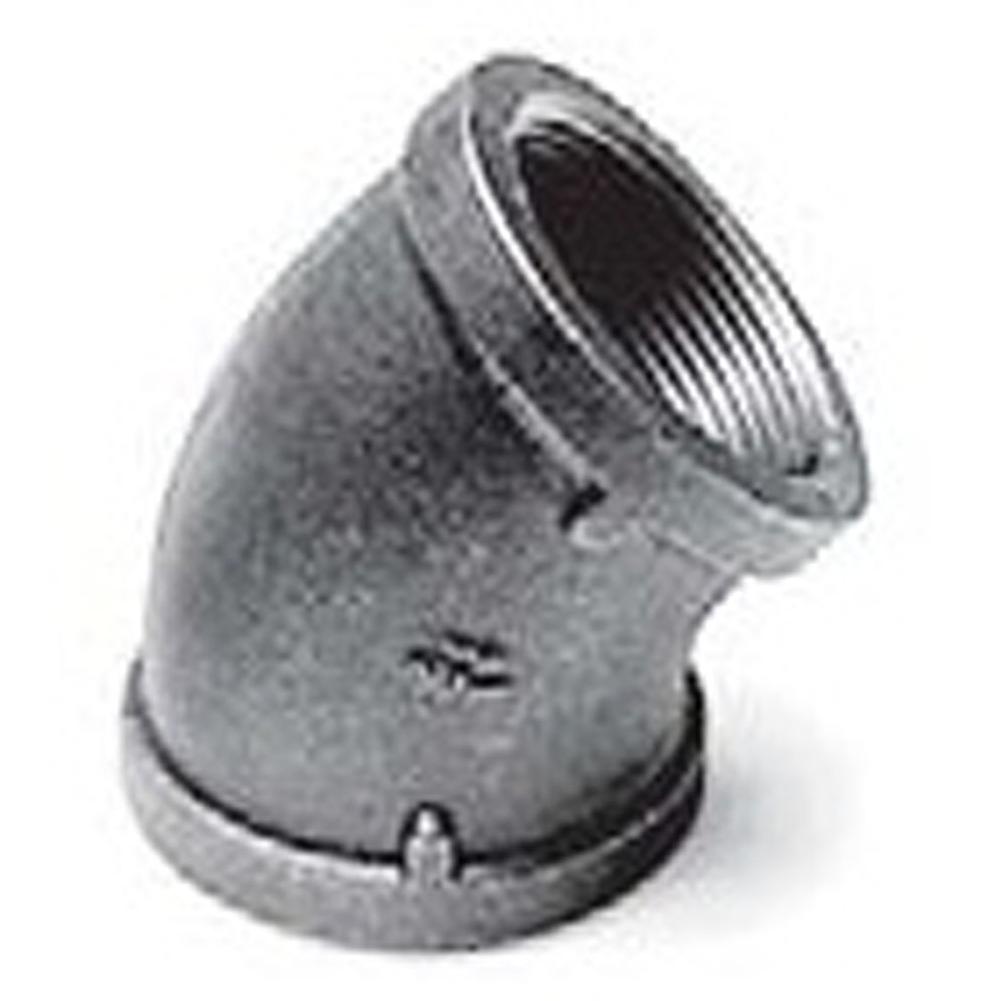

The MATCO-NORCA zmbl4502 is a 45-degree elbow fitting made from Chinese malleable iron conforming to ASTM A197/A197M. It carries a Class 150 pressure rating and features female-threaded connections on both ends at 3/8 inch. The black finish is applied over the malleable iron body, making it suitable for general-purpose piping installations. Licensed plumbers and pipe fitters install this fitting in gas, air, and water distribution systems where a 45-degree directional change is required. The fitting meets ANSI/ASME B16.39, B16.14, and B1.201 standards and carries UL/FM listings.

This fitting is used in residential, commercial, and industrial piping applications. Its Class 150 rating and standard female-threaded ends make it a common choice for low-pressure gas lines, compressed air systems, and general-purpose piping where a 45-degree change of direction is needed. Both end connections are 3/8 inch female threaded, allowing direct connection to standard male-threaded pipe without adapters. The fitting is RoHS compliant and is rated for service temperatures up to 186 degrees C.

Key Features

• 45-degree elbow geometry for directional piping changes
• 3/8 inch female threaded x female threaded end connections
• Class 150 pressure rating for low-pressure piping systems
• Malleable iron body conforming to ASTM A197/A197M
• Black finish for corrosion resistance in general-purpose applications
• Compliant with ANSI/ASME B16.39, B16.14, B1.201 and UL/FM listings

Compatibility

Designed as an OEM-style replacement fitting for Class 150 black malleable iron piping systems using 3/8 inch female-threaded connections in residential, commercial, and industrial installations.

Installation Notes

Installation should be performed by a licensed plumber or pipe fitter in accordance with applicable local codes and IFGC or IPC requirements. Shut off and depressurize the system before removing or installing any fitting. Apply an appropriate thread sealant or PTFE tape to male threads before assembly. Do not overtighten threaded connections, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Fitting Type: 45-Degree Elbow
• Size A: 3/8 inches
• Size B: 3/8 inches
• End Connection: Female Threaded x Female Threaded
• Material: Malleable Iron
• Material Specification: ASTM A197/A197M
• Finish: Black
• Pressure Rating: Class 150
• Service Temperature: 186 degrees C
• Applicable Standards: ANSI/ASME B16.39/B16.14/B1.201, UL/FM, ISO 9000/2000
• Compliance: Lead-Free, RoHS Compliant
• Application: Residential, Commercial, Industrial

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: zmbl4502
