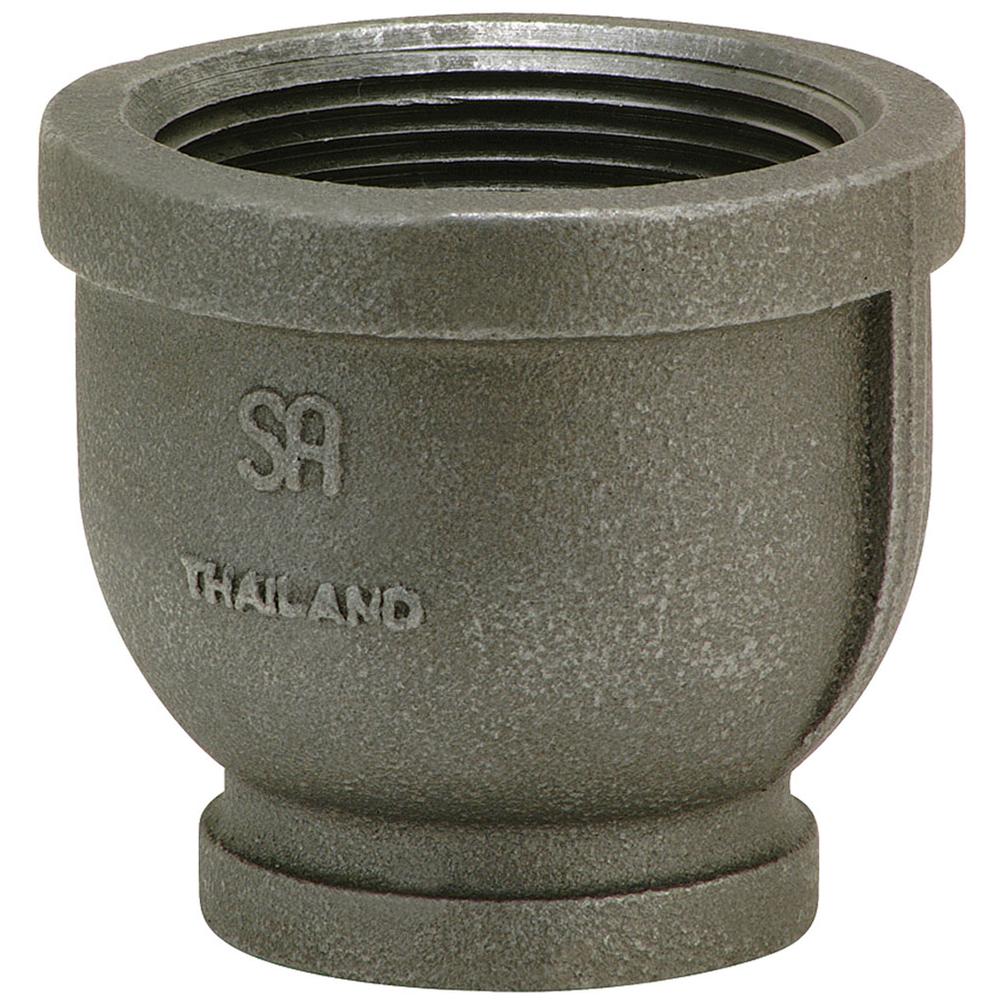

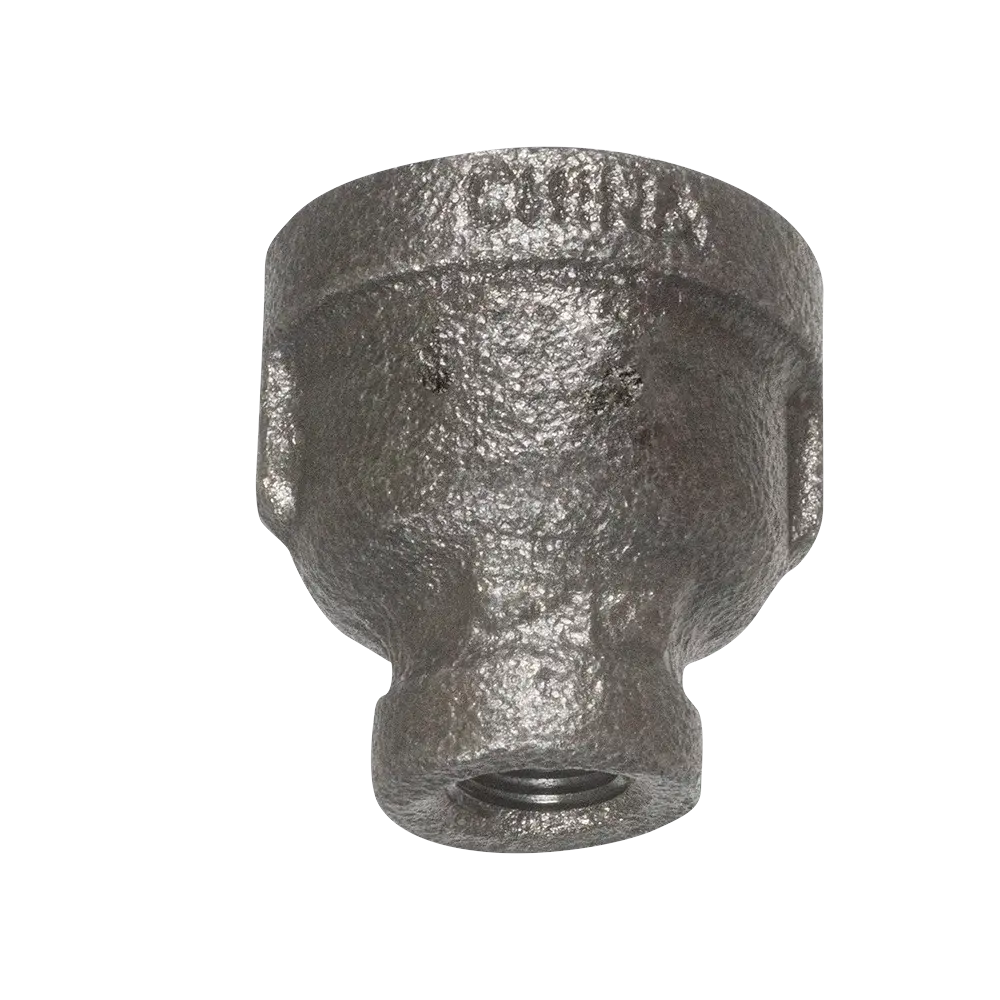

Matco-norca zmbcpr0402 Malleable Iron Reducing Coupling

Product Description

The MATCO-NORCA zmbcpr0402 is a black malleable iron reducing coupling designed for threaded pipe systems in commercial and residential plumbing, fire protection, and gas distribution applications. It reduces a 3/4-inch female-threaded inlet to a 3/8-inch female-threaded outlet and is rated for 150 psi service pressure at temperatures up to 350 degrees F. The fitting meets ASTM A197/A197M material standards and carries UL and FM listings, making it suitable for fire-sprinkler and industrial piping systems where listed fittings are required. Licensed plumbers, pipefitters, and fire-protection contractors are the primary installers.

This reducing coupling is used wherever a threaded pipe run must transition from 3/4-inch to 3/8-inch pipe. Typical applications include branch connections in gas piping, low-pressure steam, hydronic heating, compressed air, and fire-protection sprinkler systems. The black finish is standard for gas-line fittings and distinguishes the fitting from galvanized potable-water fittings. It is imported and manufactured under ISO 9001 quality management standards.

Key Features

• 150 psi pressure rating suitable for low-pressure gas, steam, compressed air, and fire-protection piping
• Rated to 350 degrees F service temperature
• Female NPT x Female NPT threaded ends for standard pipe engagement
• Malleable iron construction per ASTM A197/A197M for ductility and impact resistance
• UL listed and FM approved for use in fire-protection piping systems
• Conforms to ANSI/ASME B16.3 dimensional standards for threaded fittings
• Black finish standard for gas distribution and non-potable piping identification

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3/4-inch by 3/8-inch NPT threaded malleable iron pipe systems rated at 150 psi class.

Installation Notes

Installation should be performed by a licensed plumber, pipefitter, or fire-protection contractor in accordance with applicable code requirements including IFGC, IPC, or NFPA 13 as the application dictates. Shut off and de-pressurize the pipe system completely before removing any existing fitting or threading in this coupling. Apply an approved pipe-thread sealant or PTFE tape rated for the intended service medium to the male threads before making up the joint. Do not over-tighten threaded malleable iron fittings, as the material can crack under excessive torque.

Technical Specifications

• Fitting Type: Reducing Coupling
• Size A (Inlet): 3/4 inches Female NPT
• Size B (Outlet): 3/8 inches Female NPT
• End Connection: Female Threaded x Female Threaded
• Material: Malleable Iron
• Material Specification: ASTM A197/A197M
• Finish: Black
• Pressure Rating: 150 psi
• Temperature Rating: 350 degrees F
• Applicable Standards: UL, FM, ANSI/ASME B16.3, ISO 9001
• Lead-Free: Yes
• Country of Origin: China

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: zmbcpr0402
