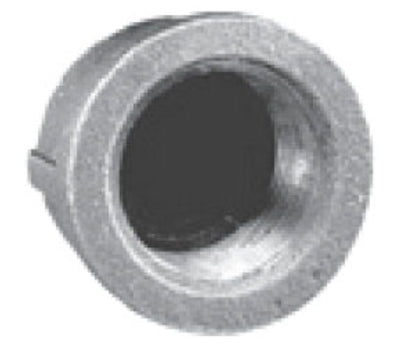

Matco-Norca ZMBCA09 2-1/2 in. Female Class 150 Chinese Black Malleable Iron Cap

Product Description

Matco-Norca offers the ZMBCA09, a 2-1/2 inch Female Class 150 Chinese Black Malleable Iron Cap. Built for durability and high performance, this fitting is an essential component for various applications. It meets ASTM specifications and other industry standards, ensuring reliability and safety.

• Pressure-tested for superior performance
• Made from durable malleable iron
• Female National Pipe Thread connection

Product Highlights

The ZMBCA09 iron cap is designed to withstand a maximum pressure of 150 pounds and operates within a temperature range of -20 to +151 degrees Fahrenheit. It adheres to ASTM, ANSI/ASME B16.3, ISO 9001:2000, FM, and UL standards.

Product Information

Standard Information

• UPC: 082647061507
• Weight: 1.49 lb

Technical Specifications

• Material: Malleable Iron
• Selling Size: 2-1/2 inches
• Connection Type: FNPT
• Specifications Met: ASTM Specified, ANSI/ASME B16.3, ISO 9001:2000, FM Approved, UL Listed
• Maximum Pressure Rating: 150 lb
• Maximum Temperature Rating: +151 degrees Fahrenheit
• Minimum Temperature Rating: -20 degrees Fahrenheit
