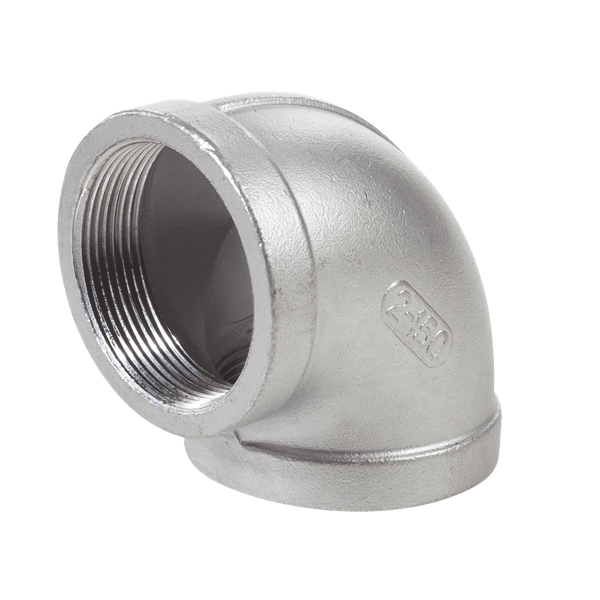

MATCO-NORCA SSF304L9004 304 Stainless Steel Threaded 90 Degree Elbow 0.75 Inch

Product Description

The MATCO-NORCA SSF304L9004 is a 90-degree elbow fitting made from 304 stainless steel, designed specifically for plumbing and industrial piping systems. This Class 150 fitting is reliable and built to last. It features NPT threads that conform to ASME B1.20.1, ensuring secure connections in various settings. The casting material meets ASTM A351 standards, and the manufacturing facility is certified under ISO 9001:2008, signifying quality assurance in production.

• Constructed from 304 stainless steel
• Features threaded connections conforming to ASME B1.20.1
• Compliant with RoHS and MSS SP-114 standards

Product Highlights

Designed for durability and versatility in plumbing applications.

Product Information

Standard Information

• Part Number: SSF304L9004
• Material: 304 Stainless Steel

Technical Specifications

• Type: 90 Elbow
• Connection: Threaded
• Class: Class 150
• Casting: Conforms to ASTM A351
• Compliance: RoHS & MSS SP-114 Compliant
• Size: 0.75 inches
• Dimensions: Height: 2.39 inches, Width: 1.78 inches, Depth: 2.39 inches
