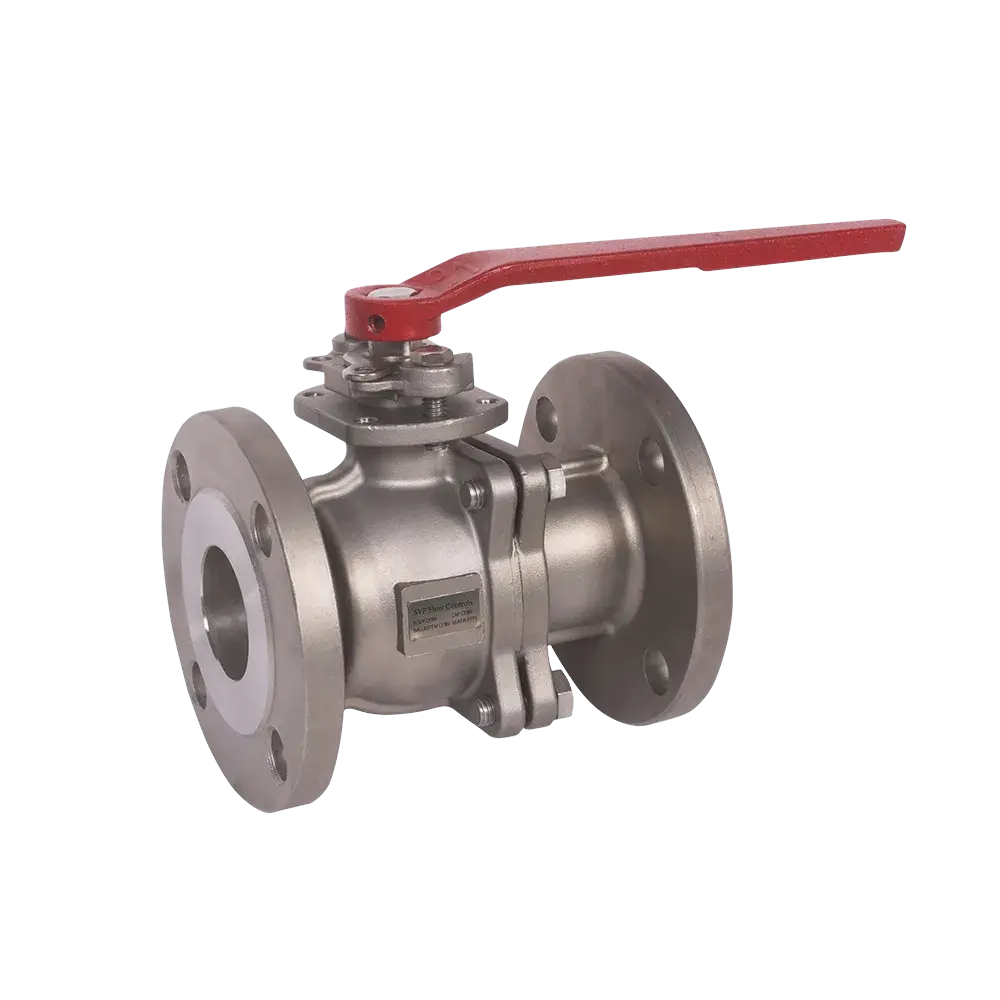

Matco-Norca MN-20SSFL08D 2 inch stainless steel flanged two-piece full port ball valve

Product Description

The MATCO-NORCA MN-20SSFL08D ball valve is a 2 inch stainless steel flanged two-piece full port valve designed for dependable performance in industrial and commercial fluid control systems. Crafted from high-quality 316 stainless steel through investment casting, it features a 150 lb. WSP pressure rating and a wide temperature range from -4°F to 392°F. Its blow-out proof stem and locking device ensure durability and safety.

• 1/16 inch Raised Face Flanged connection for secure installation
• 150 lb. WSP / ANSI Class 150 pressure rating for demanding applications
• Constructed from 316 Stainless Steel with a blow-out proof stem and locking device

Product Highlights

Durable 316 stainless steel full port ball valve with flanged connection, blow-out proof stem, and locking device for reliable fluid control.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: MN-20SSFL08D

Technical Specifications

• Series: MN-20SSFLD
• Size: 2 inch
• Material: 316 Stainless Steel
• Construction: Two Piece
• Port Type: Full Port
• Connection Type: Flanged
• Flange Type: 1/16 inch Raised Face
• Pressure Rating: 150 lb. WSP / ANSI Class 150
• Temperature Range: -4°F to 392°F
• Casting Method: Investment Casting
• Stem Type: Blow-out Proof
• Safety Feature: Locking Device
• Standard: ASME B16.34
