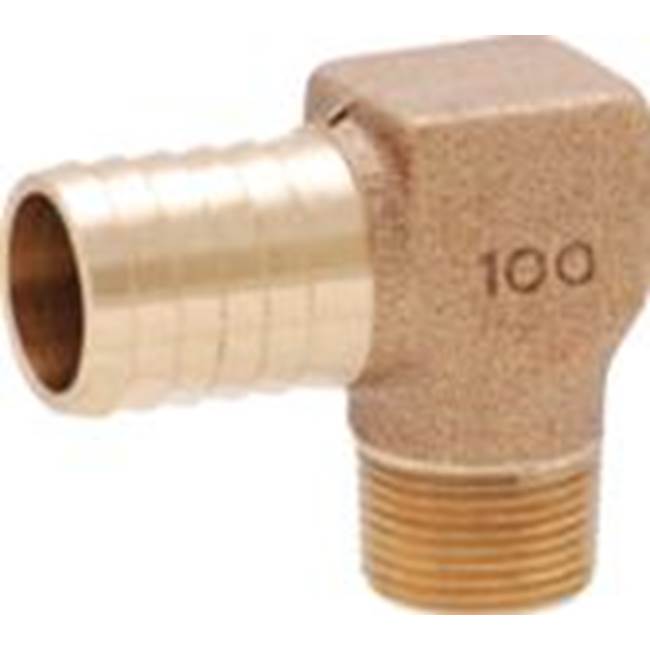

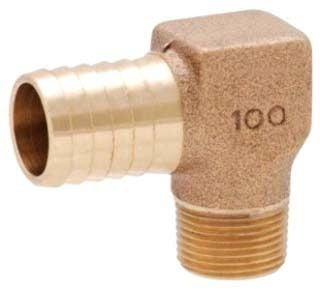

Matco-norca ibhl0504lf Lead Free Hydrant Elbow 1x3/4 in

Product Description

The MATCO-NORCA ibhl0504lf is a lead free insert by male hydrant elbow fitting designed for potable water plumbing applications. This elbow transitions a 1 inch insert connection to a 3/4 inch male hydrant thread, making it a practical fitting for connecting poly or PEX tubing runs to hose bibs, yard hydrants, and similar outdoor water supply points. Its lead free construction meets safe drinking water requirements, making it suitable for installations where potable water compliance is mandatory. Licensed plumbers and pipe fitters typically install this fitting in residential and light commercial water distribution systems.

This hydrant elbow is used where a directional change is needed between an insert-style tubing connection and a male-threaded hydrant outlet. Typical applications include outdoor hose bib connections, irrigation system supply lines, and yard hydrant installations where flexible poly or PEX tubing feeds into a threaded hydrant body. The 1 inch by 3/4 inch size combination accommodates common residential supply and distribution line configurations.

Key Features

• Lead free construction for compliance with safe drinking water regulations
• 1 inch insert inlet connects directly to PEX or poly tubing without soldering
• 3/4 inch male hydrant thread outlet for direct connection to standard hydrant fittings
• Elbow configuration allows directional change in tight installation spaces
• Designed for potable water service in residential and light commercial systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for residential and light commercial plumbing systems using 1 inch insert-style tubing connections and 3/4 inch male hydrant threaded outlets.

Installation Notes

Installation is performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off the water supply and relieve system pressure completely before making any connections. Insert fittings require the use of the appropriate crimp or clamp tool rated for the tubing type and size. Ensure all threaded connections are properly sealed with thread sealant tape or compound rated for potable water service.

Technical Specifications

• Inlet Connection Type: Insert (1 inch)
• Outlet Connection Type: Male Hydrant Thread (3/4 inch)
• Lead Free: Yes

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: ibhl0504lf
