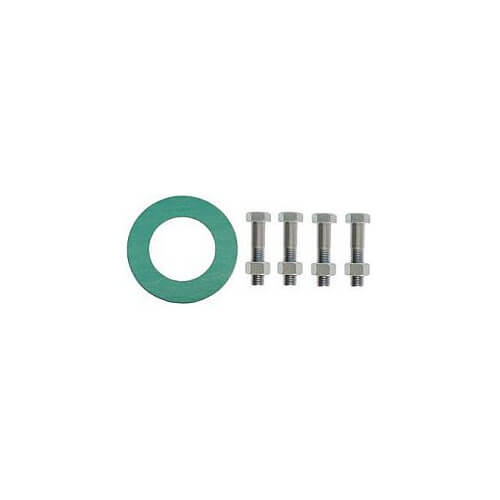

Matco-Norca GSNAG8 8 Non-Asbestos Gasket & Steel Bolt Kit

Product Description

The Matco-Norca GSNAG8 is an 8-inch non-asbestos gasket and steel bolt kit designed for use in heating applications. This product includes full face and ring gasket kits along with four grade A zinc-plated carbon steel bolts. It uses aramid fiber bonded with nitrile rubber to ensure durability and reliability. The kit meets ASTM F152 standards for quality and performance.

• Includes both full face and ring gasket kits
• Rated for a maximum temperature of seven hundred fifty degrees Fahrenheit
• Maximum pressure rating of one thousand five hundred ninety-five psi

Product Highlights

This gasket and bolt kit is suitable for various heating applications, particularly where reliability under pressure and temperature is crucial.

Product Information

Standard Information

• Type: Gasket
• Includes: 4 Bolts

Technical Specifications

• Flange Size: 8 inches
• Thickness: 1/16 inches
• Max Pressure (PSI): 150 psi
• Max Temperature: 750 degrees Fahrenheit
• Continuous Max Temperature: 460 degrees Fahrenheit
• Continuous Max Pressure: 725 psi
• Weight: 0.05 lbs
• Shipping Depth: 10 inches
• Shipping Width: 13.375 inches
• Shipping Height: 1.5 inches
