MATCO-NORCA GSNAG3 Non-Asbestos Gasket & Steel Bolt Kit 3 inches

Product Description

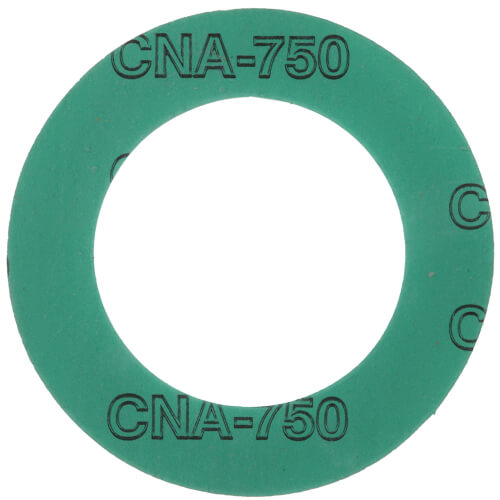

The MATCO-NORCA GSNAG3 is a three-inch Non-Asbestos Gasket and Steel Bolt Kit. It is constructed using aramid and synthetic fibers bonded with nitrile rubber, making it suitable for various applications, including water, air, industrial gases, fluids, and steam under specific operating conditions.

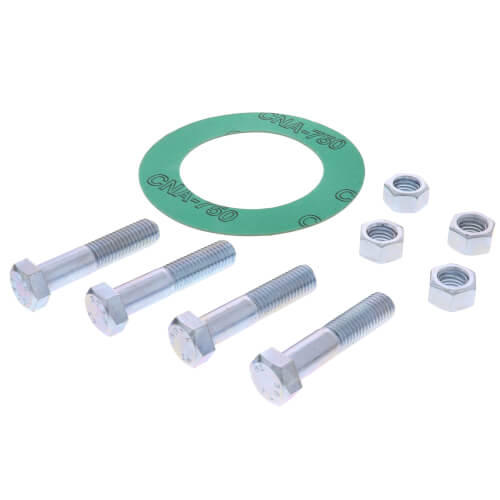

• Includes four Grade A zinc-plated carbon steel bolts
• Maximum temperature rating of 750 degrees Fahrenheit (continuous max temperature 460 degrees Fahrenheit)
• Maximum pressure capability of 1595 psi (continuous max pressure 725 psi)

Product Highlights

This gasket kit provides reliable sealing solutions for various industrial applications, ensuring durability and high performance.

Product Information

Standard Information

• Type: Gasket & Bolt Kit
• Flange Size: 3 inches

Technical Specifications

• Thickness: 1/16 inches
• Pressure Rating: 1595 psi
• Material: Non-Asbestos Rubber, Steel
• Domestic/Import: Domestic
• Finish: Plated
• Temperature Rating: 750 degrees Fahrenheit
• Nominal Size: 3 inches
• Brand: Matco-Norca
