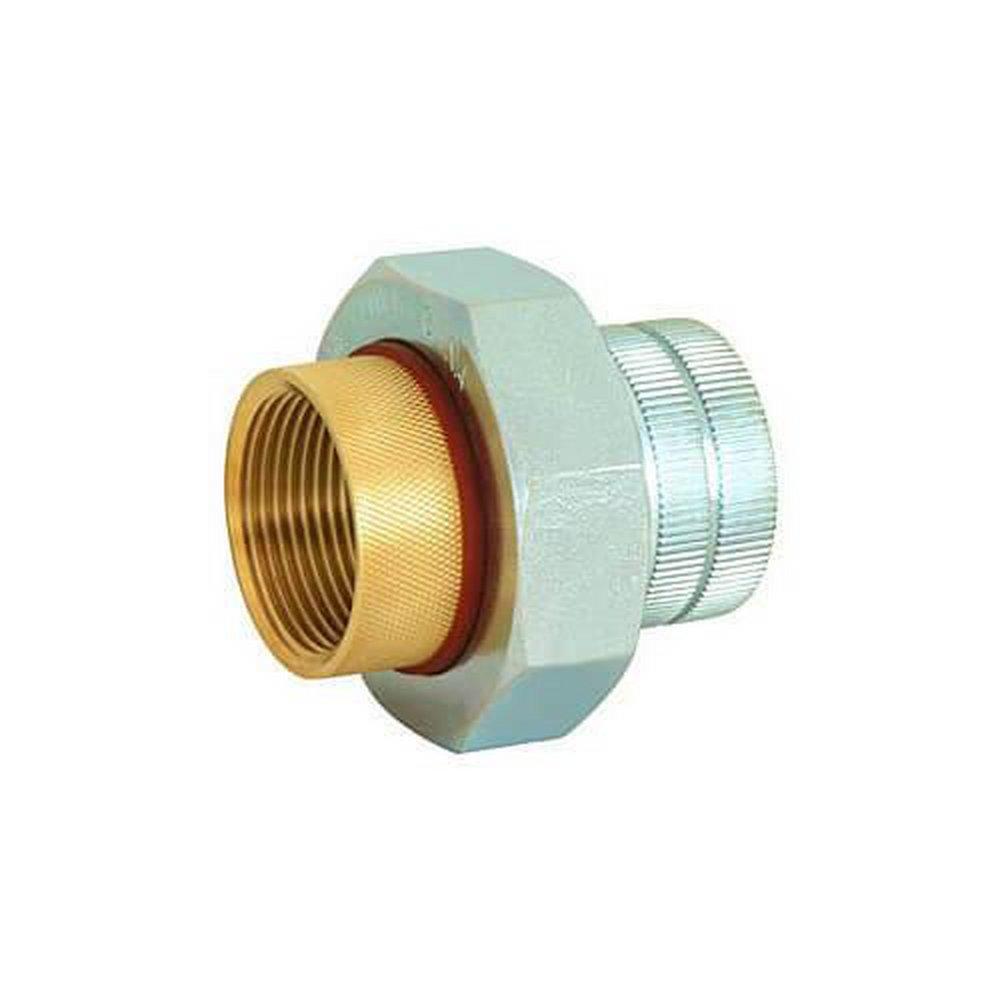

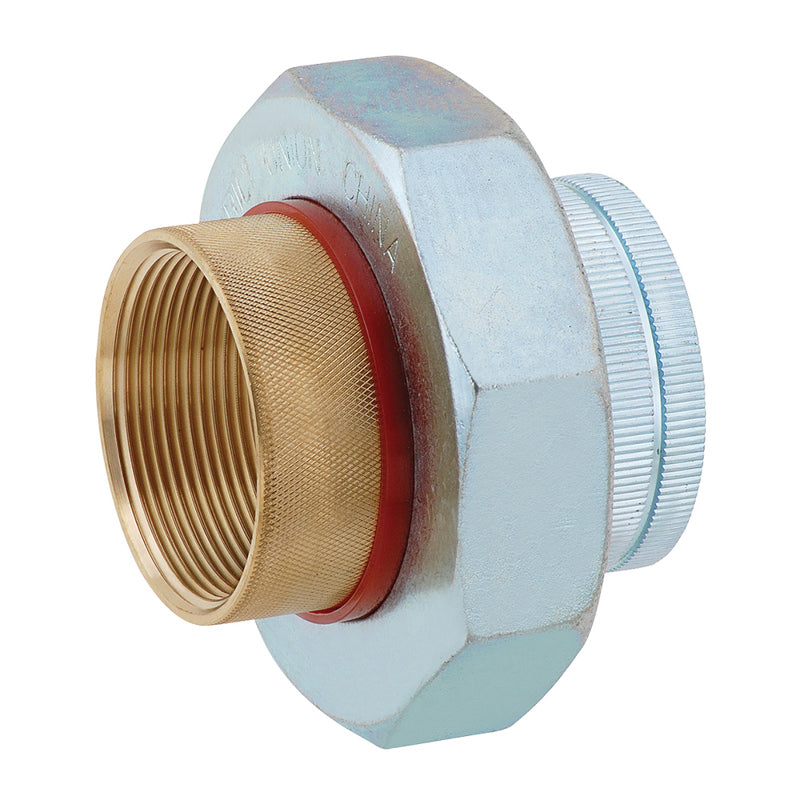

Matco-Norca DUN-EA08LF 2 inches Female x BPT Dielectric Union, Lead Free

Product Description

The MATCO-NORCA DUN-EA08LF is a 2" Female x BPT Dielectric Union, designed to be lead-free. It is rated to 180°F at 250 PSI and features threaded ends that comply with ANSI B1.20.1 and solder ends that comply with ANSI B16.22. The union is constructed with a steel nut, silicone rubber gasket, and a nylon insert.

• 250 PSI
• Rated to 180°F at 250 PSI
• Threaded end comply with ANSI B1.20.1

Product Highlights

This lead-free dielectric union ensures safe and reliable connections in plumbing systems, preventing corrosion between dissimilar metals.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: DUN-EA08LF

Technical Specifications

• Size: 2"
• Lead Free: Yes
• Product Type: Dielectric Union
• Connection Type: FNPT x BPT
• Material: Brass, Steel, Rubber, Plastic
• Shape: Round
• ANSI: ANSI B-1.20.1, ANSI B-16.22
• ASTM: ASTM A-108, ASTM B-16
• End Connection 1: FIPS
• End Connection 2: BPT
• End Connections: FIPS x BPT
• Fitting Size 1: 2 in
• Fitting Size 2: 2 in
• Fitting Sizes: 2 in
• Fitting Type: Dielectric Union
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 4-7/50 in
• Material Type: EPDM, Nylon
• Pressure - Maximum: 250 psi
