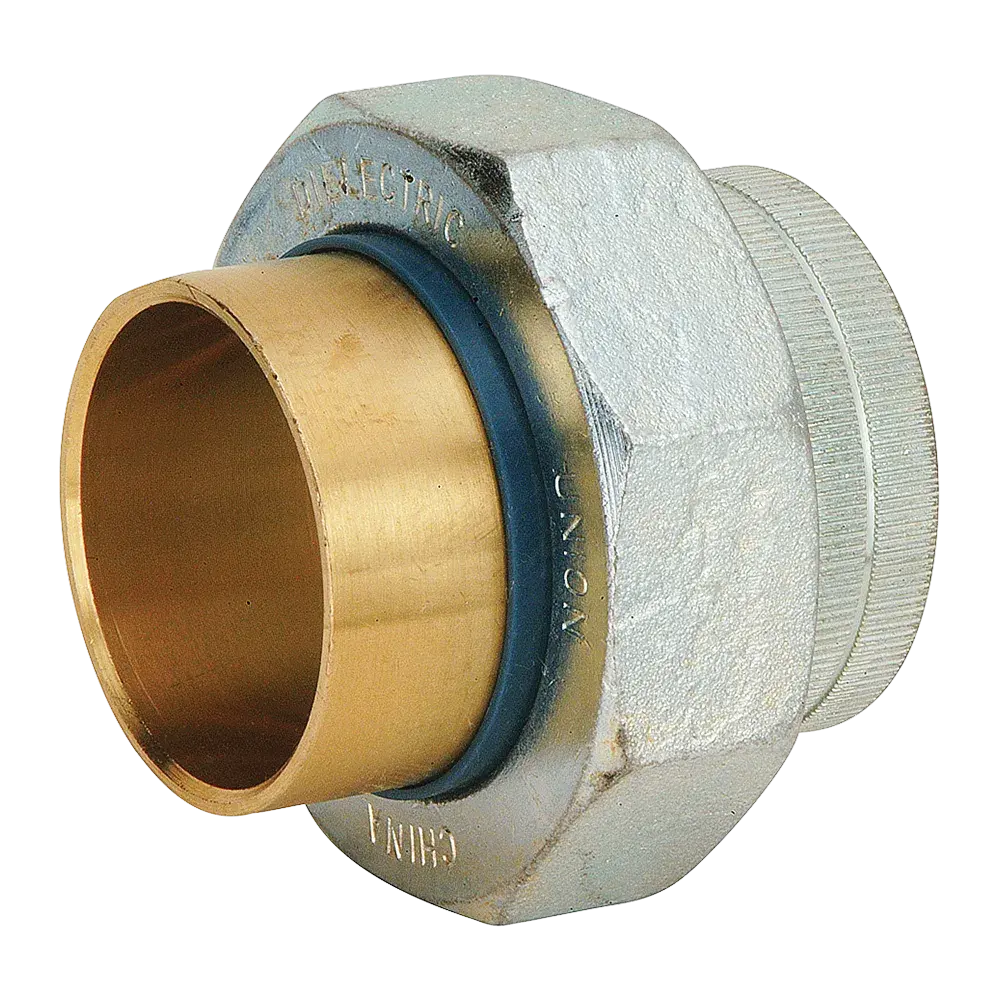

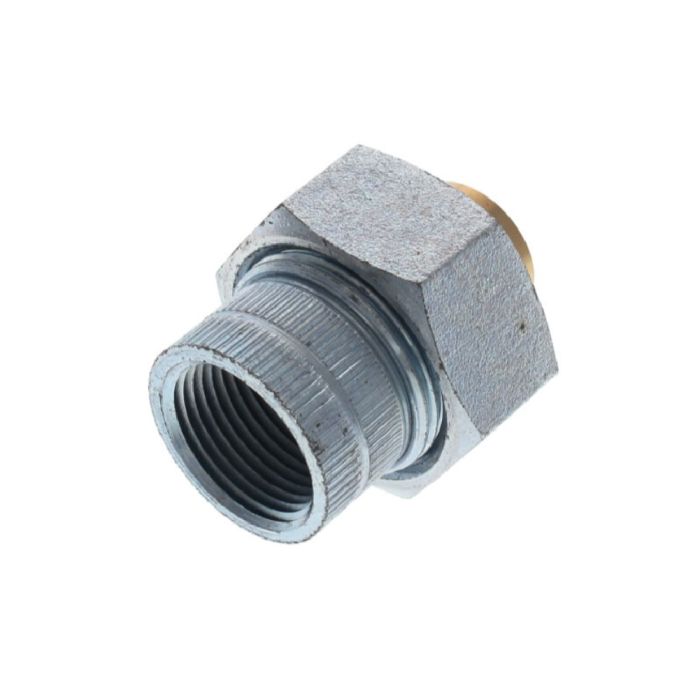

Matco-Norca DUN-7559LF Dielectric Union 3/4 inches FIP x 1/2 inches Sweat

Product Description

The MATCO-NORCA DUN-7559LF lead-free dielectric union (Female X Sweat) is essential for joining diverse metal piping systems, safeguarding against corrosion and stray electrical currents. Available in sizes 1/2" to 3/4" X 1/2", they offer versatile solutions for different needs.

• Prevents the deterioration of the pipe connections and stray induced electrical currents
• Used to properly connect dissimilar metal piping
• Meets NSF 372 lead content requirements

Product Highlights

This union fitting ensures reliable performance in demanding environments. It has a pressure rating of 250 PSI at 80 deg F and 125 PSI at 180 deg F.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: DUN-7559LF

Technical Specifications

• Pressure Rating: 250 PSI @ 80 00b0F, 125 PSI @ 180 00b0F
• Connection Type: FIP x SWT
• Dimensions: 3/4" X 1/2"
• Connection Size 1: 3/4 in
• Connection Size 2: 1/2 in
• Connection Type 1: FIP
• Connection Type 2: Sweat
• Fitting Type: Union
• Material: Brass/EPDM/Nylon/Steel
• Finish: Zinc-Coated
