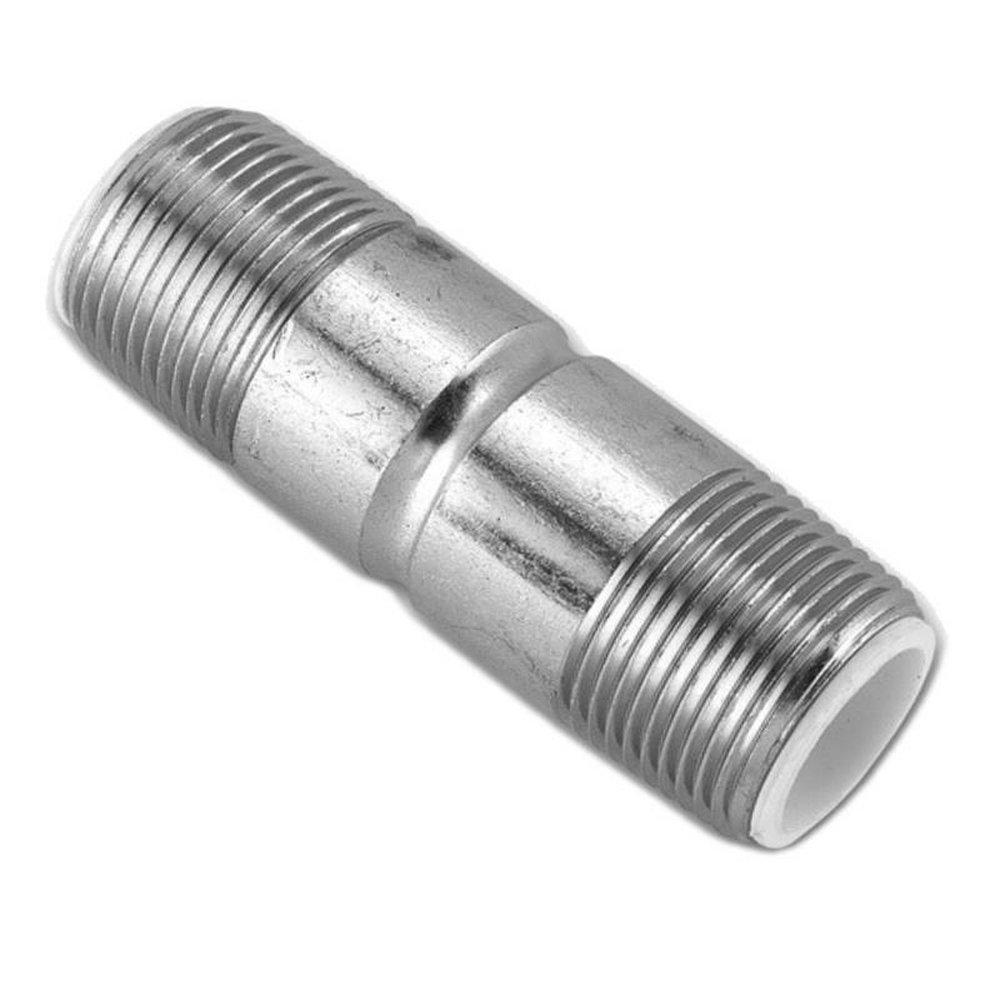

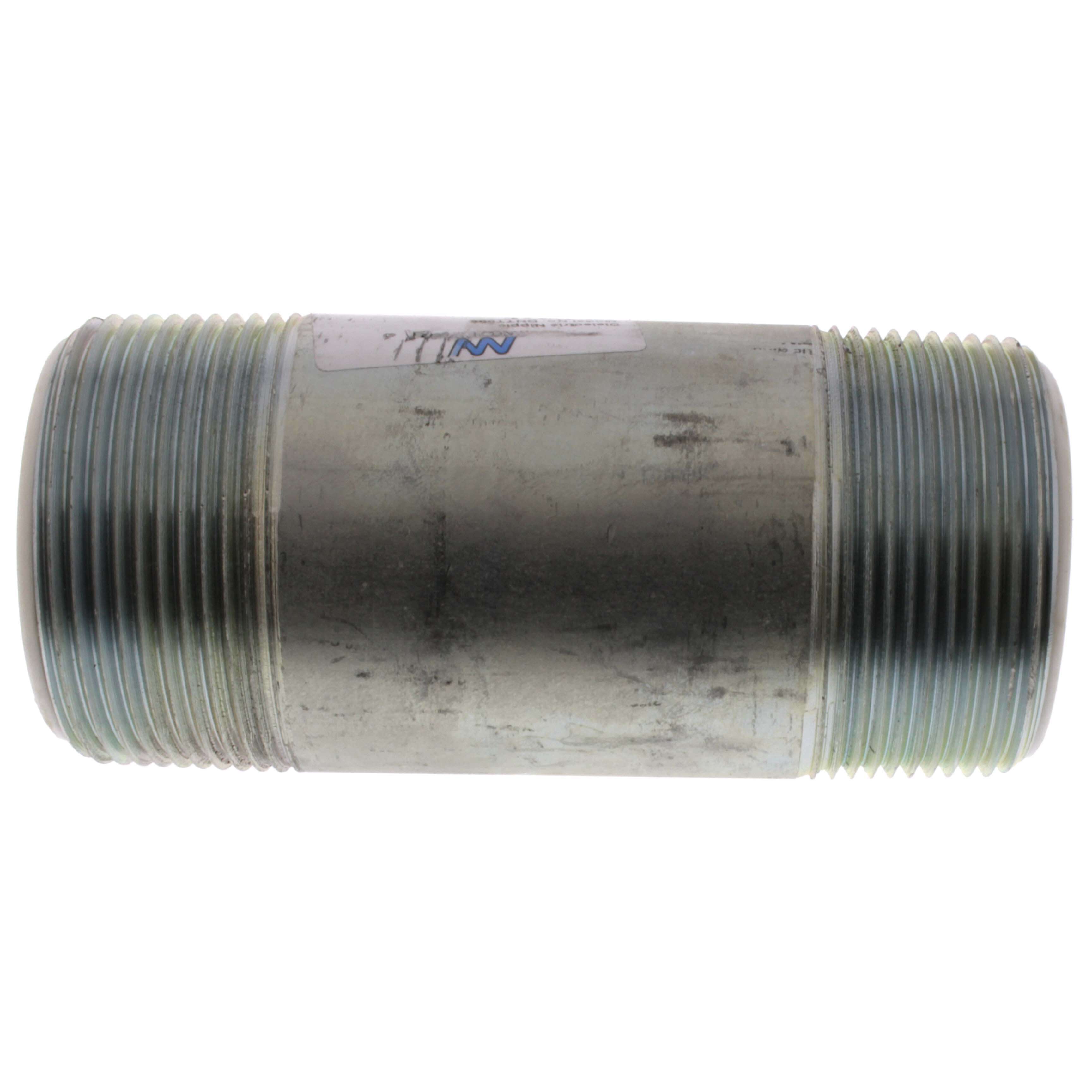

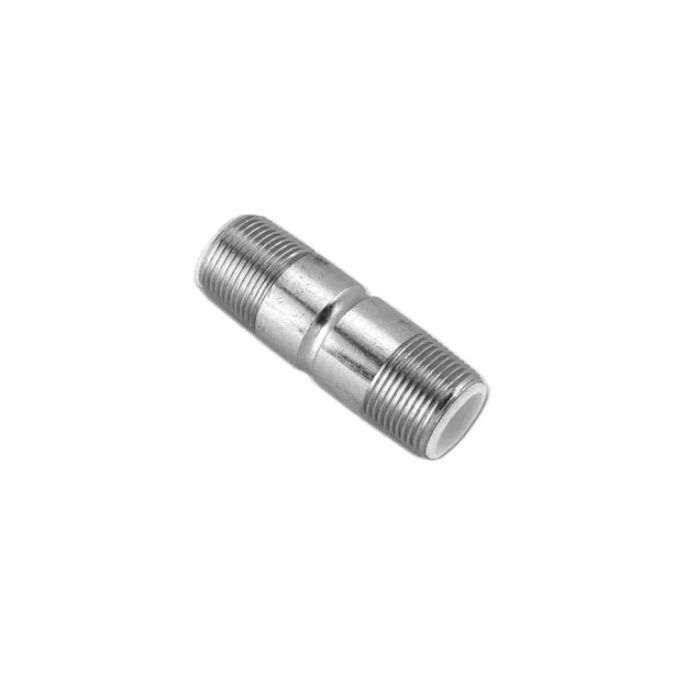

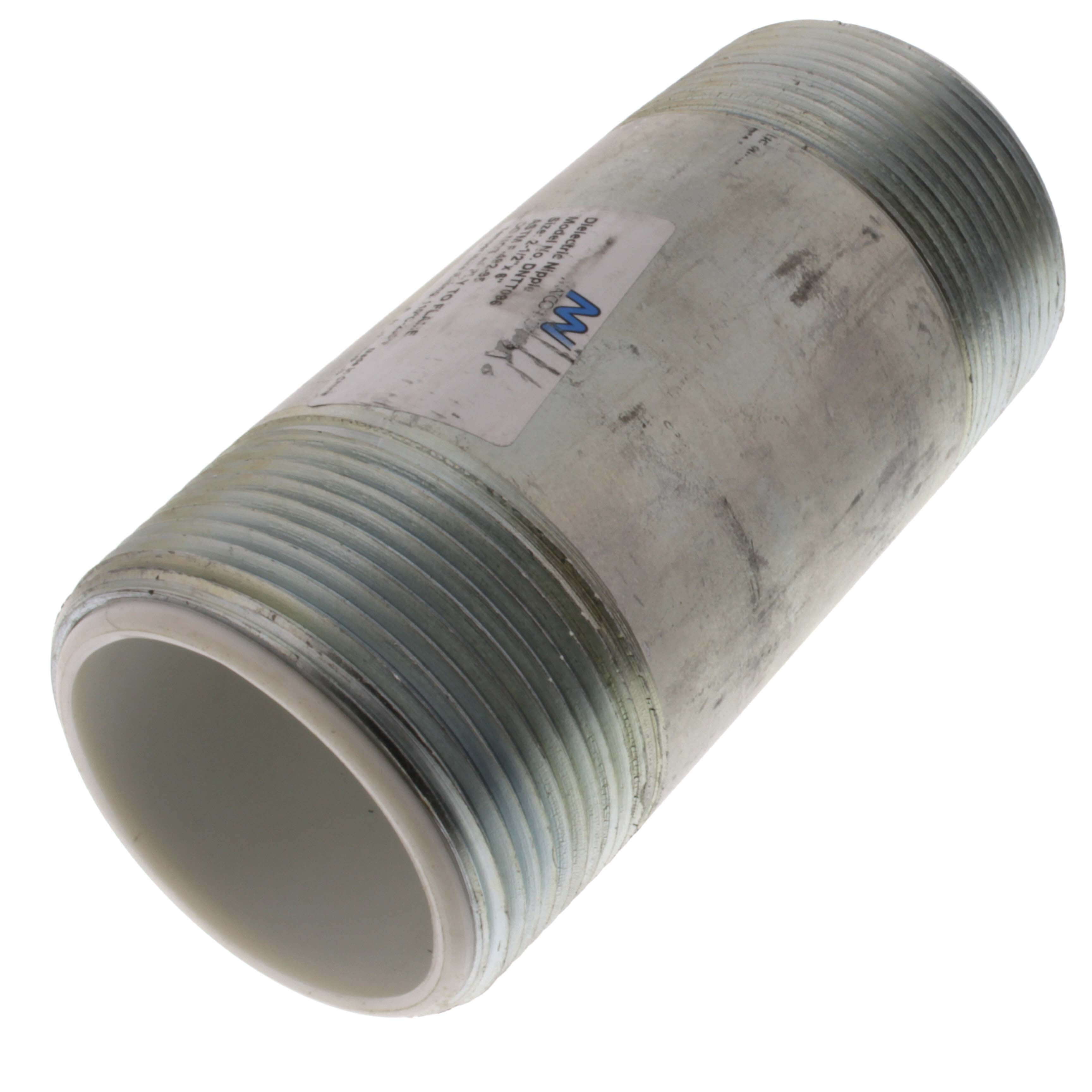

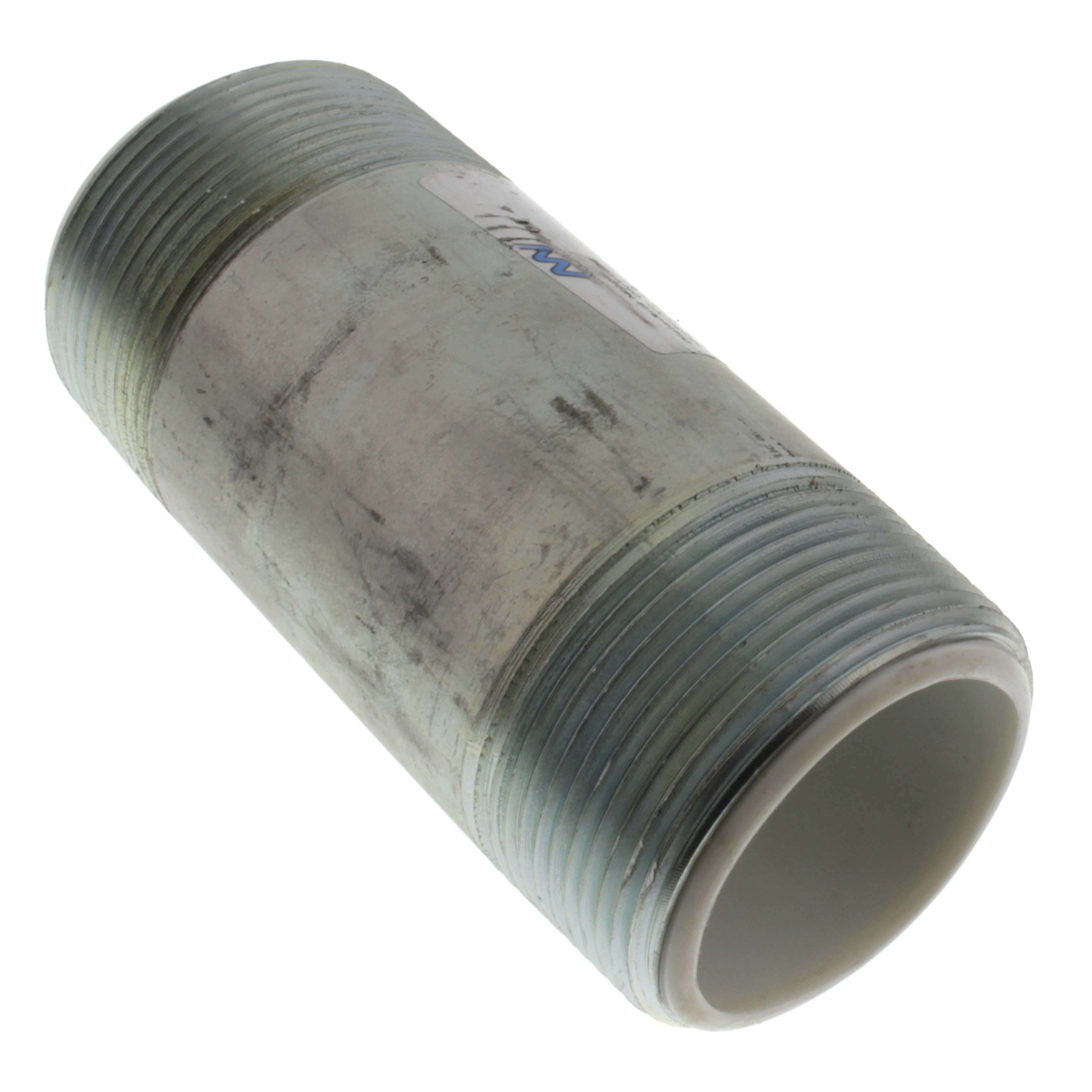

Matco-Norca DNTT096 6 x 2-1/2 in. Galvanized Dielectric Nipple

Product Description

The Matco-Norca DNTT096 6 x 2-1/2 in. Galvanized Dielectric Nipple is used to properly connect different metal piping. It prevents the deterioration of pipe connections and stray induced electrical currents. This galvanized steel schedule 40 nipple meets ASTM F-492-95 and is temperature rated to 230 F.

• Galvanized
• Thread x Thread
• Meets ASTM F-492-95

Product Highlights

The Matco-Norca DNTT096 Dielectric Nipple is made of galvanized steel and prevents pipe deterioration.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: DNTT096
• Country of Origin: Import

Technical Specifications

• Size [Features]: 2-1/2" x 6"
• Material [Features]: Galvanized Steel
• Application [Features]: Schedule 40
• Product Type [Features]: Dielectric Nipple
• MPN: MN-DNTT096
• Manufacturer: Matco-Norca
• Length (Inches): 6"
• Material: Galvanized Steel
• Type: Dielectric Nipple
• Diameter (In.): 2 1/2
• End Style: MNPT
• Finish: Galvanized
• Length: 6 in
• Nominal Size: 2-1/2 in
• Manufacturer #: DNTT096
• Pressure Rating: 300 psi
• Temperature Rating: 230 deg F
• Connection Size 1: 2-1/2 in
• Connection Size 2: 2-1/2 in
• Connection Type 1: Threaded
• Connection Type 2: Threaded
• Connection Type: Threaded|Threaded
• Fitting Type: Nipple
• Diameter: 2-1/2"
• Country of Origin: China
