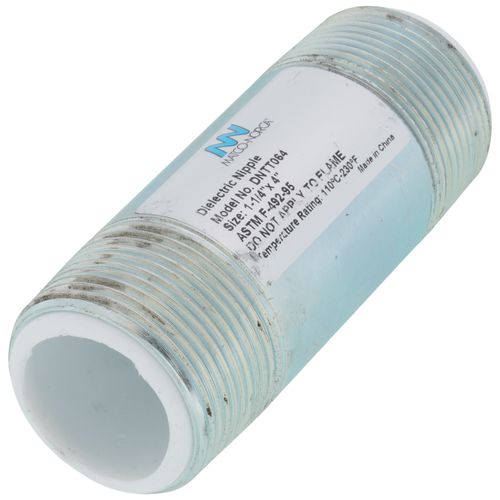

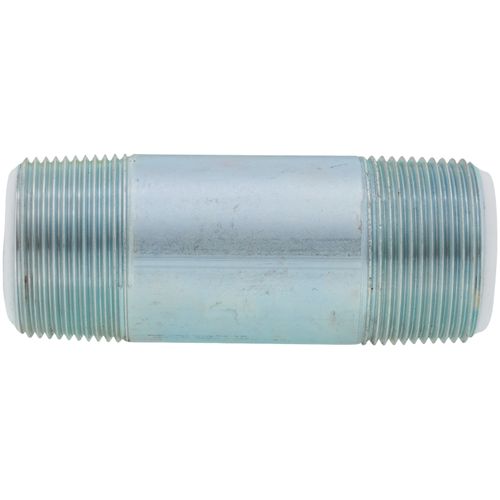

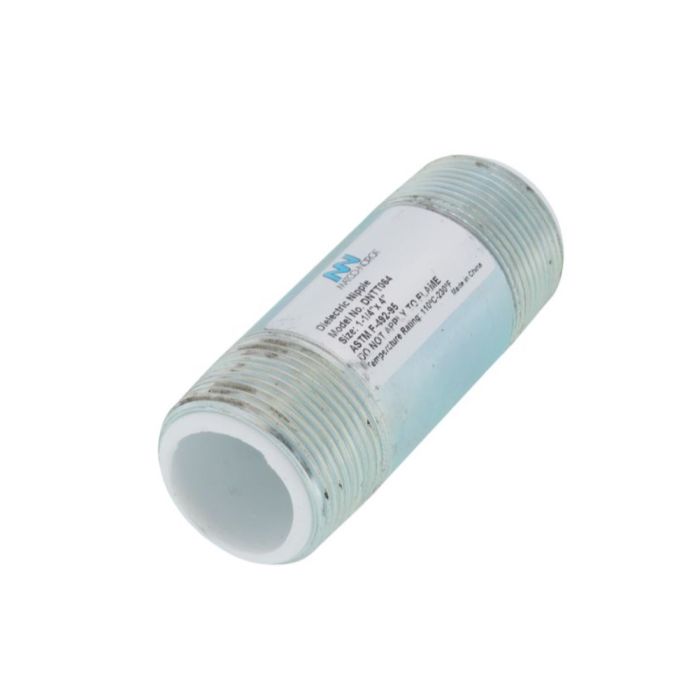

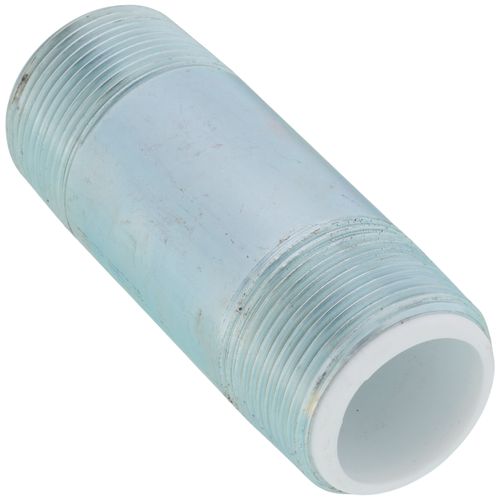

Matco-Norca DNTT064 1-1/4 inches x 4 inches Galvanized Steel Dielectric Nipple w/ Pex Insulator

Product Description

The Matco-Norca DNTT064 is a dielectric nipple designed for connecting metal pipes. This product features a size of one and one-quarter inches by four inches. It is made from galvanized steel and includes a Pex insulator. The dielectric nipple aids in preventing corrosion at joint connections and reduces the risk of stray electrical current interference. It complies with ASTM F-492-95 standards and is rated for temperatures up to two hundred thirty degrees Fahrenheit.

• Size: 1-1/4 inches x 4 inches
• Material: Galvanized Steel
• Application: Schedule 40

Product Highlights

Ideal for applications where metal pipe connections exist, this dielectric nipple helps ensure safety and durability in plumbing systems.

Product Information

Standard Information

• MPN: DNTT064
• Material: Galvanized Steel

Technical Specifications

• Size: 1-1/4 inches x 4 inches
• End Style: MNPT
• Finish: Galvanized
• Pressure Rating: 300 psi
• Temperature Rating: 230 degrees Fahrenheit
• Schedule Rating: SCH 40/STD
• Domestic/Import: Import
• Fitting Type: Dielectric Nipple
