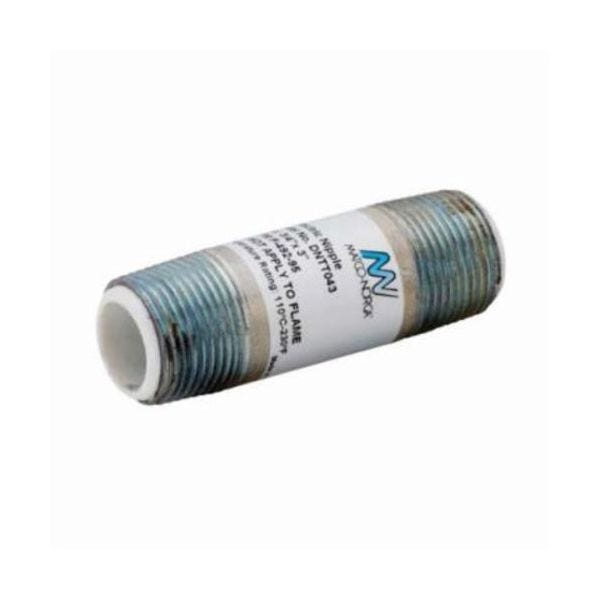

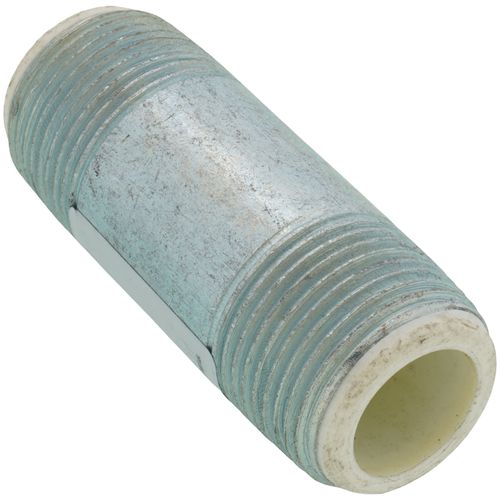

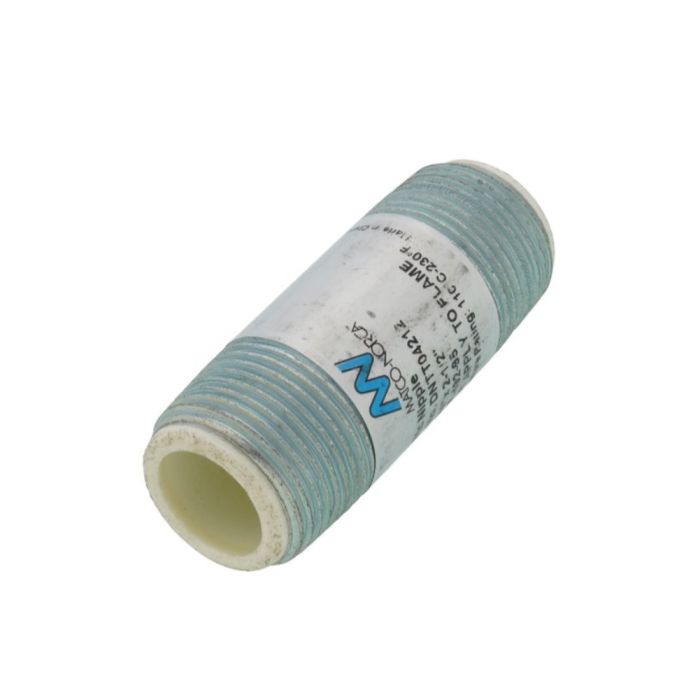

Matco-Norca DNTT044 Galvanized Steel Dielectric Nipple 3/4 inches x 4 inches

Product Description

The Matco-Norca DNTT044 is a dielectric nipple made from galvanized steel, measuring three-fourth inches by four inches. This component is designed to connect different metal piping systems effectively. It helps to avoid the deterioration of pipe connections and prevents stray electrical currents. It meets ASTM F-492-95 standards and is rated for temperatures up to two hundred thirty degrees Fahrenheit.

• Prevents pipe connection deterioration
• Temperature rated to two hundred thirty degrees Fahrenheit
• Threaded connections on both ends

Product Highlights

The DNTT044 ensures reliable and safe connections in piping systems.

Product Information

Standard Information

• Product Type: Dielectric Nipple
• Manufacturer: Matco-Norca

Technical Specifications

• Size: 3/4 inches x 4 inches
• Material: Galvanized Steel
• End Connection: Threaded x Threaded
• Finish: Galvanized
• Pressure Rating: 300 PSI
• Temperature Rating: 230 Deg F
• Type: Dielectric, Straight
• End Style: NPT
• Schedule Rating: SCH 40/STD
• UPC / GTIN: 082647060104
