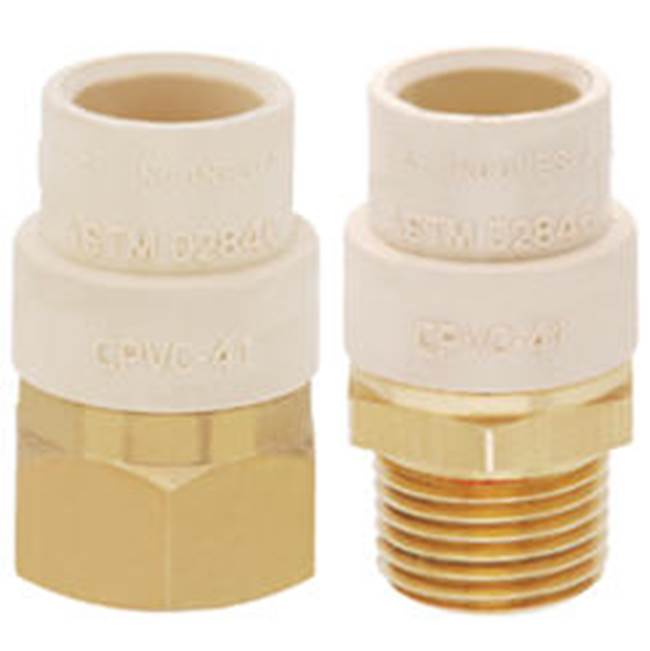

Matco-Norca CPVCMA06LF Transition Adapter 1-1/4 Inch

Product Description

The MATCO-NORCA CPVCMA06LF is a transition adapter with a unique molded CPVC/brass design featuring an internal "knurl" and EPDM o-ring for enhanced reliability. It is suitable for cold and hot water distribution systems. The adapter has a 1-1/4 inch MPT x CTS Hub end style and a large brass hex that allows for easy connection to IPS sized pipe and fittings. It has a working pressure of 100 psi.

• Unique molded CPVC/brass design with internal "knurl" and EPDM o-ring
• Large brass hex allows for easy connection to IPS sized pipe and fittings
• Lead free

Product Highlights

Transition adapter with molded CPVC/brass design, EPDM o-ring, and large brass hex for easy connection to IPS sized pipe and fittings.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: CPVCMA06LF

Technical Specifications

• Type: Transition Adapter
• Series: TMS
• Nominal Size: 1-1/4 Inch
• End Style: MPT x CTS Hub
• Working Pressure: 100 psi
• Material: CPVC/Brass
• Material Specification: ASTM D2846
• Color: Tan
• Temperature Rating: 180 deg F
• Warranty: Lifetime Limited
• Standard/Approvals: ANSI Specified, NSF Approved
• Fitting Size: 1-1/4 in
• Pressure Rating: 100 psi
