MATCO-NORCA BARVY-0500 1/2-Inch Steam Angle Radiator Valve

Product Description

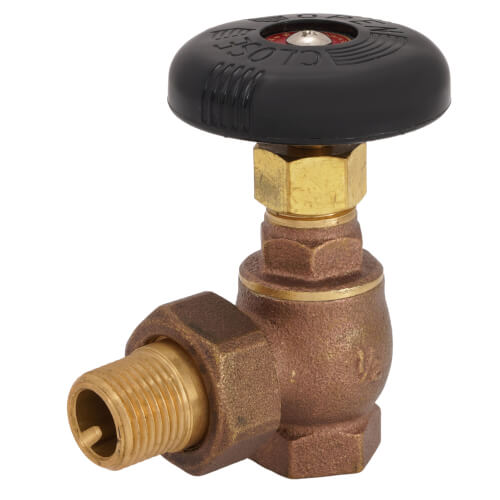

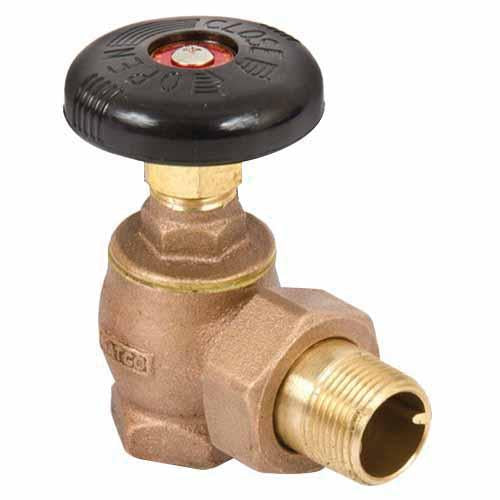

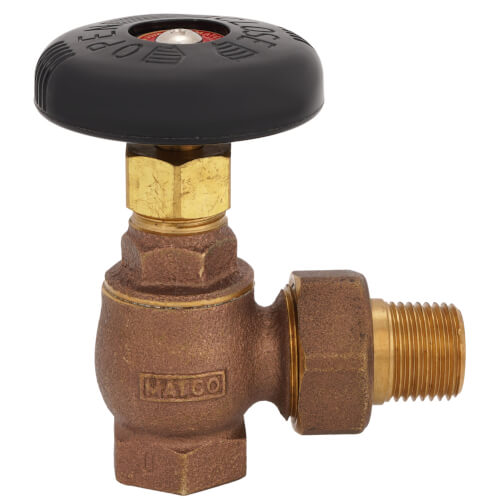

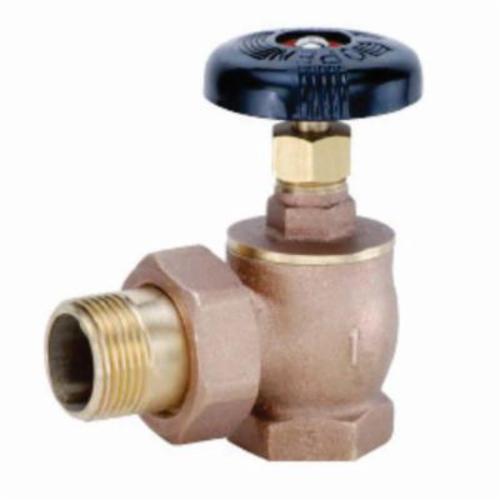

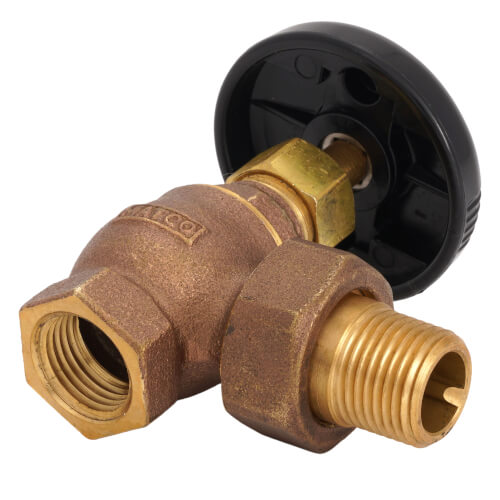

The MATCO-NORCA BARVY-0500 is a steam angle radiator valve designed for heating applications. This valve has a nominal size of one-half inch and is constructed from brass for durability. It features a female threaded (FNPT) x male threaded (MNPT) union connection, making it versatile for installation in various heating systems. The valve can be operated with a handwheel actuator and includes PTFE gland packing for reliable sealing.

• 1/2-inch nominal size
• Brass construction
• FNPT x MNPT union threaded connection

Product Highlights

This valve is designed for steam service and can handle pressures up to sixty psi. It is suitable for steam radiator applications, offering reliable performance and ease of use.

Product Information

Standard Information

• Manufacturer Part Number: BARVY-0500
• Nominal Size: 1/2 inch

Technical Specifications

• Body Pattern: Angle
• Connection Type: FNPT x MNPT Union
• Material: Brass
• Application: Heating
• Max Pressure (PSI): 60
• Type: Steam Radiator Angle Valve
• Pressure Rating: 60 psi WOG
• Actuator Type: Handwheel
• Trim Material: Brass
• Softgoods Material: PTFE Gland Packing Seat Packing
• Height: 4.02 inches
• Width: 2.17 inches
• Top to Inlet Center: 2.76 inches
• Domestic/Import: Import
