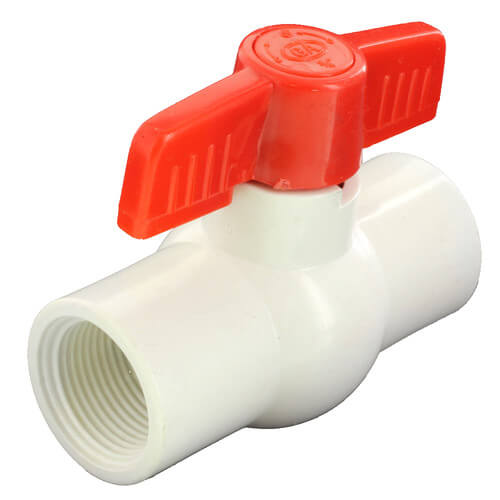

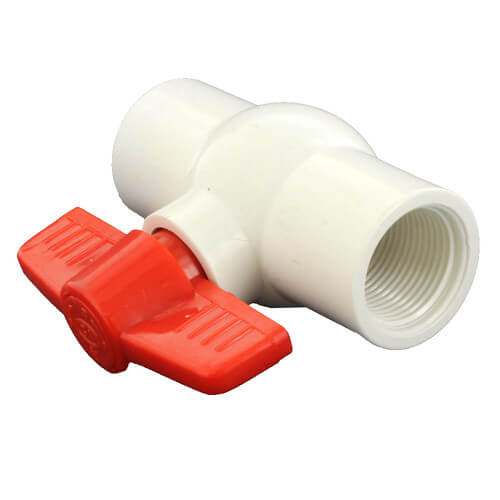

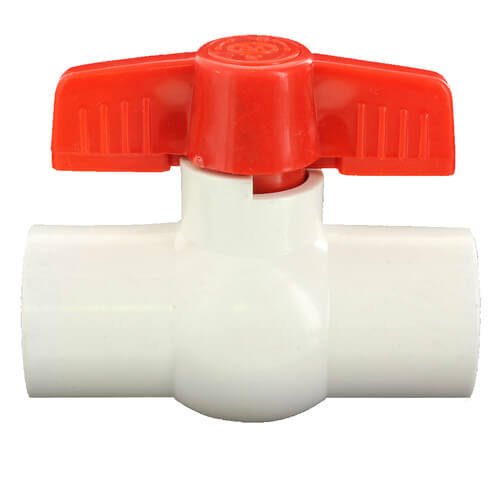

Matco-Norca 770T04N Economy Pvc Ball Valve - Threaded Ends 3/4 inches

Product Description

The MATCO-NORCA 770T04N is an economy PVC ball valve with threaded ends, ideal for plumbing applications. It features a 3/4" valve suitable for most plumbing fixture sizes. This valve has a pressure rating of 150 PSI at 73°F. Its solvent-based installation facilitates optimal water flow.

• 3/4" FNPT x FNPT Connection
• Ideal for plumbing applications
• Fits SCH 40/STD or 80/XH PVC pipe

Product Highlights

This PVC ball valve features threaded connections and is suitable for plumbing applications. It offers easy, solvent-based installation.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 770T04N

Technical Specifications

• Size: 3/4"
• Material: PVC
• Connection Method: Threaded
• Connection Type: FNPT x FNPT
• Handle Style: T-Handle
• Pressure Rating: 150 PSI
• Application: Plumbing
• Maximum Working Temperature: 73 F
• Type: Economy Pattern
• Series: 770N
• Nominal Size: 3/4 in
• End Style: Thread
• Temperature Rating: 73 deg F
• Ball Material: PVC
• Top to Inlet Center: 2.2 in
• Body Material: PVC
• Trim Material: PVS Stem and PTFE Seat
• Softgoods Material: EPDM
• Domestic/Import: Import
• Connection Size: 3/4 in.
• Connection 2 Size: 3/4 in.
• Includes: Handle
• Operating Type: Manual
• Height: 3 in.
• Width: 3.5 in.
• Brand Name: Matco-Norca
