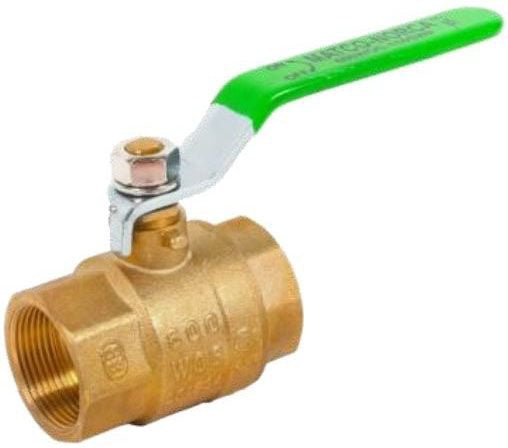

Matco-Norca 759T05LF Lead Free Ball Valve 1 inches IP Full Port 600 WOG

Product Description

Matco-Norca 759T05LF is a lead-free 1 inch IP full port ball valve rated 600 psi WOG and 150 psi SWP. It features a forged C46500 brass body, C46500 chrome-plated solid brass ball, C36000 brass stem, PTFE seats and EPDM O-ring seals. The valve uses female threaded end connections, has an end-to-end length of 2.8 inches and includes a blowout-proof stem with lever handle actuation for commercial and light industrial media.

• Full port 1" IP ball valve with female threaded x female threaded connections and 2.8 inch end-to-end distance
• 600 psi WOG and 150 psi SWP pressure ratings; suitable for water, oil, air, gas and steam
• Forged C46500 brass body and chrome-plated C46500 brass ball, PTFE seats, EPDM O-ring seals, blowout-proof stem

Product Highlights

Lead-free 1" full port ball valve, forged brass body, PTFE seats and EPDM seals, 600 psi WOG / 150 psi SWP, female threaded connections.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 759T05LF
• Country of Origin: Import

Technical Specifications

• Brand: Matco-Norca
• Manufacturer Part Number: 759T05LF
• Product Name: Lead Free Ball Valve
• Size: 1 inch (1")
• Port Type: Full port
• End Connection: Female threaded x female threaded
• End Style: IP (internal pipe)
• End-to-End Distance: 2.8 in
• Body Material: C46500 forged brass
• Ball Material: C46500 chrome-plated solid brass
• Stem Material: C36000 brass
• Seat Material: PTFE
• Seal Material: EPDM O-ring
• Handle Material: Steel
• Actuator Type: Lever handle
• Pressure Rating: 600 psi WOG (water/oil/gas)
• Steam Working Pressure: 150 psi SWP
• Lead Free: Yes
• Applicable Standards: CSA, MSS-SP-110, ANSI B1.20.1, NSF 61/372, ISO 9002, CUPC
• Applications: Water, Oil, Air, Gas, Steam; commercial and light industrial
• UPC: 08264707656
