Matco-norca 754pxcede05lf 1 in Pex Ball Valve Lead-free

Product Description

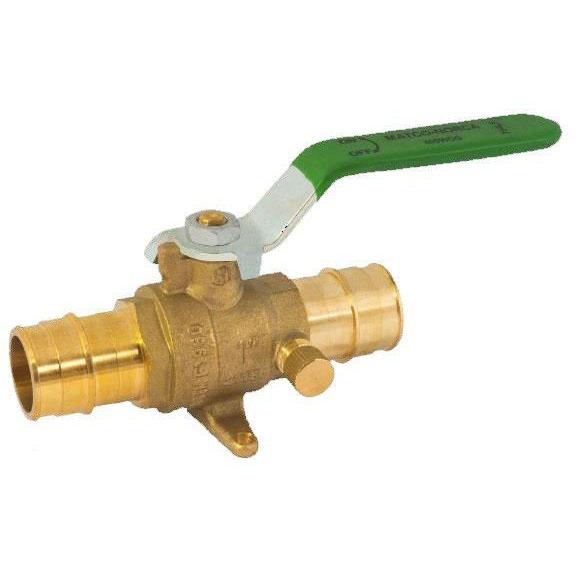

The MATCO-NORCA 754pxcede05lf is a 1-inch lead-free, full-port ball valve engineered for cold expansion PEX systems using the ASTM F1960 standard. Featuring a C46500 brass body, ball, and stem, this valve delivers a 400 psi pressure rating with a blow-out proof stem for long-term, leak-resistant service. The lever handle provides quarter-turn shutoff, and the included waste drain and drop ear elbow add versatile serviceability in tight residential or light commercial plumbing installations. Licensed plumbers install this valve as a reliable inline shutoff on PEX cold expansion distribution lines.

This valve is sized for 1-inch PEX-to-PEX cold expansion connections per ASTM F1960, making it a direct fit for Uponor-style cold expansion PEX systems. Its full-port design minimizes flow restriction across domestic water supply lines, hydronic heating distribution, and similar plumbing applications. The drop ear elbow inclusion allows the valve to be wall-mounted where a clean, supported connection point is required. The PTFE seats and EPDM O-ring seals hold up in both hot and cold water service typical of residential and light commercial builds.

Key Features

• Lead-free C46500 brass body, ball, and stem — meets ANSI/NSF 61 potable water requirements
• Cold expansion PEX x PEX end connections per ASTM F1960
• 400 psi pressure rating for demanding supply-line applications
• Full-port design for unrestricted flow
• Blow-out proof stem construction for added safety
• Includes waste drain and drop ear elbow for wall-mounted or serviceable installs
• PTFE seats and EPDM O-ring seals for durable, drip-free shutoff

Compatibility

Designed for use with 1-inch cold expansion PEX systems per ASTM F1960, including Uponor-style cold expansion PEX installations.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the main water supply and relieve system pressure before making any connections. Use the appropriate cold expansion tool and PEX expansion rings rated for ASTM F1960 to seat connections properly. Do not over-stress the drop ear elbow mounting — secure it to framing with appropriate fasteners before pressurizing the system.

Technical Specifications

• Nominal Size: 1 inch
• End Connection: PEX x PEX Cold Expansion
• End to End Distance: 4.26 inches
• Port Type: Full Port
• Pressure Rating: 400 psi
• Actuation Type: Lever Handle
• Ball Material: C46500 Brass
• Body Material: C46500 Brass
• Stem Material: C46500 Brass
• Seat Material: PTFE
• Seal Material: EPDM O-Ring
• Handle Material: Q235 Steel
• Applicable Standards: ANSI/NSF 14/61, ASTM F1960, cUPC
• Lead-Free: Yes
• Inclusions: Blow-Out Proof Stem, Waste Drain, Drop Ear Elbow

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 754pxcede05lf
