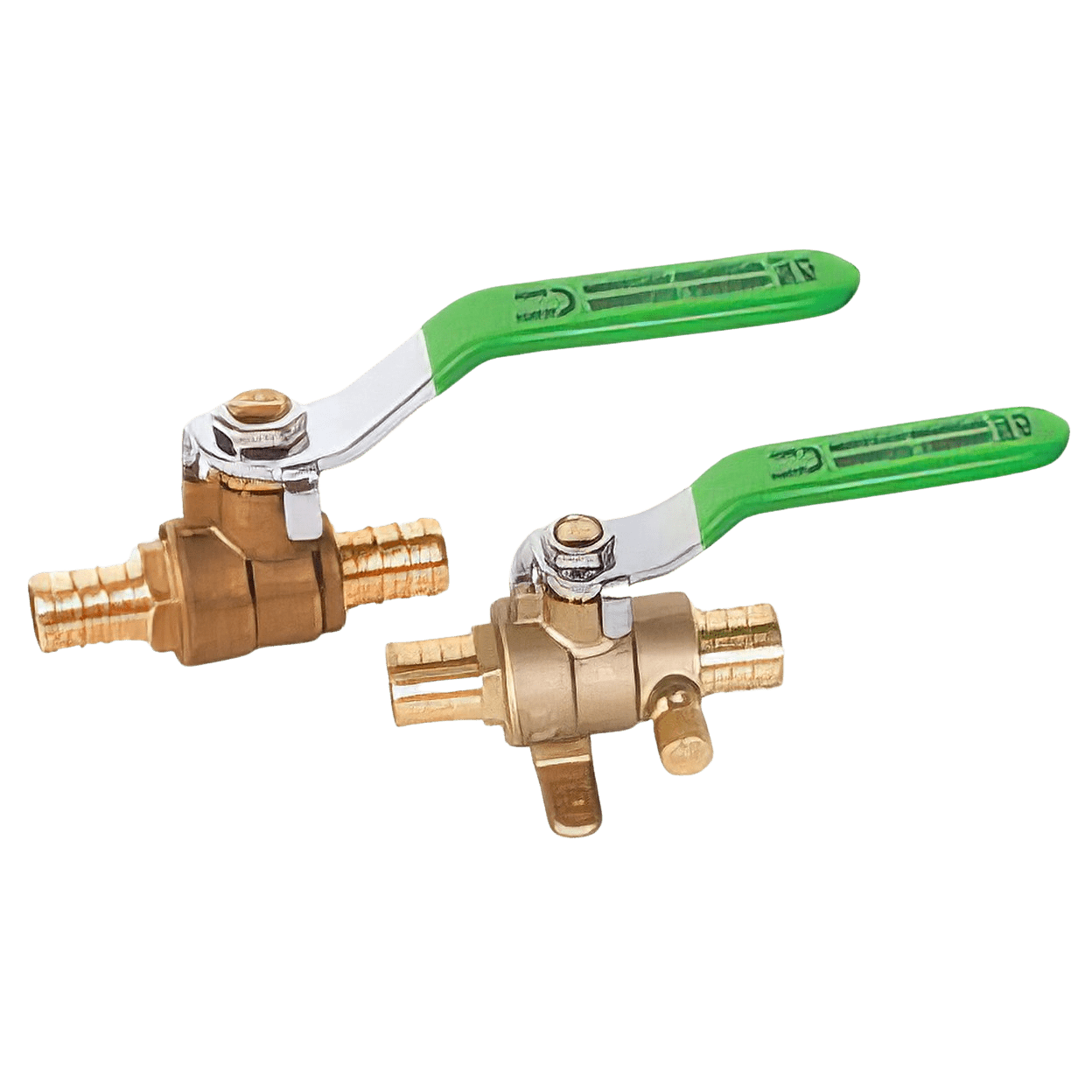

Matco-Norca 754PX08LF 2 inch PEX Crimp Lead-Free Ball Valve

Product Description

The Matco-Norca 754PX08LF is a two-inch PEX crimp lead-free ball valve. This product is suitable for various applications, including gas, oil, and water. Its design features a forged brass body and ball, maximizing durability. The valve operates using a lever handle, making it easy to use and efficient in controlling flow.

• Full port design for maximum flow.
• Lead-free, ensuring compliance with health standards.
• Durable forged brass construction.

Product Highlights

This ball valve fits PEX crimp connections and handles a maximum pressure of six hundred psi WOG.

Product Information

Standard Information

• Manufacturer: Matco-Norca
• Part Number: 754PX08LF

Technical Specifications

• Type: Full Port, Lead-Free
• Nominal Size: 2 inch
• Connection Type: PEX Crimp
• Maximum Pressure Rating: 600 psi WOG
• Media: Gas, Oil, Water
• Number of Ports/Ways: 2
• Body Material: Forged Brass
• Ball Material: Forged Brass
• Seat: PTFE
• Seal: NBR
• Stem: Forged Brass
• Bonnet: Forged Brass
• Actuation/Operator: Lever Handle
• Dimensions: 5.32 inch L x 2.49 inch Center to Top
• Includes: Waste Drain and Drop Ear
• Standards/Approvals: ASTMF-1807, UNS C37700, UNS C46500
