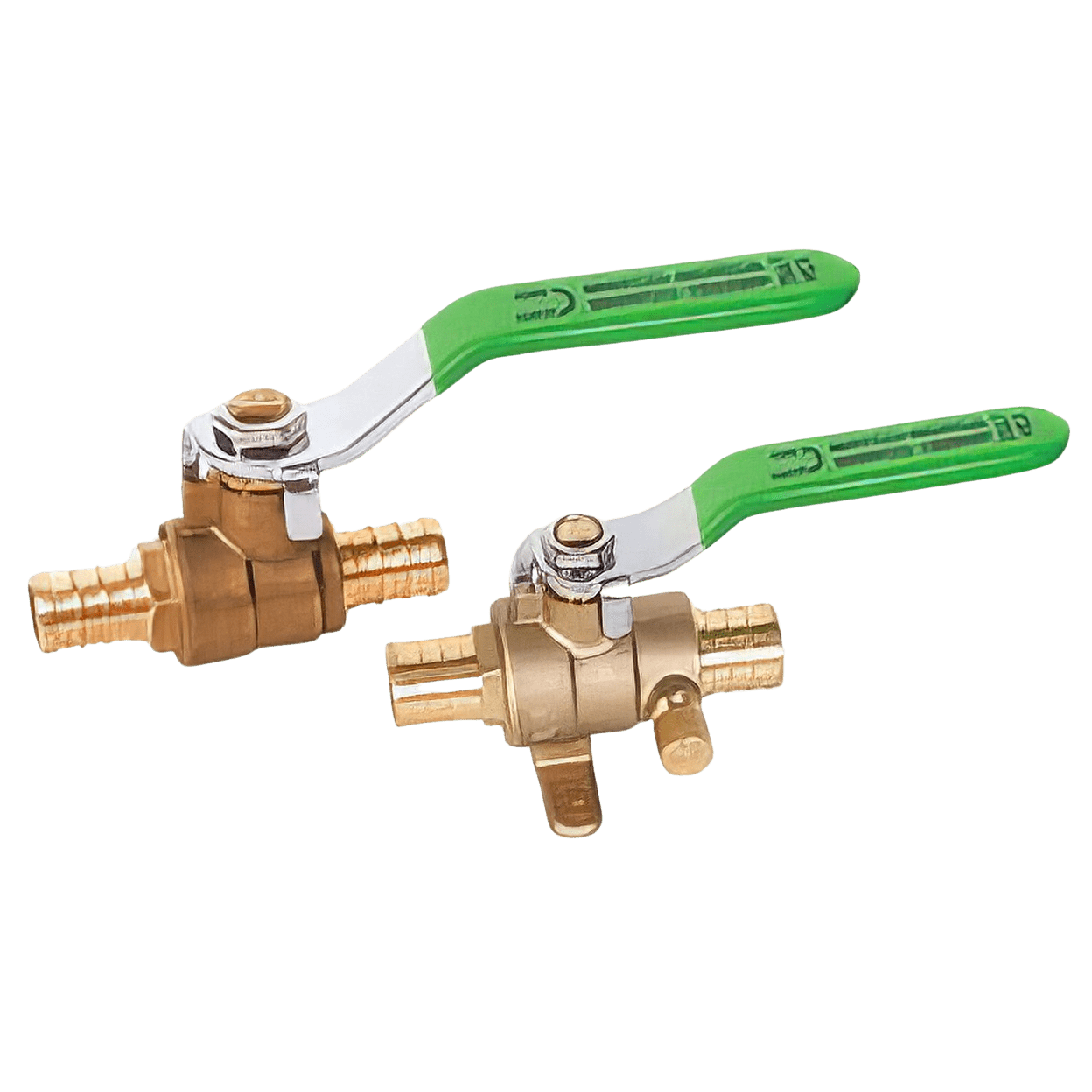

Matco-Norca 754PX07LF 1-1/2 inch PEX Crimp Full Port Lead-Free Ball Valve

Product Description

The Matco-Norca 754PX07LF is a lead-free, full port ball valve designed for PEX crimp connections. This valve measures one and one-half inches and is built for reliability in gas, oil, and water applications. Its construction features forged brass for both the body and ball, ensuring durability under pressure. Rated for a maximum working pressure of six hundred psi, it is suitable for various fluid media.

• Includes waste drain and drop ear
• Constructed from lead-free forged brass
• Standard actuation with a lever handle

Product Highlights

This valve meets ASTMF-1807 standards and is approved for use with UNS C37700 and C46500 materials. Its design allows easy installation and operation.

Product Information

Standard Information

• Brand: Matco-Norca
• MPN: 754PX07LF

Technical Specifications

• Item Name: Ball Valve
• Type: Full Port, Lead-Free
• Nominal Size: 1-1/2 inch
• Connection Type: PEX Crimp
• Maximum Pressure Rating: 600 psi WOG
• Media: Gas, Oil, Water
• Number of Ports/Ways: 2
• Seat: PTFE
• Body Material: Forged Brass
• Seal: NBR
• Ball Material: Forged Brass
• Stem: Forged Brass
• Bonnet: Forged Brass
• Actuation/Operator: Lever Handle
• Dimensions: 4.13 inch L x 2.21 inch Center to Top
• Includes: Waste Drain and Drop Ear
• Standards/Approvals: ASTMF-1807, UNS C37700, UNS C46500
