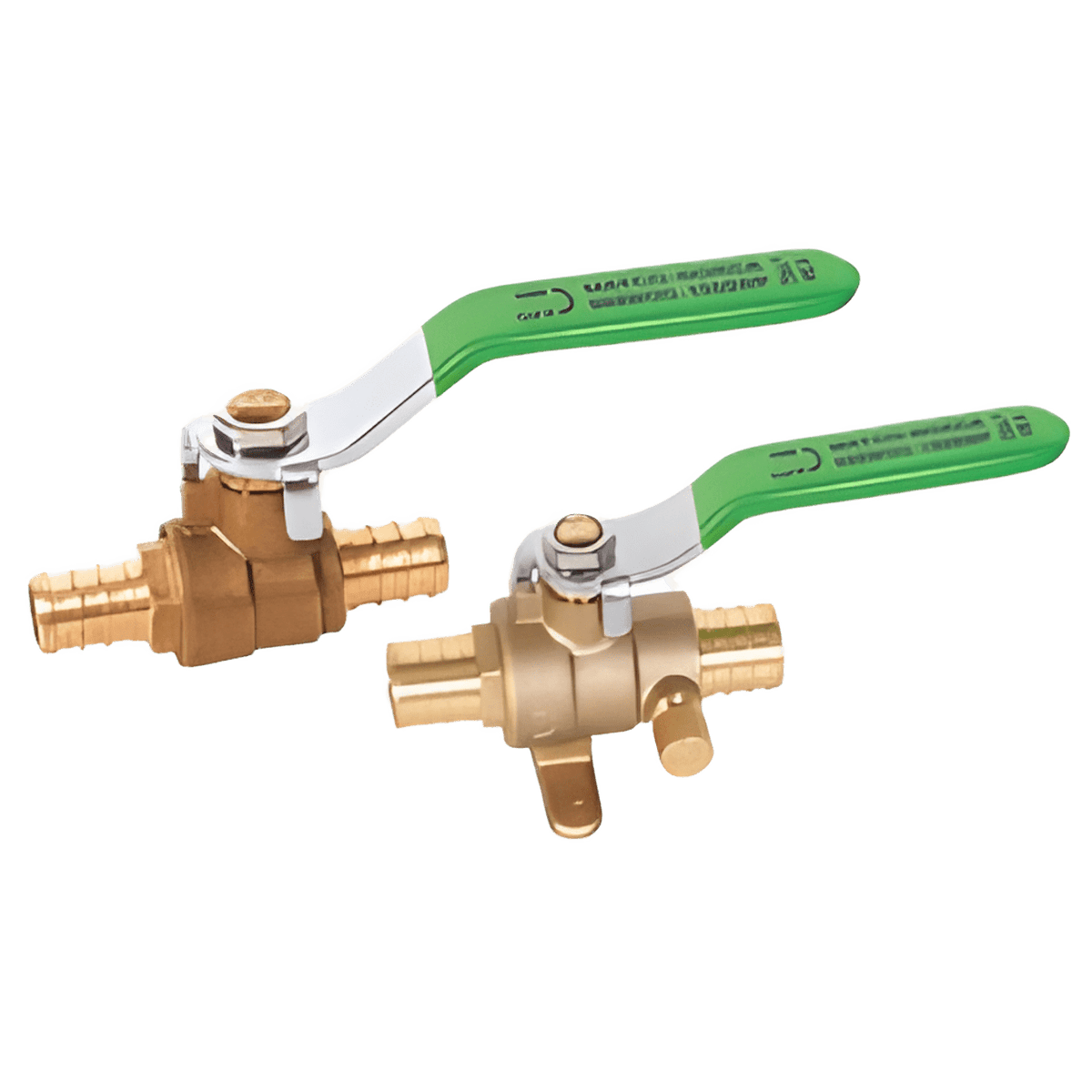

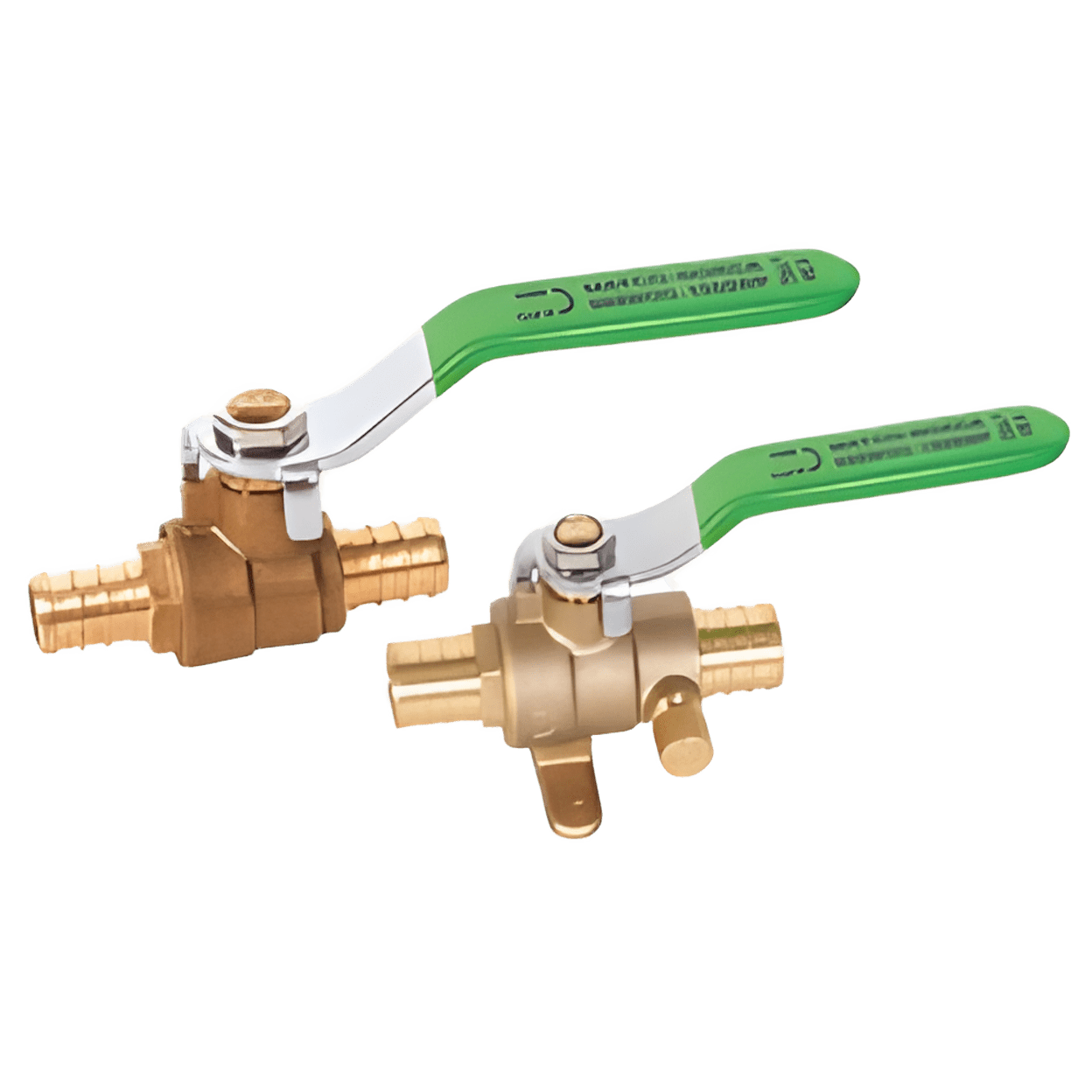

Matco-Norca 754PX06LF 1-1/4 inch PEX Crimp Ball Valve

Product Description

The Matco-Norca 754PX06LF is a lead-free ball valve designed for plumbing applications. This valve features a full port design with a nominal size of one and one-fourth inch. It uses PEX crimp connections and has a maximum pressure rating of six hundred psi WOG, making it versatile for media such as gas, oil, and water.

• Lead-free construction for safety
• Forged brass body and ball for durability
• Simple lever handle actuation

Product Highlights

This valve is ideal for residential and commercial plumbing systems. The lever handle allows for easy operation, ensuring reliable shut-off functionality.

Product Information

Standard Information

• Brand: Matco-Norca
• MPN: 754PX06LF

Technical Specifications

• Item Name: Ball Valve
• Type: Full Port, Lead-Free
• Nominal Size: 1-1/4 inch
• Connection Type: PEX Crimp
• Maximum Pressure Rating: 600 psi WOG
• Media: Gas, Oil, Water
• Number of Ports/Ways: 2
• Seat: PTFE
• Body Material: Forged Brass
• Seal: NBR
• Ball Material: Forged Brass
• Stem: Forged Brass
• Bonnet: Forged Brass
• Actuation/Operator: Lever Handle
• Dimensions: 3.59 inch L x 2.16 inch Center to Top
• Includes: Waste Drain and Drop Ear
• Standards/Approvals: ASTMF-1807, UNS C37700, UNS C46500
