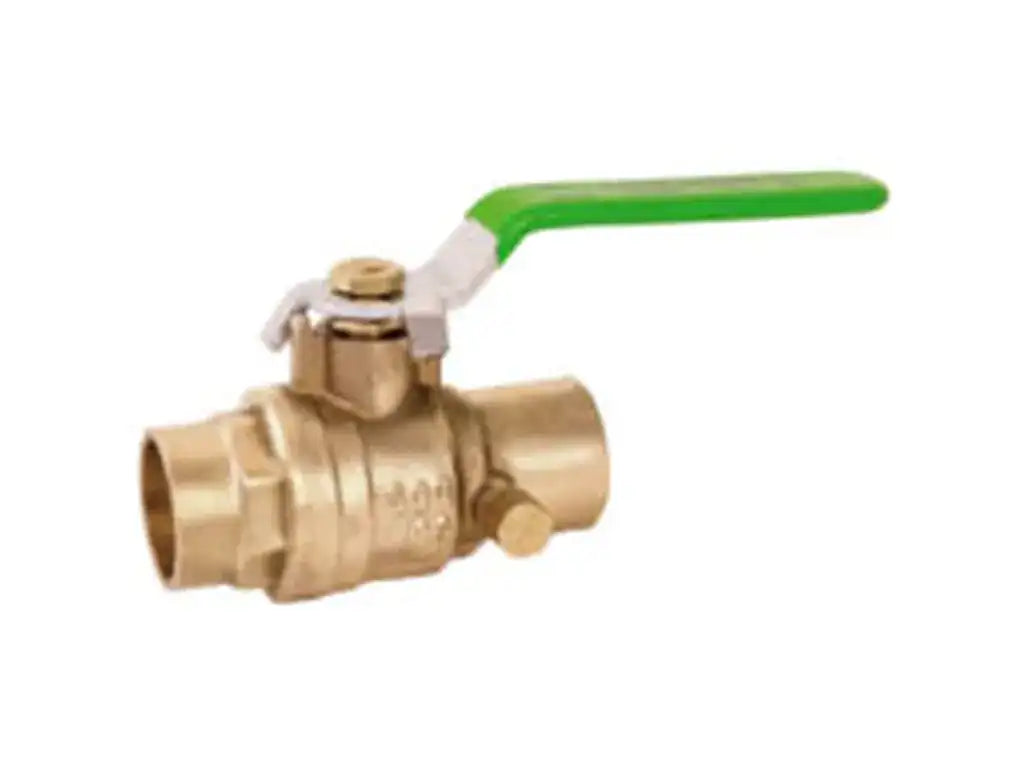

Matco-norca 754dc3lf Brass Ball Valve Full Port Lead-free with Drain 1/2 Inches Copper

Product Description

The Matco-Norca 754DC3LF is a 1/2 inches full port brass ball valve designed for plumbing and mechanical systems where lead-free materials are required. This valve features a copper end style connection, making it a direct fit for copper pipe systems commonly found in residential and commercial water supply lines. It includes a built-in drain port, which allows technicians to bleed pressure or drain a section of pipe without removing the valve from the line. That feature saves time during service calls and system maintenance. The 754DC3LF carries a pressure rating of 400 PSI WOG, meaning it is rated for water, oil, and gas service at that working pressure. This makes the valve suitable for a wide range of trade applications beyond basic water supply, including hydronic heating systems and light gas lines. The full port design ensures minimal flow restriction, maintaining system pressure and flow rates through the valve body. The brass body and brass stem trim provide corrosion resistance and long service life in both hot and cold water systems. Softgoods are made from PTFE and EPDM, two materials well known for chemical resistance and reliable sealing across a broad temperature range. The lead-free construction meets requirements under NSF 61 and applicable plumbing codes for potable water systems. At 0.50 pounds, the valve is compact and easy to handle during installation in tight spaces. The inlet to outlet length measures 2.31 inches, and the overall height is 3 inches, making it a practical choice for standard rough-in and retrofit work. Plumbers, pipefitters, and mechanical contractors will find this valve a reliable component for shutoff and isolation service in copper-piped water systems.

• Lead-free brass construction meets potable water code requirements including NSF 61 standards
• Full port design minimizes pressure drop and maintains high flow rates through the valve
• Built-in drain port allows easy system bleed-down and service without valve removal

Product Highlights

The Matco-Norca 754DC3LF delivers a reliable 400 PSI WOG-rated shutoff solution in a lead-free, full port brass body with copper connections and a convenient built-in drain, making it a practical choice for potable water and light mechanical piping systems.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 754DC3LF

Technical Specifications

• Nominal Size: 1/2 inches
• Port Type: Full Port
• Body Material: Brass
• Ball Material: Brass
• Trim Material: Brass Stem
• Softgoods Material: PTFE/EPDM
• End Style: Copper (C)
• Pressure Rating: 400 PSI WOG
• Inlet to Outlet Length: 2.31 inches
• Height: 3 inches
• Width: 0.5 inches
• Length: 1.15 inches
• Weight: 0.50 pounds
• Item Type: Ball Valve
• Origin: Import
