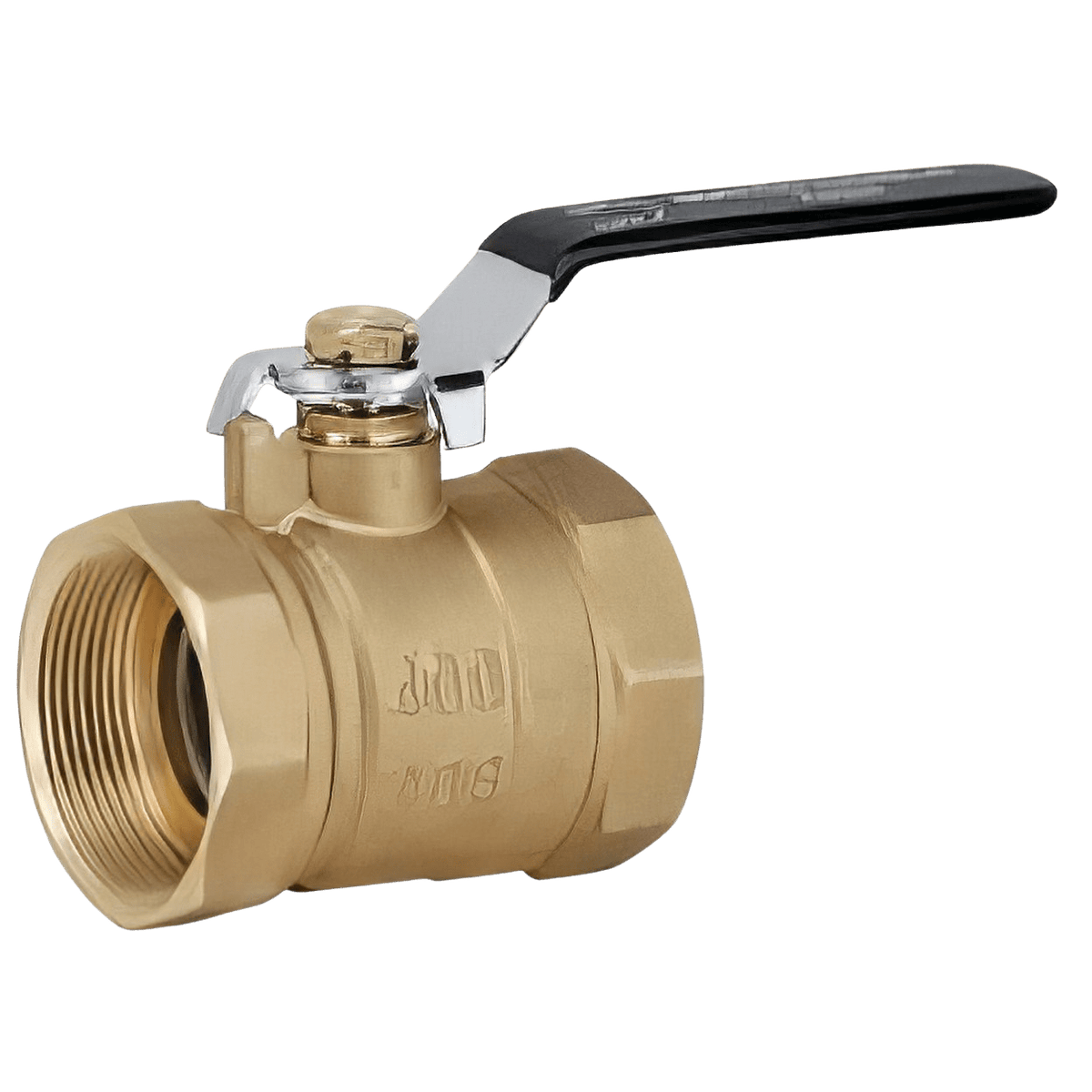

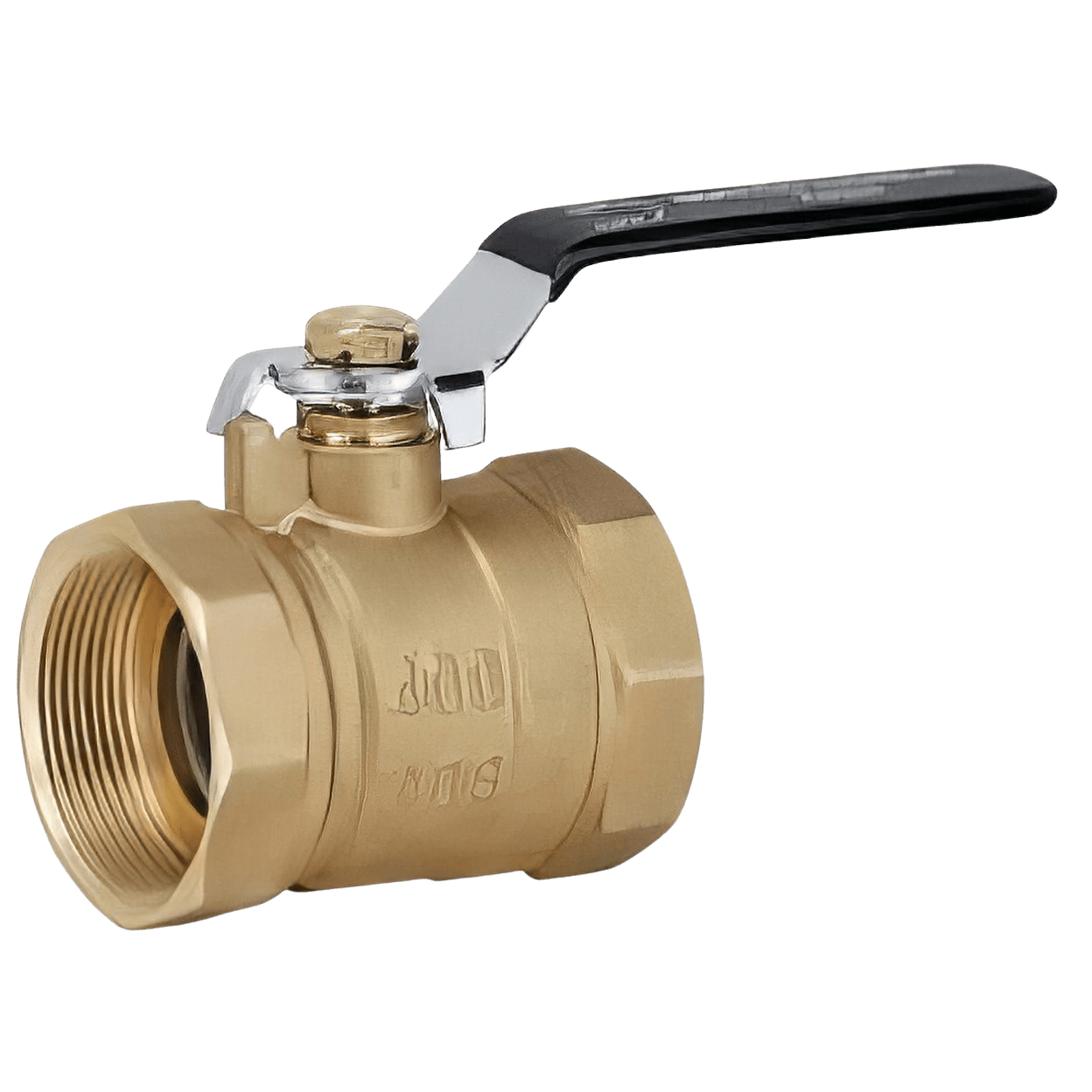

Matco-Norca 752T08 2 Inch Brass Standard Port Ball Valve FIP x FIP

Product Description

The Matco-Norca 752T08 is a 2 inch brass standard port ball valve, designed for reliable performance in plumbing applications. It features a lead-free construction, making it safe for use with water and gas. The valve has a nominal size of two inches with NPT x NPT connections, suitable for various fluids.

• Blowout-proof stem
• Forged brass body and ball
• Meets ANSI B16.18 standards

Product Highlights

This valve is ideal for controlling the flow of water, oil, and gas in a variety of systems.

Product Information

Standard Information

• Brand: Matco-Norca
• MPN: 752T08

Technical Specifications

• Nominal Size: 2 inch
• Connection Type: NPT x NPT
• Media: Water, oil, and gas
• Opening Size: 1.5 inch
• Max. Pressure: 400 psi
• Max. Steam Pressure: 150 psi SWP
• Body Material: Forged brass
• Ball Material: Brass
• Seat: PTFE
• Stem: Brass
• Packing: PTFE
• Bonnet: Brass
• Actuation/Operator: Lever handle
• Dimensions: D: 5.42 inch; E: 0.75 inch; H: 2.88 inch; L: 3.82 inch
