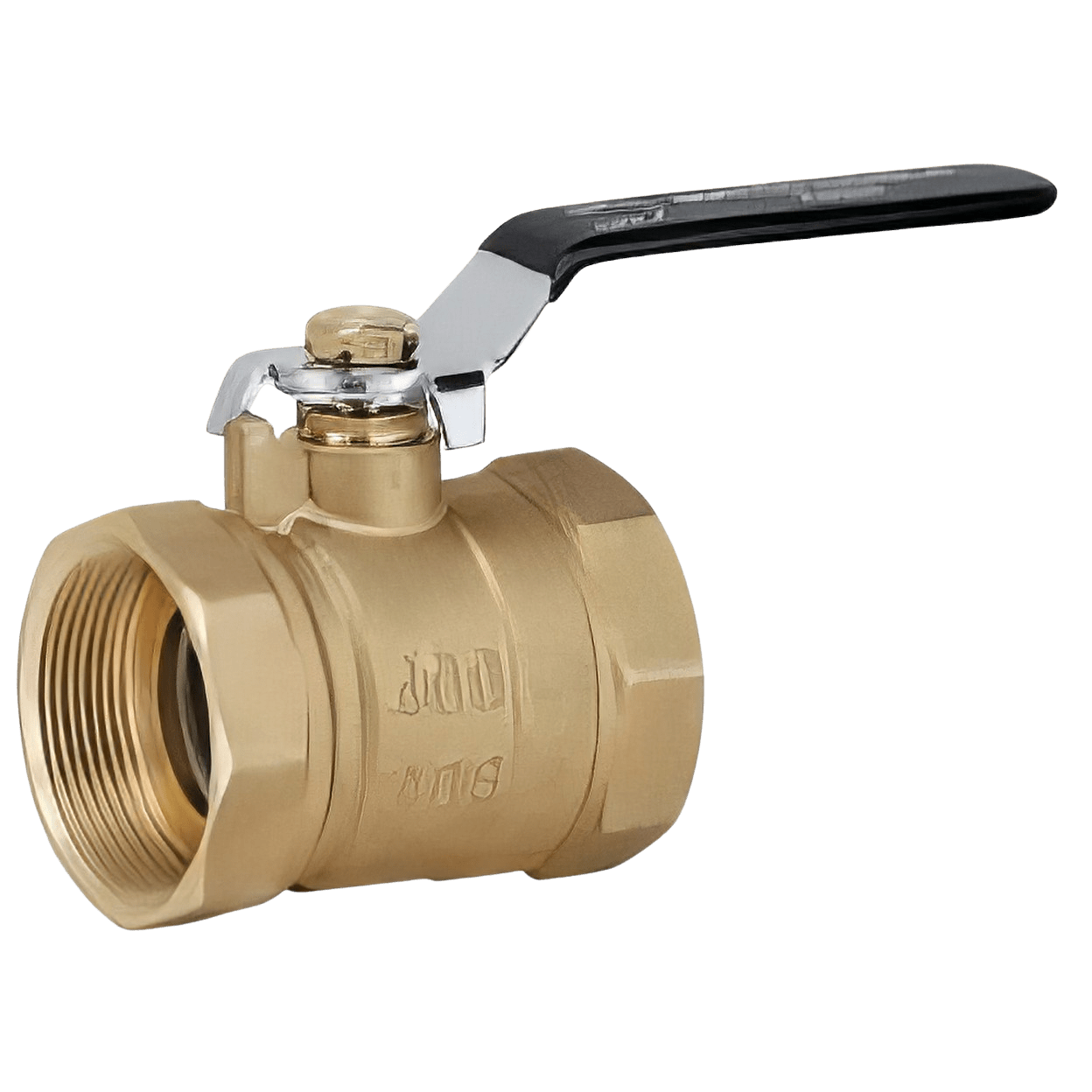

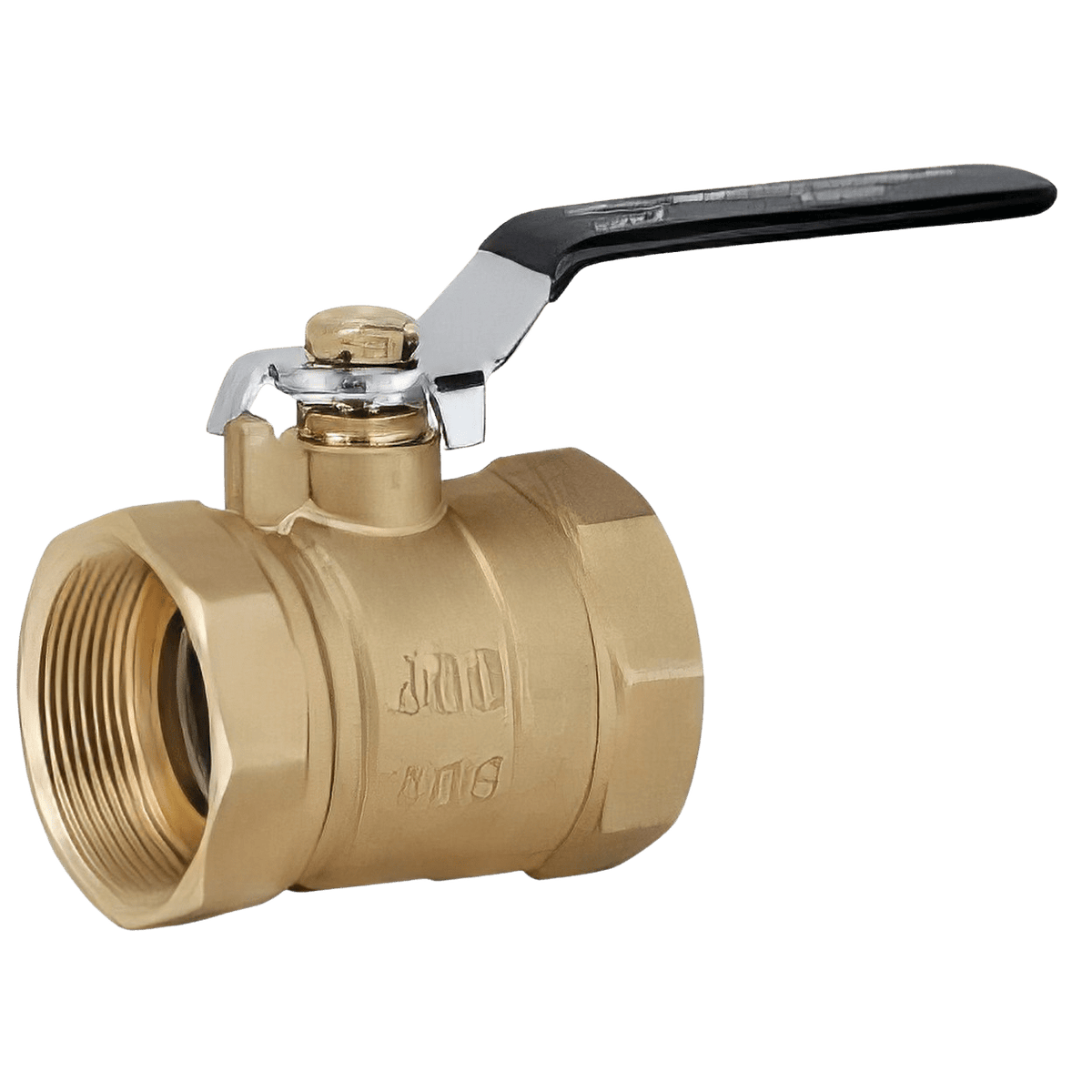

Matco-Norca 752T07 1-1/2 Inch Brass Standard Port Ball Valve FIP x FIP

Product Description

The Matco-Norca 752T07 is a ball valve designed for plumbing applications. It features a standard port and is lead-free, making it safe for potable water use. With a nominal size of one and a half inches, it has NPT x NPT connections and operates at a maximum pressure of four hundred psi. This valve is suitable for water, oil, and gas media, and is constructed with a forged brass body ensuring durability and reliability.

• Lead-free construction
• Forged brass body
• PTFE seat for improved sealing

Product Highlights

This ball valve is ideal for various applications requiring a reliable shut-off. Its robust design and high-pressure rating make it suitable for industrial and residential uses.

Product Information

Standard Information

• Brand: Matco-Norca
• MPN: 752T07

Technical Specifications

• Series: 752N
• Type: Standard Port, Lead Free
• Nominal Size: 1-1/2 inch
• Connection Type: NPT x NPT
• Media: Water, Oil, and Gas
• Opening Size: 1.26 inch
• Body Material: Forged Brass
• Seat: PTFE
• Ball Material: Brass
• Stem: Brass
• Packing: PTFE
• Bonnet: Brass
• Actuation/Operator: Lever Handle
• Max. Pressure: 400 psi
• Max. Steam Pressure: 150 psi SWP
• Dimensions: Dimension D: 5.42 inch; Dimension E: 0.71 inch; Dimension H: 2.72 inch; Dimension L: 3.43 inch
