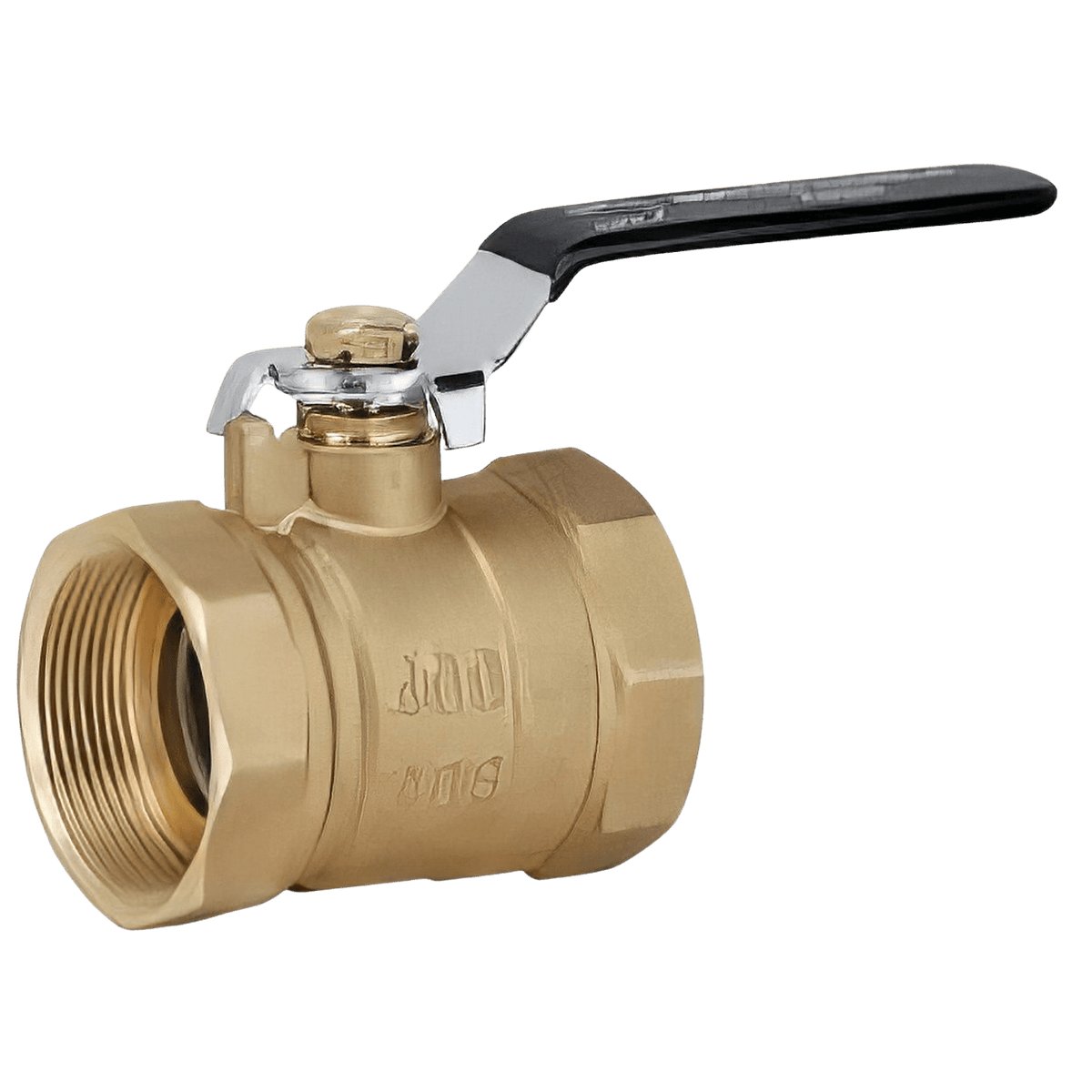

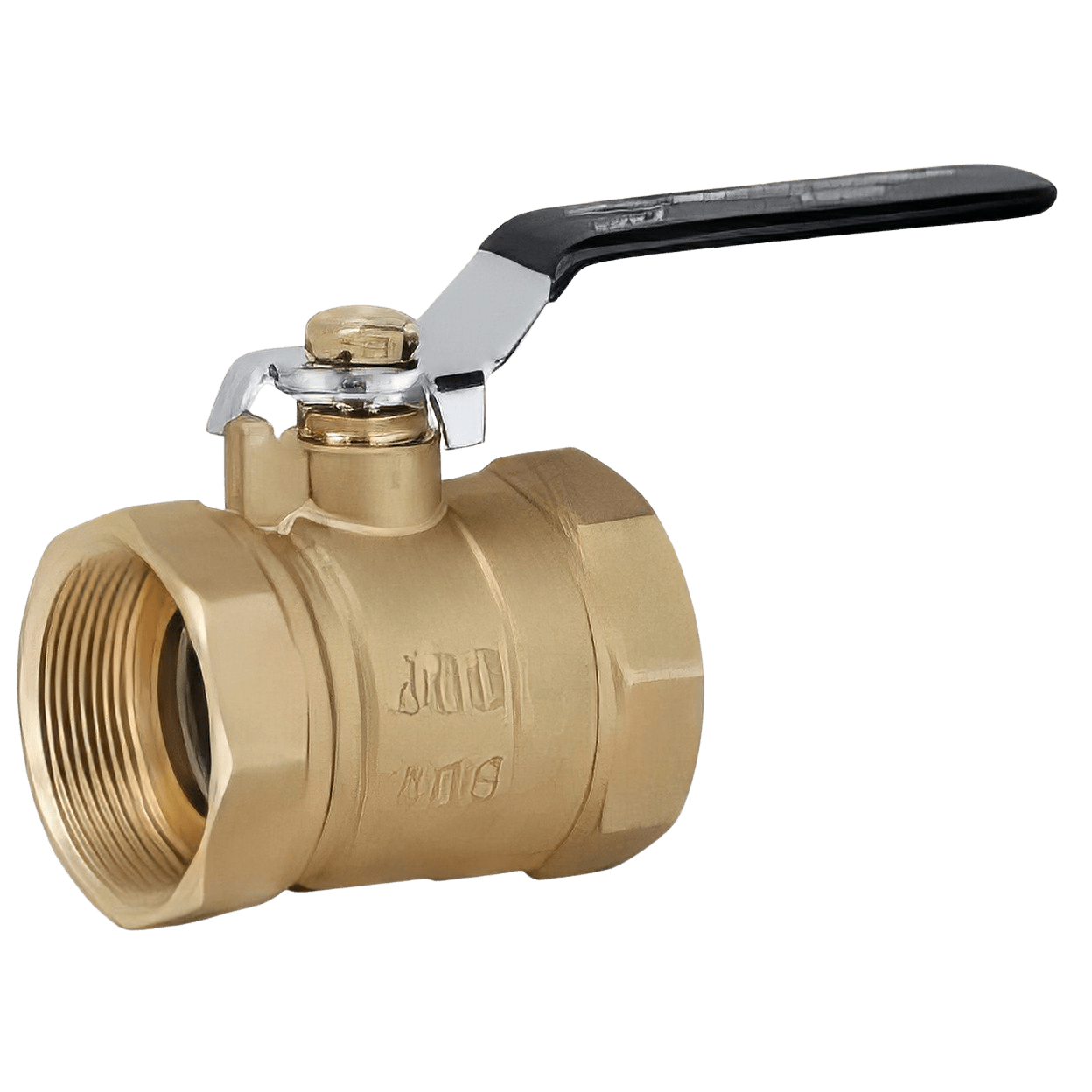

Matco-Norca 752T03N 1/2 Inch Brass Standard Port Ball Valve FIP x FIP

Product Description

The Matco-Norca 752T03N is a 1/2 inch brass standard port ball valve. It features a lead-free design and connections of female iron pipe (FIP) by female iron pipe (FIP). This valve is suitable for various media including water, oil, and gas. It is rated for a maximum pressure of four hundred psi and a maximum steam pressure of one hundred fifty psi. The valve allows flow through two ports with an opening size of 0.39 inches.

• Lead-free construction ensures safety and compliance
• Forged brass body for durability
• Lever handle for easy operation

Product Highlights

This ball valve is ideal for plumbing shut-off applications, offering reliable performance in both residential and commercial settings.

Product Information

Standard Information

• Brand: Matco-Norca
• MPN: 752T03N

Technical Specifications

• Series: 752N
• Type: Standard Port, Lead Free
• Nominal Size: 1/2 inch
• Connection Type: NPT x NPT
• Media: Water, Oil, and Gas
• Opening Size: 0.39 inch
• Body Material: Forged Brass
• Ball Material: Brass
• Seat: PTFE
• Stem: Brass
• Packing: PTFE
• Bonnet: Brass
• Actuation/Operator: Lever Handle
• Max. Pressure: 400 psi
• Max. Steam Pressure: 150 psi SWP
• Dimensions: D: 3.31 inch; E: 0.49 inch; H: 1.54 inch; L: 1.93 inch
