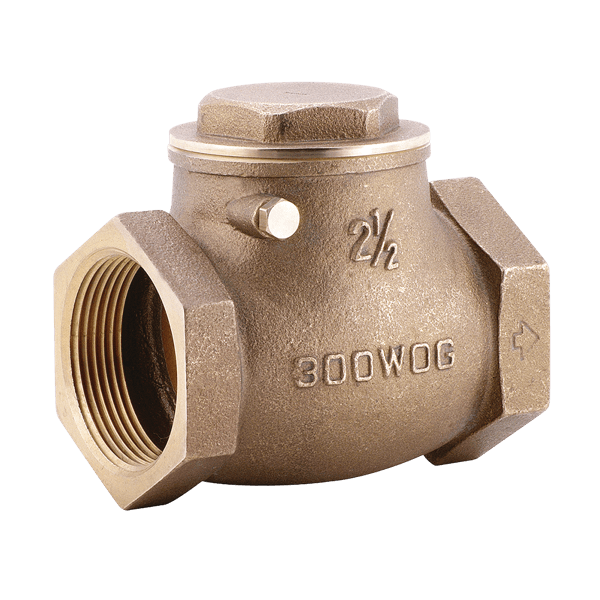

Matco-Norca 530T03LF Lead Free Bronze Swing Check Valve

Product Description

The Matco-Norca 530T03LF is a lead-free bronze swing check valve that controls fluid flow in a horizontal pattern. This valve has a strong bronze body with a threaded cap and bronze disc. It is effective for use with water, oil, and gas. Rated for a maximum pressure of three hundred psi for non-shock applications and one hundred fifty psi for steam service, this valve meets industry standards.

• Lead-free bronze material
• Threaded ends comply with ASME B1.20.1
• Meets MSS SP-80 standards

Product Highlights

The valve is suitable for non-potable water applications and is installed in a horizontal position. It complies with NSF/ANSI 61 IAPMO standards, ensuring safety for various fluid types.

Product Information

Standard Information

• Manufacturer: Matco Norca
• Material: Bronze

Technical Specifications

• Valve Body Material: Bronze
• Valve Seat Material: Bronze
• End Connection Type: FPT
• Valve Size: 1/2 inches
• Maximum Pressure: 300 psi
• WSP: 150 psi
• Application: Water, Oil, and Gas
• Installation Type: Horizontal Mount
• Lead Law Compliance Level: Lead Free Not Certified, Approved for Non-Potable Water Applications
• Standards: NSF 61
• Certifications: NSF/ANSI 61 IAPMO Approved
• ANSI Compliance: ANSI 61
• ASME Compliance: ASME B1.20.1
• MSS Compliance: MSS SP-80
• Length: 1-13/50 inches
• Weight: 0.45 lb
