Matco-Norca 525T04LF 525TLF 3/4 Inch Cast Brass Threaded Check Valve

Product Description

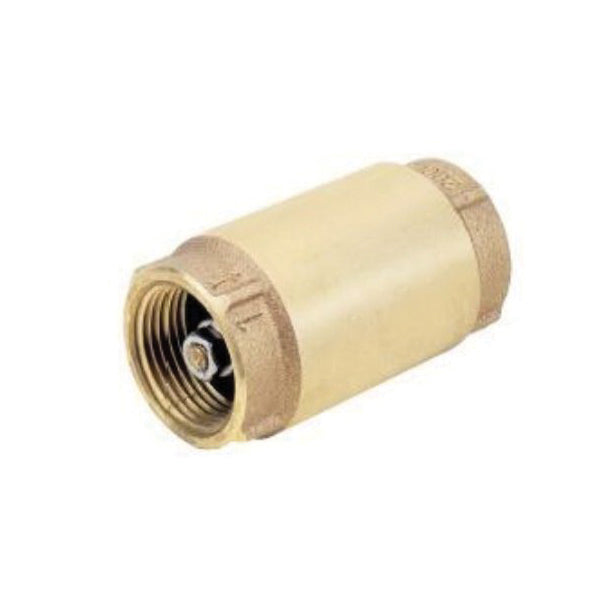

The Matco-Norca 525T04LF is a three-quarter inch cast brass threaded check valve suitable for various plumbing applications. This in-line check valve features spring loading and is designed to prevent backflow, ensuring a smooth operation in plumbing systems.

• Lead-free brass construction
• Pressure rating of two hundred PSI
• Temperature rating up to one hundred eighty degrees Fahrenheit

Product Highlights

This check valve complies with ANSI, NSF 61, and other relevant standards, making it a reliable choice for professional plumbers.

Product Information

Standard Information

• Manufacturer: Matco-Norca
• MPN: 525T04LF

Technical Specifications

• Type: In-Line, Spring Loaded
• Nominal Size: Three-Quarter Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: Two point seventy-four inches
• Body Material: C89844 Bronze
• Spring Material: 304 Stainless Steel
• Seat Material: BUNA-N
• Seal Material: BUNA SN 919F O-Ring
• Temperature Rating: One hundred eighty degrees Fahrenheit
• Pressure Rating: Two hundred PSI CWP
• Applicable Standards: ANSI B2.1, NSF 61, ISO 9002
• Lead-Free: Yes
