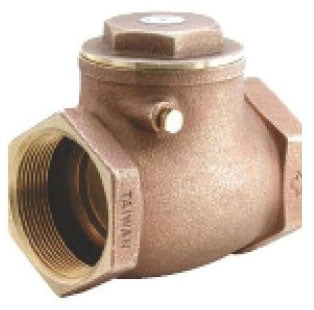

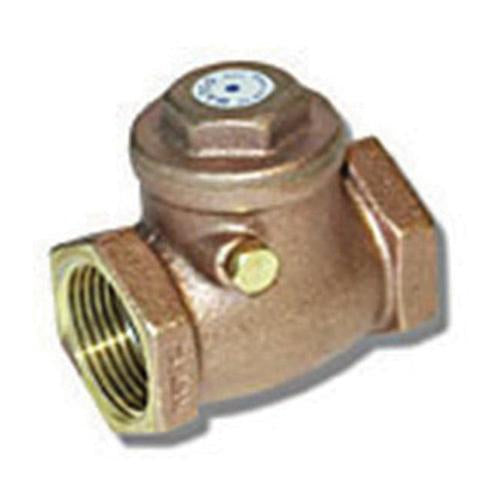

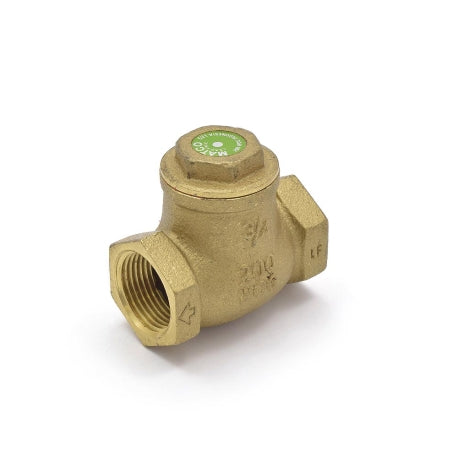

Matco-Norca 521T04LF LF swing check valve tee pattern 3/4 IPT

Product Description

Matco-Norca 521T04LF is a lead-free swing check valve in a tee pattern with 3/4 IPT connections. The valve features a cast brass body, brass disc trim, Fiber-H packing and an integral seat, with compact dimensions (2.36 in inlet-to-outlet; 1.56 in top-to-inlet center). It is rated to 200 lb WOG and 125 SWP and is suitable for water, oil, gas and steam service with low-lead compliance and NSF/ANSI 61.

• Lead-free swing check valve, tee pattern, 3/4 IPT connections
• Cast brass body with brass disc trim, Fiber-H packing and integral seat
• Pressure rating 200 lb WOG; 125 SWP — inlet-to-outlet 2.36 in, top-to-inlet center 1.56 in

Product Highlights

Lead-free 3/4 IPT swing check; cast brass body; 200 lb WOG / 125 SWP; integral seat; NSF/ANSI 61 compliance

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 521T04LF

Technical Specifications

• Brand: Matco-Norca
• MPN: 521T04LF
• Series: 521LF
• Inventory SKU: LFSCV3/4
• Reference ID: MATCONORCA521T04LF
• UPC: 08264710487
• Weight: 0.54 pound
• Nominal Size: 3/4 in
• Connection Type: IPT (3/4)
• Body Material: Cast brass
• Trim Material: Brass disc
• Packing Material: Fiber-H
• Seat: Integral seat
• Pressure Rating: 200 lb WOG; 125 SWP
• Temperature Rating: 210 deg F
• Inlet to Outlet Length: 2.36 in
• Top to Inlet Center: 1.56 in
• Applications: Water, Oil, Gas, Steam
• Compliance: Low lead compliant (meets 0.25% weighted average lead content on wetted surfaces - SDWA); NSF/ANSI 61
• Thread Standard: ANSI B2.1
