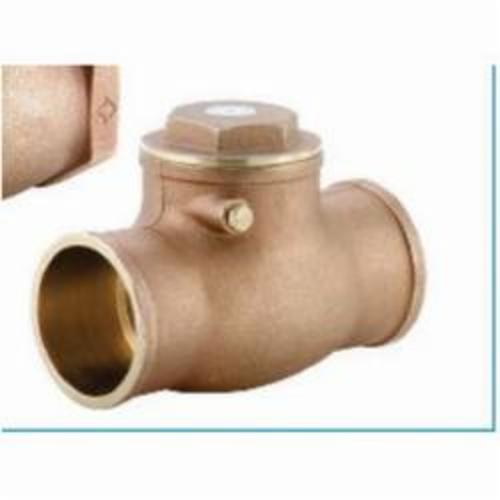

Matco-Norca 521C08LF Lead-Free Swing Check Valve (2 In C x C)

Product Description

The Matco-Norca 521C08LF is a lead-free 2 in C x C swing check valve constructed with C89550 brass body, disc, and cap to prevent backflow in piping systems. It features a bolted cap, H-fiber seal, and female soldered x female soldered end connections with a 4.22 in end-to-end distance. The valve is rated 200 PSI WOG and 125 PSI SWP with a 180°F temperature limit and conforms to ANSI B16.18 and MSS-SP-80/82.

• Lead-free C89550 brass body, disc, and cap; bolted cap style with H-fiber seal
• Female soldered x female soldered (C x C) connections; nominal size 2 in; 4.22 in end-to-end distance
• Pressure rating 200 PSI WOG and 125 PSI SWP; temperature rating 180°F; meets ANSI B16.18 and MSS-SP-80/82

Product Highlights

Lead-free 2 in C x C swing check valve, C89550 brass construction, 200 PSI WOG, 180°F, bolted cap with H-fiber seal

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 521C08LF

Technical Specifications

• Brand: Matco-Norca
• Manufacturer Part Number: 521C08LF
• Series/Model: 521LF
• Valve Type: Swing check valve
• Nominal Size: 2 in
• End Connection: Female soldered x female soldered (C x C)
• Cap Style: Bolted cap
• End-to-End Distance: 4.22 in
• Body Material: C89550 brass
• Disc Material: C89550 brass
• Cap Material: C89550 brass
• Seal Material: H fiber
• Temperature Rating: 180 °F
• Pressure Rating: 200 PSI WOG; 125 PSI SWP
• Standards/Approvals: ANSI B16.18; MSS-SP-80/82; ISO 9002
• Inclusions: Aluminum name plate; C36000 brass bolt; C37700 brass pin
• Lead-Free: Yes
• Flow Rate: 100 gpm
• Packing Material: Fiber-H
• Integral Seat: Yes
• Suitable Media: Oil, Gas, Steam, Water
• Weight: 2.64 lb
• UPC: 8264710227
• UNSPSC Code: 40141634
