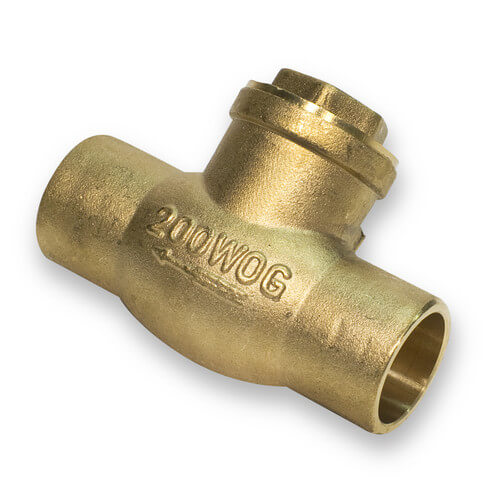

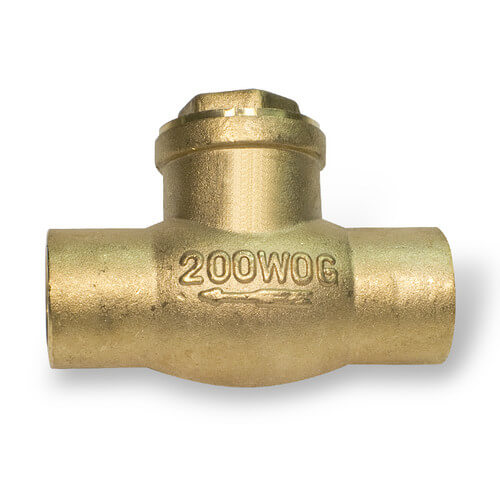

Matco-Norca 521C03LF Swing Check Valve 1/2 CxC (1/2 in)

Product Description

Matco-Norca 521C03LF is a lead-free swing check valve with a 1/2 inch nominal size and CxC (female soldered x female soldered) connections. The valve features a cast C89550 brass body, disc and cap, a brass seat with H-Fiber seal, an integral seat and a 2.4 inch end-to-end length. It is rated 200 PSI WOG and 125 PSI SWP with a maximum working temperature of 180°F for water, oil, gas and steam applications.

• Cast C89550 brass body, disc and cap; brass seat; H-Fiber/Fiber-H packing
• Pressure rating 200 PSI WOG and 125 PSI SWP; temperature rating 180°F; integral seat
• CxC (female soldered x female soldered) connections; end-to-end length 2.4 in; inlet-to-outlet length 2.4 in

Product Highlights

Lead-free cast brass 1/2 in swing check valve, CxC solder ends, 200 PSI WOG / 125 PSI SWP, 180°F, integral seat

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 521C03LF
• Country of Origin: Import

Technical Specifications

• Brand: Matco-Norca
• Manufacturer Part Number: 521C03LF
• Model/Series: 521LF
• Type: Swing check valve
• Nominal Size: 1/2 in
• Connection Type: CxC (female soldered x female soldered)

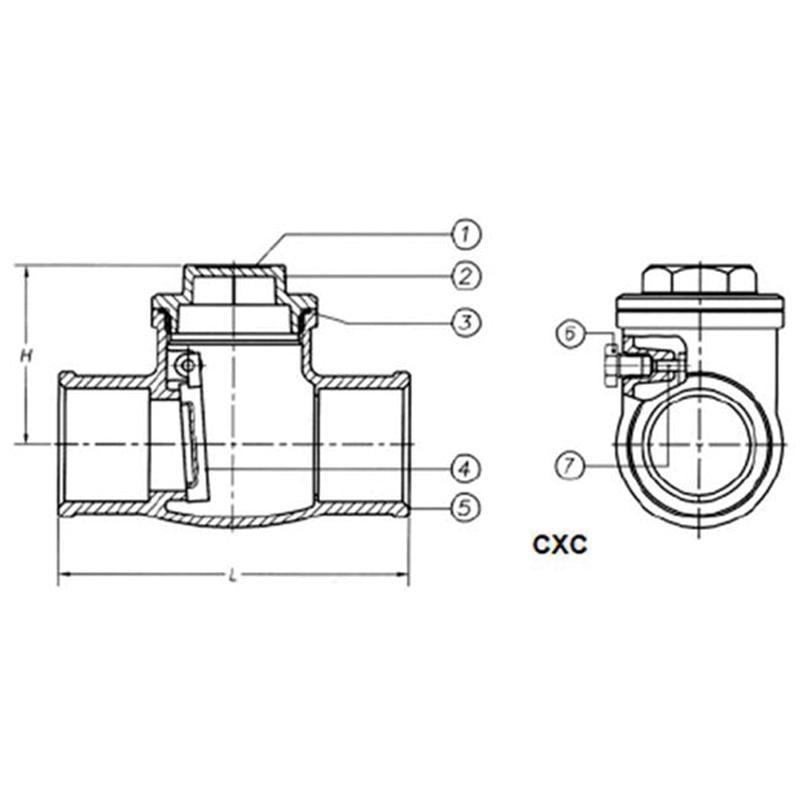

• End to End Distance: 2.4 in
• Inlet to Outlet Length: 2.4 in
• Top to Inlet Center: 1.4 in
• Body Material: Cast C89550 brass
• Disc Material: C89550 brass
• Cap Material: C89550 brass
• Seat Material: Brass
• Seal/Packing Material: H-Fiber / Fiber-H
• Integral Seat: Yes
• Pressure Rating: 200 PSI WOG; 125 PSI SWP
• Pressure Rating WOG: 200 PSI
• Pressure Rating SWP: 125 PSI
• Temperature Rating: 180 deg F
• Flow Rate: 10 gpm
• Applications: Water, oil, gas, steam; commercial and light industrial
• Standards/Testing: ANSI B16.18, MSS SP-82, MSS SP-80, ANSI B2.1, ASME B1.20.1, ISO 9002, NSF 61/372, UPC
• Lead-Free Compliance: Yes (Low lead compliant)
• UPC: 082647100626
• Country of Origin: Imported
