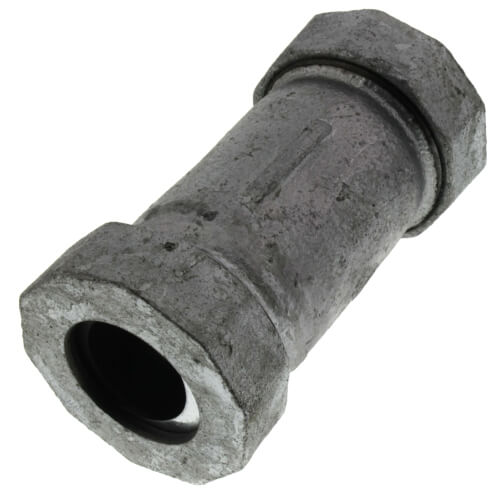

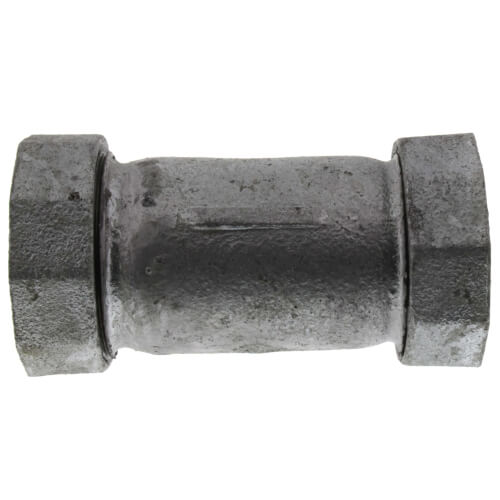

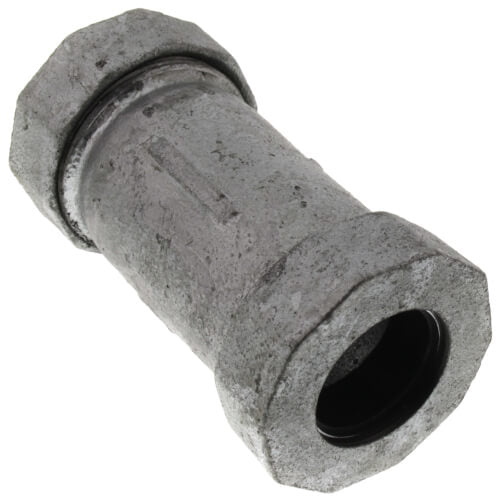

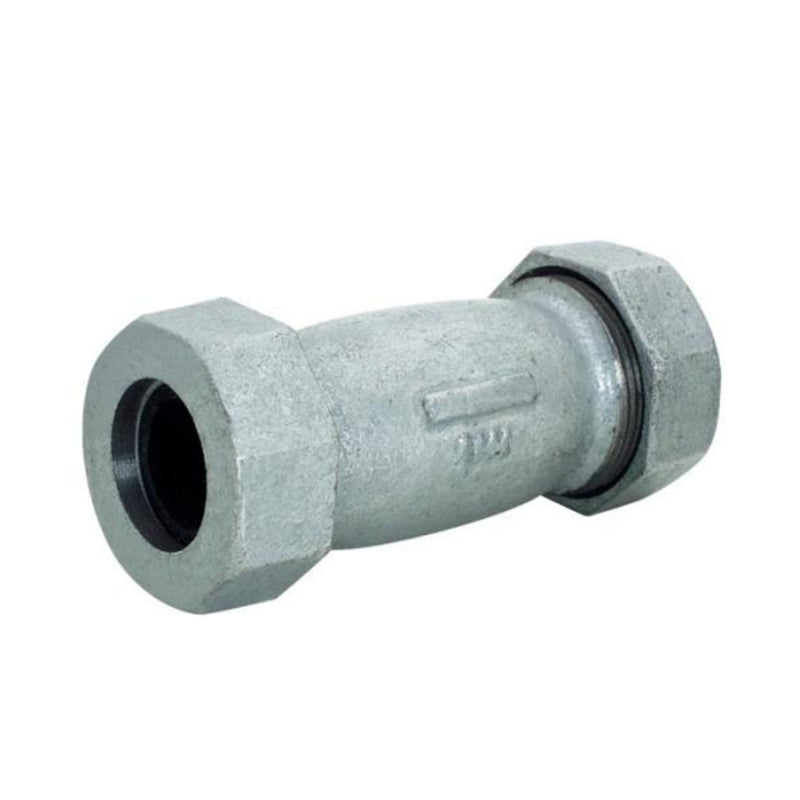

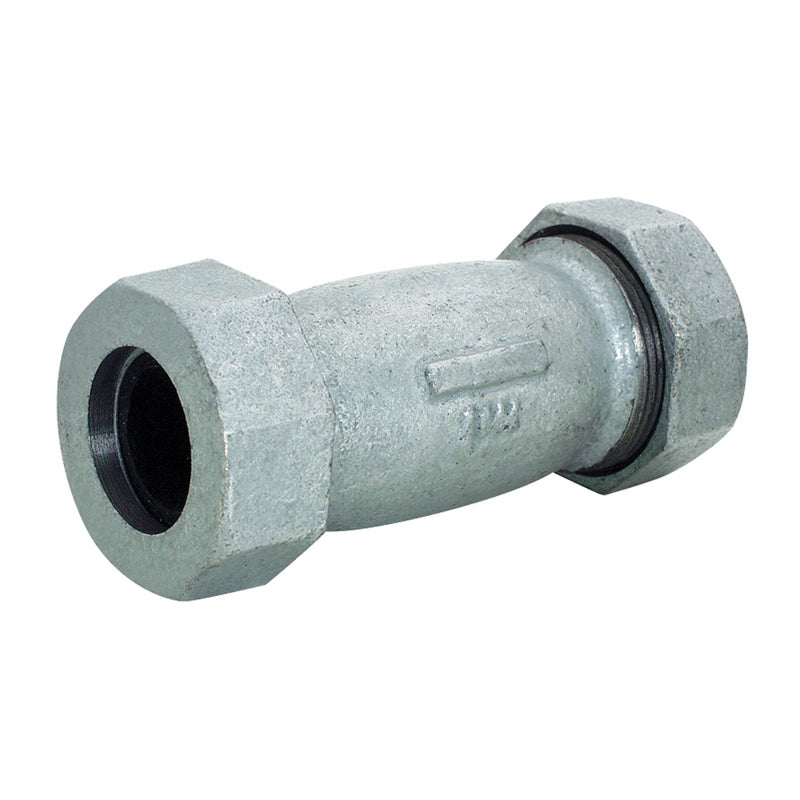

Matco-Norca 440L05C 1 inches Galvanized Long Compression Coupling

Product Description

The MATCO-NORCA 440L05C is a 1" galvanized long compression coupling. This coupling fitting is constructed from iron with a hot-dipped galvanized finish. It is suitable for use in applications with a pressure rating of 125 psi and a maximum temperature of 180 deg F.

• 1" Compression Connection
• Zinc-plated friction washer
• Buna-N Gaskets

Product Highlights

The MATCO-NORCA 440L05C coupling provides a reliable compression connection for various piping applications.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 440L05C
• Country of Origin: Import

Technical Specifications

• Size: 1"
• Connection Type: Compression
• Connection Size: 1 in
• Connection Type 1: Compression
• Connection Type 2: Compression
• Finish: Galvanized
• Fitting Type: Coupling
• Material Construction: Iron
• Material: Galvanized Steel
• Pressure Rating: 125 psi
• Temperature Rating: 180 deg F
• Type: Long
• Series: 440
• Nominal Size: 1 in
• Length: 4.61 in
• Pressure Rating WOG: 125 psi WOG
• Domestic/Import: Import
