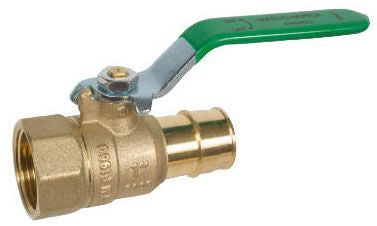

Matco-norca 39162 Lead Free Full Port Ball Valve 1/2 in

Product Description

The MATCO-NORCA 39162 is a lead-free, full-port ball valve designed for 1/2-inch cold expansion PEX connections conforming to the F1960 standard. Full-port design means the valve bore matches the pipe inside diameter, delivering unrestricted flow and minimal pressure drop across the valve. The lead-free construction meets NSF and Safe Drinking Water Act requirements, making it appropriate for potable water systems. Plumbers and pipefitters install this valve to provide reliable shutoff service in residential and light commercial plumbing applications where PEX piping is used.

This valve is intended for cold expansion F1960 PEX systems, where the pipe end is expanded to accept a fitting ring before connection. The 1/2-inch by 1/2-inch female expansion configuration integrates directly into PEX supply lines without the need for adapters or transition fittings at this connection point. Typical installations include domestic water distribution, radiant heating supply and return lines, and fixture branch shutoffs in new construction or remodel work where PEX is the primary pipe material.

Key Features

• Lead-free construction meets Safe Drinking Water Act requirements for potable water service
• Full-port bore delivers unrestricted flow with minimal pressure drop
• Cold expansion F1960 connection type eliminates the need for crimping tools at this fitting
• 1/2-inch by 1/2-inch sizing fits standard half-inch PEX supply lines
• Ball valve design provides positive, quarter-turn shutoff action

Compatibility

Designed for use with cold expansion F1960 PEX piping systems in 1/2-inch nominal size. Reference model 754PXCEF03LF applies to this valve configuration.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and ASTM F1960 standard procedures for cold expansion PEX fittings. Shut off the main water supply and relieve system pressure before beginning work. Use an appropriate F1960 expansion tool sized for 1/2-inch PEX to expand the pipe end before seating the fitting ring and inserting the valve. Verify all connections for leaks after restoring system pressure.

Technical Specifications

• Size: 1/2 inch x 1/2 inch
• Port Type: Full Port
• Connection Type: Cold Expansion F1960 PEX
• Lead Free: Yes

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 39162
