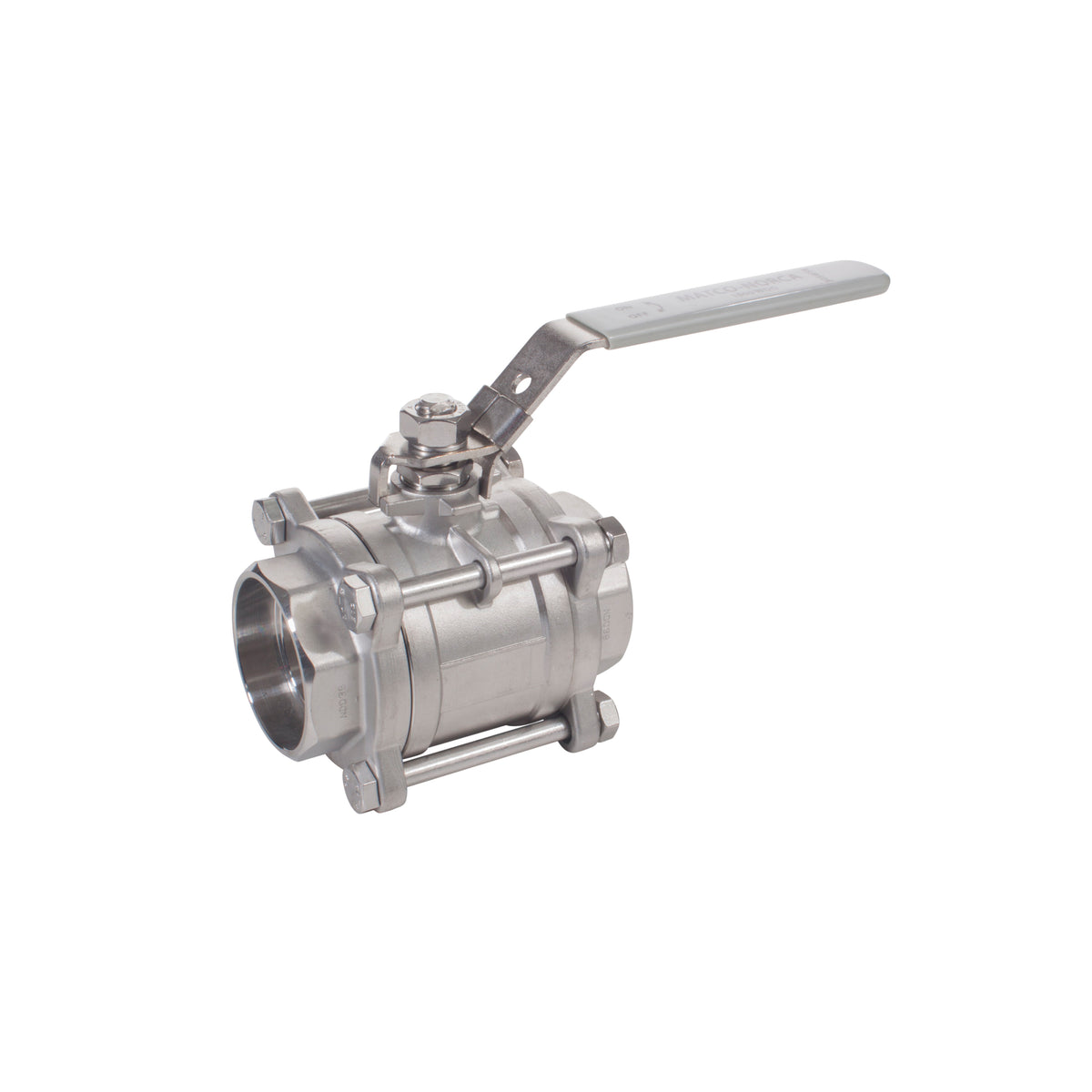

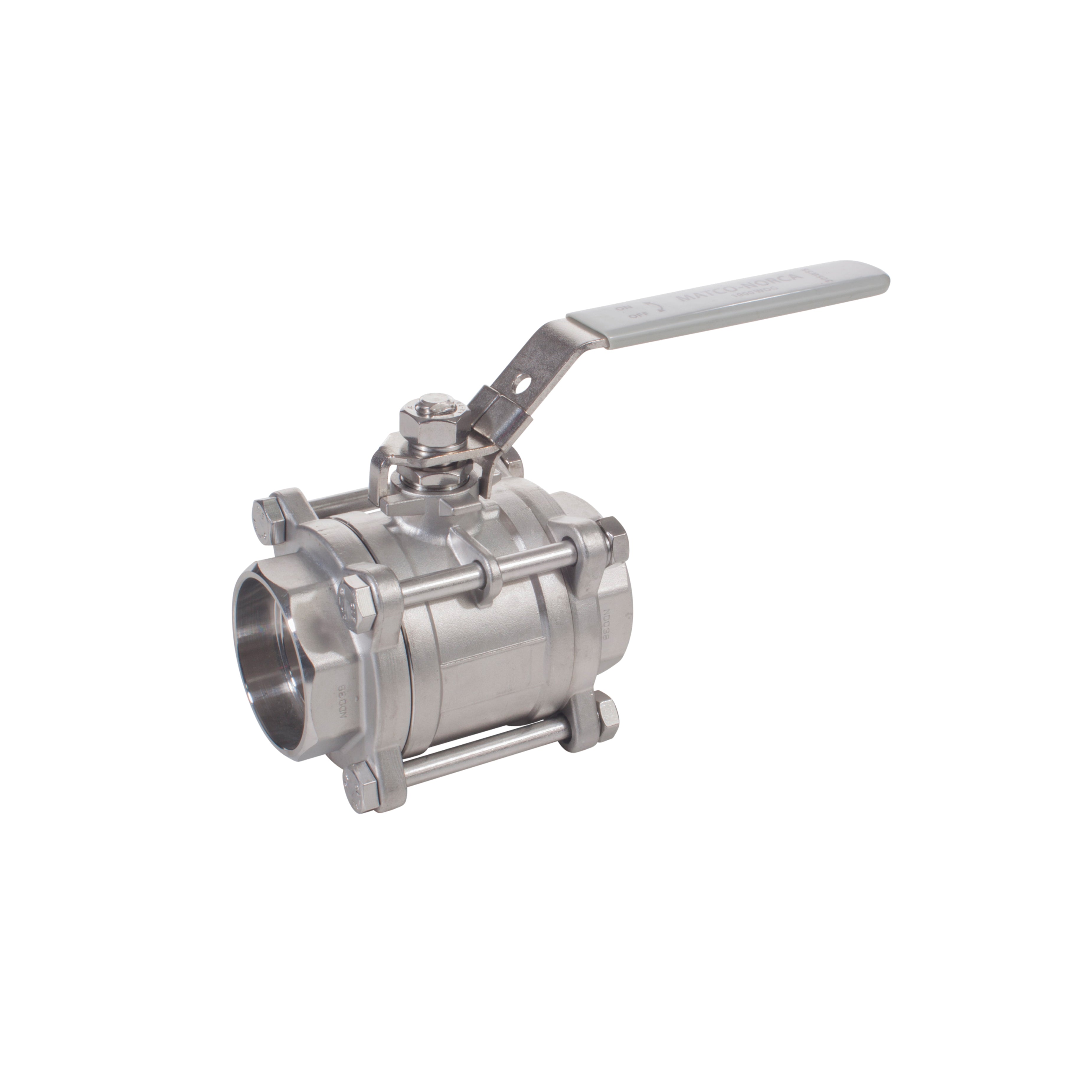

Matco-Norca 30SSSW07 3-Piece Ball Valve With Lock Handle, 1-1/2 in

Product Description

Matco-Norca™ Ball Valve is a three-piece valve designed for industrial applications. The MPN is 30SSSW07. It features a socket welded end style and a full port for maximum flow. This valve operates with a pressure rating of 1000 psi WOG and can handle temperatures ranging from -4 to 392 degrees Fahrenheit.

• 3-piece design for easier assembly and maintenance.
• Full port for unrestricted fluid flow.
• Constructed with durable materials including 316 stainless steel.

Product Highlights

This ball valve is ideal for applications requiring reliable shut-off control in piping systems.

Product Information

Standard Information

• Manufacturer: Matco-Norca
• Part Number: 377491

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: 316 Stainless Steel
• Domestic/Import: Import
• End Style: Socket Welded
• Inlet to Outlet Length: 4.41 inches
• Nominal Size: 1-1/2 inches
• Port Type: Full
• Pressure Rating: 1000 psi WOG
• Series: 30SSSW
• Softgoods Material: PTFE
• Temperature Rating: -4 to 392 degrees Fahrenheit
• Top to Inlet Center: 3.94 inches
• Trim Material: 316 Stainless Steel Stem
• Type: 3-Piece
