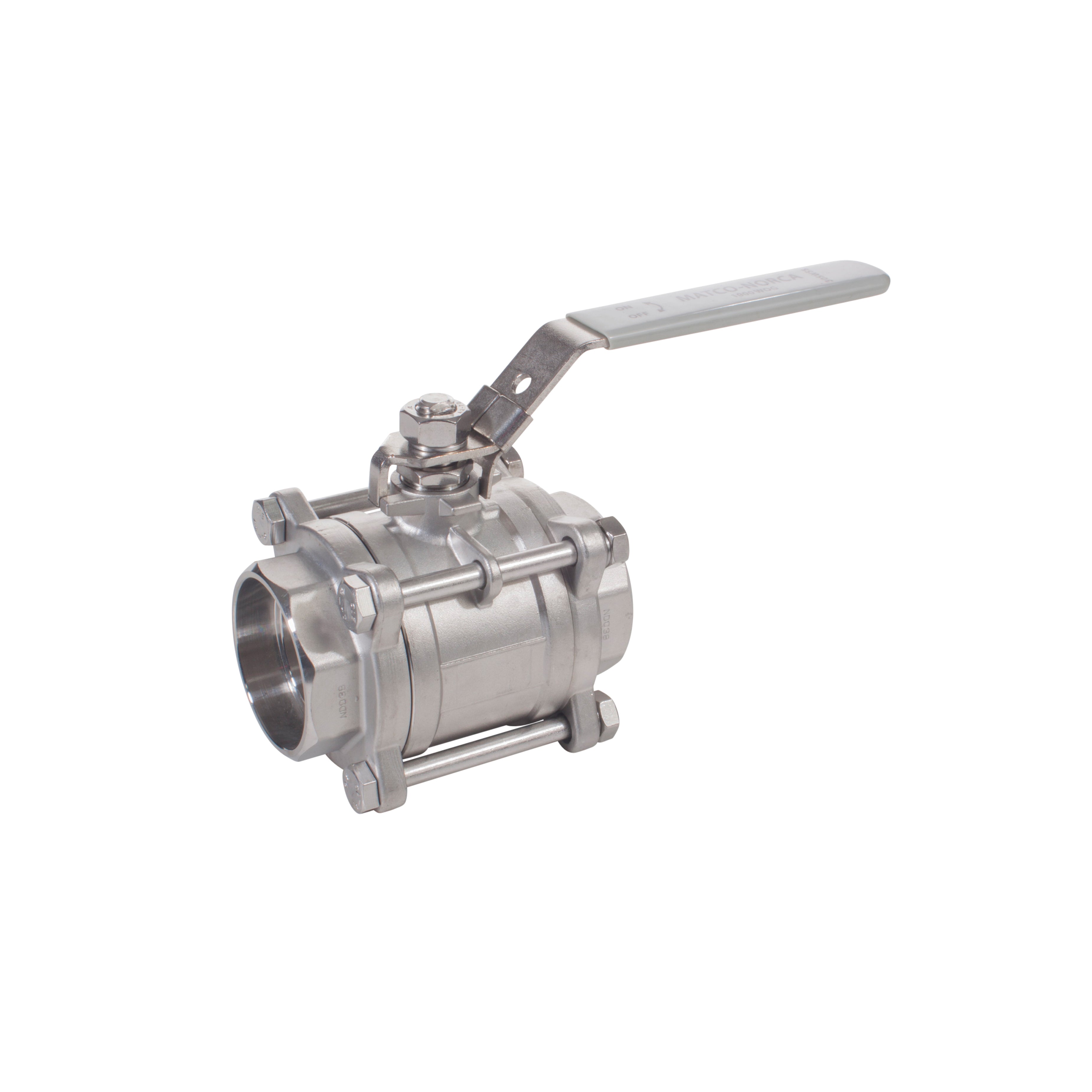

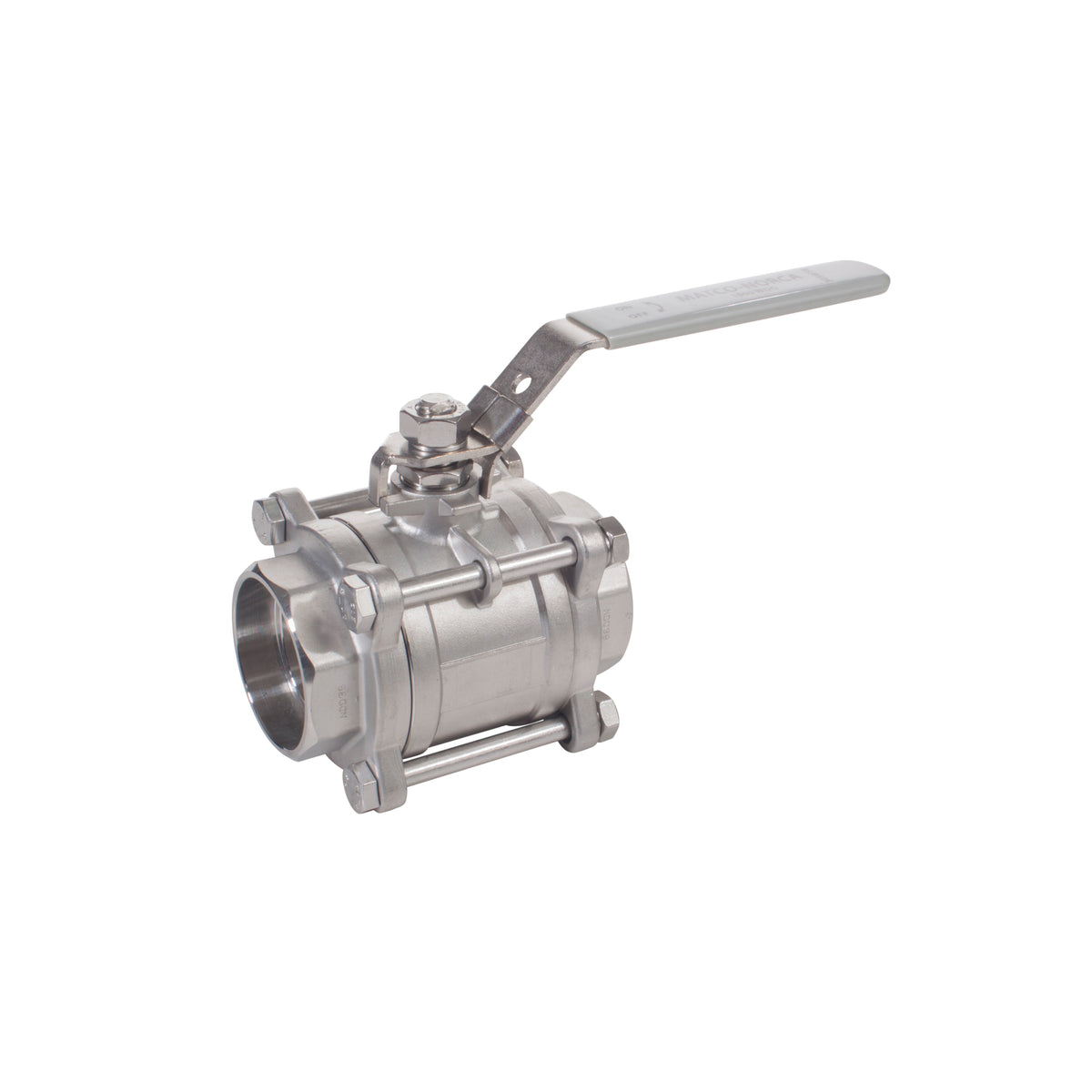

Matco-Norca 30SSSW05 3-Piece Ball Valve With Lock Handle, 1 in

Product Description

Matco-Norca 3-Piece Ball Valve, MPN 30SSSW05 features a durable stainless steel construction with a socket welded end style. This valve is rated for 1000 psi WOG and operates within a temperature range of negative four to three hundred ninety-two degrees Fahrenheit. It is designed for full port flow, making it suitable for various applications where reliability is crucial.

• Socket welded end style for secure connections
• Suitable for a wide temperature range
• Made with 316 stainless steel for corrosion resistance

Product Highlights

The Matco-Norca 30SSSW05 is constructed with a stainless steel ball and PTFE softgoods, ensuring long-term durability and performance. It offers a blow-out proof stem for added safety during operation.

Product Information

Standard Information

• Manufacturer: Matco-Norca
• Brand: Matco-Norca

Technical Specifications

• Ball Material: Stainless Steel
• Body Material: 316 Stainless Steel
• End Style: Socket Welded
• Inlet to Outlet Length: 3.35 in
• Nominal Size: 1 in
• Port Type: Full
• Pressure Rating: 1000 psi WOG
• Series: 30SSSW
• Softgoods Material: PTFE
• Temperature Rating: -4 to 392 deg F
• Top to Inlet Center: 3.03 in
• Trim Material: 316 Stainless Steel Stem
• Type: 3-Piece
