Matco-Norca 26-1019LF 5/8 inches OD Comp x 3/8 inches OD Comp 1/4 inches Turn Angle Oval Handle Supply Stop

Product Description

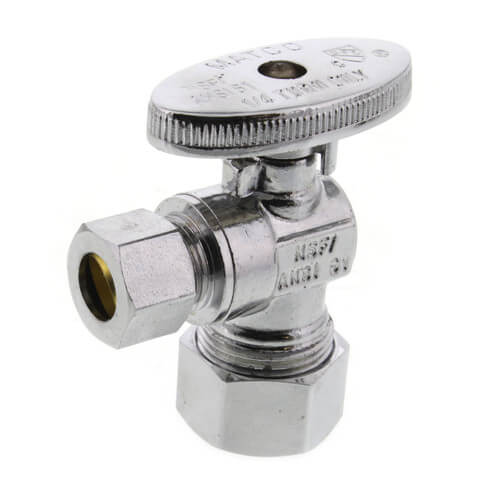

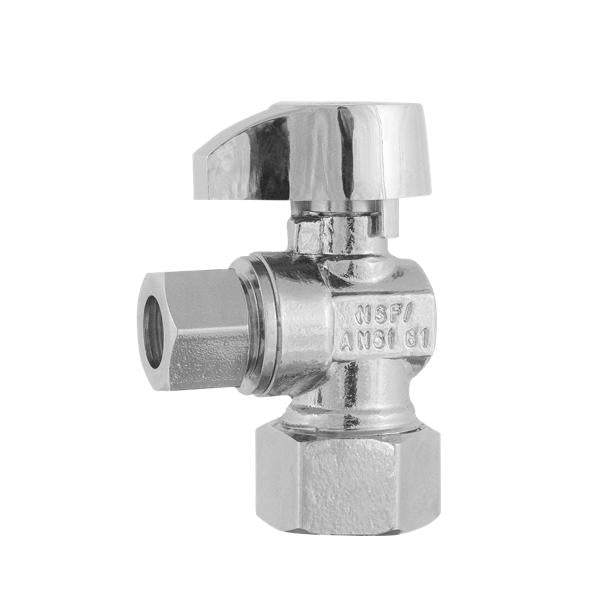

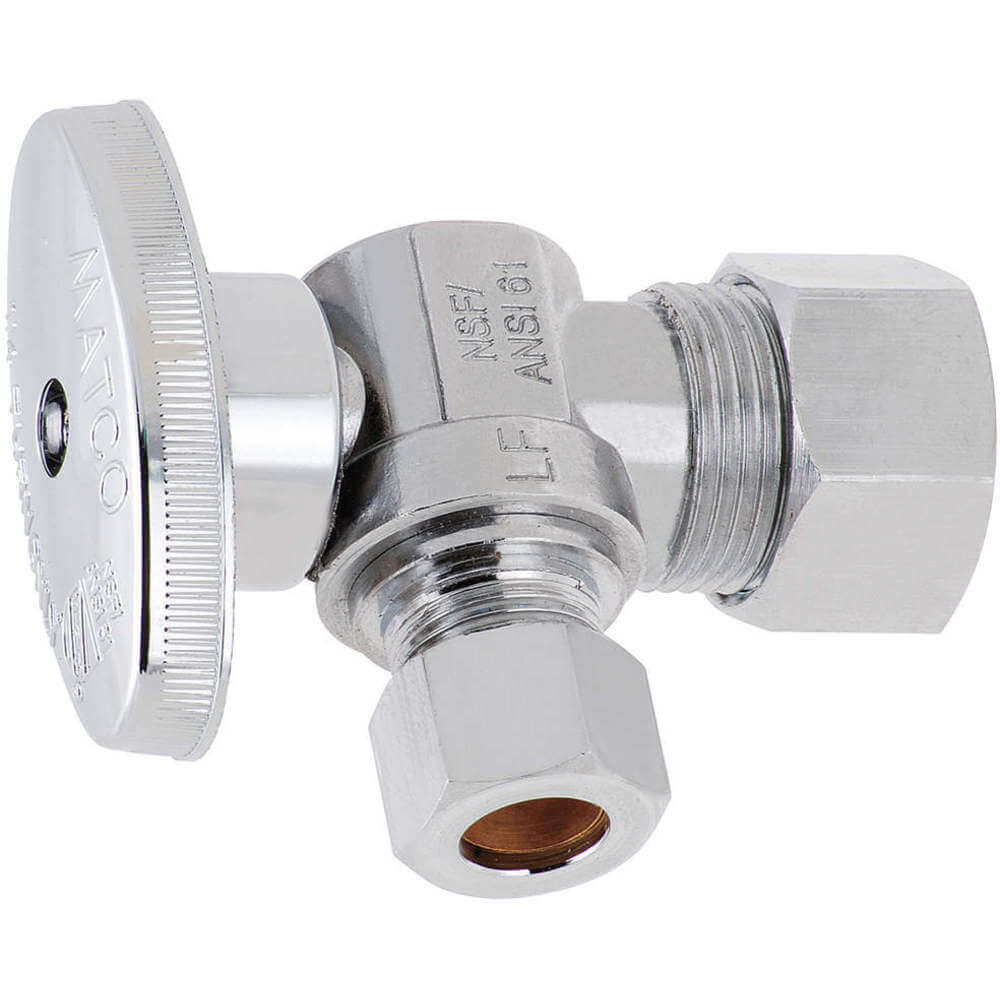

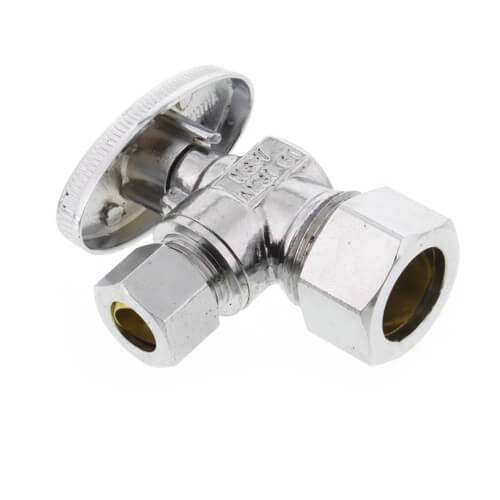

The MATCO-NORCA 26-1019LF is a 5/8" OD Compression x 3/8" OD Compression 1/4" Turn Angle Oval Handle Supply Valve. Constructed from brass with a chrome-plated finish. This lead-free valve is suitable for various plumbing applications. It features a 5/8" OD compression inlet and a 3/8" OD compression outlet.

• Lead-Free
• 1/4 Turn Angle Supply Valve
• 5/8" OD compression inlet and a 3/8" OD compression outlet

Product Highlights

Chrome-plated lead-free brass construction ensures durability and compliance with safety standards. Suitable for plumbing setups with a maximum pressure rating of 125 PSI and a temperature range of 32°F to 160°F.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 26-1019LF
• Country of Origin: ID

Technical Specifications

• Material: Brass
• Finish: Chrome Plated
• Size: 5/8" x 3/8"
• Inlet Size: 5/8"
• Outlet Size: 3/8"
• Inlet Type: Compression
• Outlet Type: Compression
• Type: 1/4 Turn
• Valve Type: Angle Supply Stop Valve
• Lead Free: Yes
• Temp. Rating: 32° F - 160° F
• Pressure Rating: 125 PSI
• Brand: Matco Norca
• MPN: 26-1019LF
• UPC: Does not apply
• Condition: New
• Color Finish Category: Chromes
• Color Finish Name: Chrome
• End Connection 1: Compression
• End Connection 2: Compression
• End Connections: Compression
• Handle Material: Zinc Alloy
• Handle Type: Lever
• Height: 2.3 in
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Number of Handles: Single Handle
• Pressure - High: 125
• Valve Body Material: Chrome Plated Brass
• Valve Body Style: Angle
• Valve Size: 5/8 in x 3/8 in
• Manufacturer: Matco-Norca
• Item: Quarter-Turn Supply Stop
• Body Material: Brass
• Body Style: Angle
• Connection - Side 2: 3/8"
• Connection Gender - Side 1: Female
• Connection Gender/type - Side 1: Compression
• Connection Gender/type - Side 2: Compression
• Connection Size - Side 1: 5/8"
• Connection Size - Side 2: 3/8"
• Connection Type - Side 2: Compression
• Connection-side 1 Type: Compression
• Connection-side 1: 5/8"
• Connection Type-side 1: Compression
• Handle Operation: 1/4 Turn
• Max. Media Temperature: 160°F
• Max. Operating Pressure: 125 psi
• Max. Working Pressure: 125 psi
• Media Temp. Range: 32°F to 160°F
• Min. Media Temperature: 32°F
• Overall Length: 2.3"
• Standards: NSF, UPC
• Stem Material: Brass
• Product Type: Item
