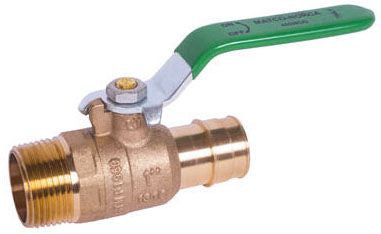

Matco-norca 22909 Ball Valve 1/2 in Mnpt X Pex Full Port

Product Description

The MATCO-NORCA 22909 is a full-port ball valve designed for 1/2-inch MNPT to 1/2-inch PEX connections using the cold expansion method per ASTM F1960. Built lead free to meet current potable water regulations, this valve delivers unrestricted flow through its full-port design, minimizing pressure drop across the connection point. It is suited for residential and light commercial plumbing systems where PEX piping is installed and a reliable isolation point is required. Licensed plumbers and pipefitters are the primary installers of this valve type.

This valve is used in PEX-based hydronic and domestic water distribution systems. The cold expansion F1960 connection method requires an expansion tool to flare the PEX tubing before seating the fitting ring, making it compatible with F1960-compliant PEX-A tubing and expansion rings. Typical applications include branch isolation, fixture shutoffs, and system zoning in new construction or retrofit plumbing projects where lead-free compliance is required by code.

Key Features

• Lead-free construction meets Safe Drinking Water Act requirements for potable water systems
• Full-port ball design allows unrestricted flow with minimal pressure drop
• Cold expansion F1960 PEX connection eliminates the need for solder, crimps, or clamps on the PEX side
• 1/2-inch MNPT inlet allows direct threaded connection to standard pipe fittings and manifolds
• Isolation-capable ball valve provides positive shutoff for service and maintenance

Compatibility

Designed for use with F1960 cold expansion PEX-A tubing and compatible expansion rings at 1/2-inch diameter. The MNPT end threads to standard 1/2-inch female NPT fittings, manifolds, and valves.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC. Shut off the water supply and relieve system pressure before installing or removing this valve. The PEX side requires an F1960-compatible expansion tool and the correct-size expansion ring before inserting the fitting. Do not use thread sealant compounds that are incompatible with lead-free brass fittings on the MNPT connection.

Technical Specifications

• Size: 1/2 inch
• Connection Type: 1/2 inch MNPT x 1/2 inch PEX Cold Expansion (F1960)
• Port: Full Port
• Lead Free: Yes

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 22909
